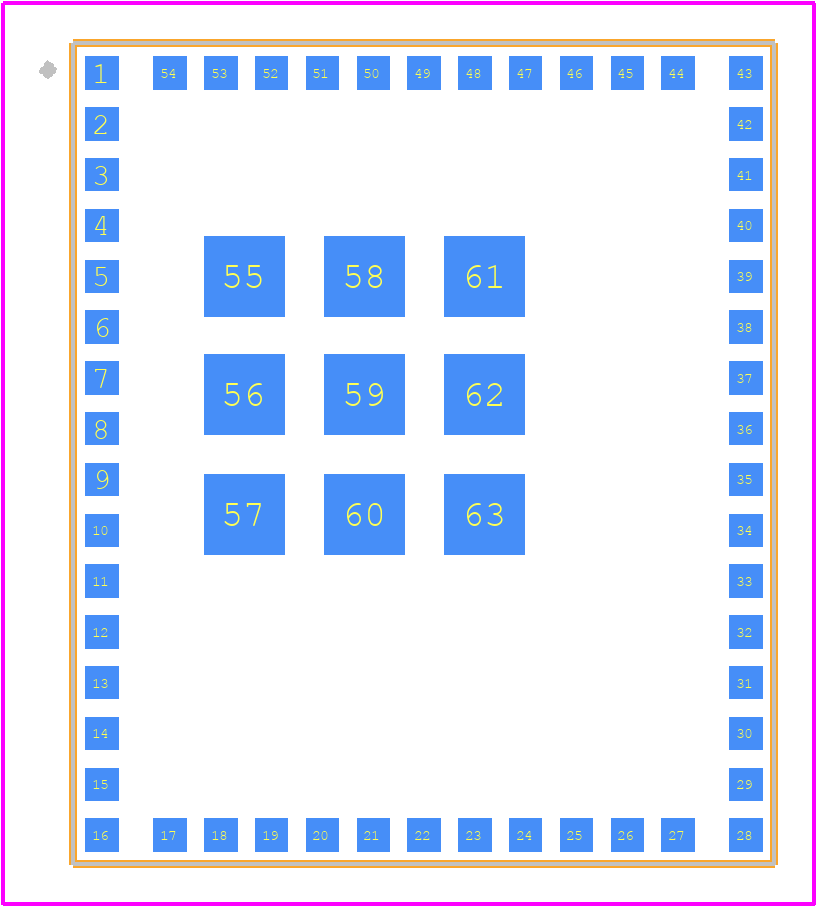

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC3200MODR1M2AMOBR by Texas Instruments
Results Overview of CC3200MODR1M2AMOBR by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
CC3200MODR1M2AMOBR Information
CC3200MODR1M2AMOBR by Texas Instruments is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CC3200MODR1M2AMOBR | Texas Instruments | SimpleLink™ Wi-Fi® and Internet-of-Things Module Solution, a Single-Chip Wireless MCU 63-QFM -20 to 70 |
Price & Stock for CC3200MODR1M2AMOBR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-42325-1-ND
|
DigiKey | IC RF TXRX+MCU WIFI 63QFM Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1204 In Stock |
|
$13.4850 / $22.2200 | Buy Now |
|
|
Quest Components | RISC MICROCONTROLLER, CMOS | 3 |
|
$13.5000 / $18.0000 | Buy Now |
|
|
Vyrian | Peripheral ICs | 2609 |
|
RFQ |
Part Details for CC3200MODR1M2AMOBR
CC3200MODR1M2AMOBR CAD Models
CC3200MODR1M2AMOBR Part Data Attributes
|
|
CC3200MODR1M2AMOBR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CC3200MODR1M2AMOBR
Texas Instruments
SimpleLink™ 32-bit Arm Cortex-M4 Wi-Fi® and Internet-of-Things wireless module 63-QFM -20 to 70
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | QFM-63 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8473.30.11.80 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Bus Compatibility | I2C; SPI; UART | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| JESD-30 Code | R-XBCC-N63 | |
| JESD-609 Code | e4 | |
| Length | 20.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 25 | |
| Number of Terminals | 63 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PWM Channels | NO | |
| Package Body Material | UNSPECIFIED | |
| Package Code | BCC | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 2.45 mm | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 2.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17.5 mm | |
| uPs/uCs/Peripheral ICs Type | RFSoC |
CC3200MODR1M2AMOBR Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the CC3200MODR1M2AMOBR is -40°C to 85°C.
-
The CC3200MODR1M2AMOBR has an internal Wi-Fi antenna, but you can also use an external antenna. For external antenna configuration, refer to the CC3200MODR1M2AMOBR user's guide and the antenna datasheet.
-
The maximum current consumption of the CC3200MODR1M2AMOBR is approximately 350mA during Wi-Fi transmission and 150mA during Wi-Fi reception.
-
Yes, the CC3200MODR1M2AMOBR can be used with non-TI microcontrollers, but you may need to develop custom firmware and drivers to interface with the module.
-
Firmware updates can be done using the TI's UniFlash tool or the CC3200MODR1M2AMOBR's serial interface. Refer to the CC3200MODR1M2AMOBR user's guide for detailed instructions.
