CC3-4805SR-E Information
CC3-4805SR-E by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CC3-4805SR-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-3284-ND
|
DigiKey | DC DC CONVERTER 5V 3W Min Qty: 1 Lead time: 6 Weeks Container: Tray |
32 In Stock |
|
$10.6300 / $12.4200 | Buy Now |
|
DISTI #
967-CC3-4805SR-E
|
Mouser Electronics | Isolated DC/DC Converters - SMD 3W 5V 0.6A RoHS: Compliant | 10 |
|
$10.6300 / $12.4200 | Buy Now |
|
DISTI #
70562778
|
RS | Power Supply, 3W3W3675VDCDCDC, Surface Mount, Input 24VDC, Output 5V 0.6A,3W Min Qty: 10 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$13.2300 / $14.0700 | RFQ |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 3W - Vin: 48V - Vout: 5V - SMD DIP Package RoHS: Compliant | 0 |
|
$10.6300 / $12.4200 | Buy Now |
|
|
Quest Components | DC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 3W, HYBRID | 10 |
|
$11.9588 / $15.9450 | Buy Now |
|
DISTI #
000000000005398322
|
Sager | Isolated DC/DC Converters - SMD 3W 5V 0.6A Min Qty: 1 | 0 |
|
$10.6300 / $12.4200 | Buy Now |
Part Details for CC3-4805SR-E

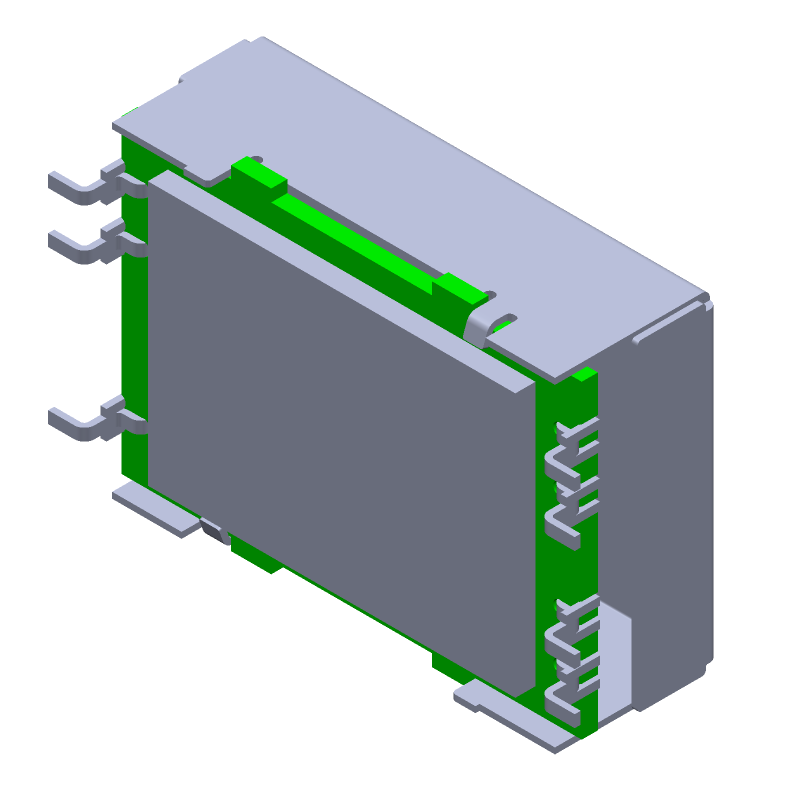

CC3-4805SR-E CAD Models
CC3-4805SR-E Part Data Attributes
|
|
CC3-4805SR-E
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CC3-4805SR-E
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module, 1 Output, 3W, Hybrid, SMD-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | SMD-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 76 V | |
| Input Voltage-Min | 36 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-MDMA-G7 | |
| Length | 22.86 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 6 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | METAL | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 8.8 mm | |
| Surface Mount | YES | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 3 W | |
| Trim/Adjustable Output | YES | |
| Width | 16.6 mm |
