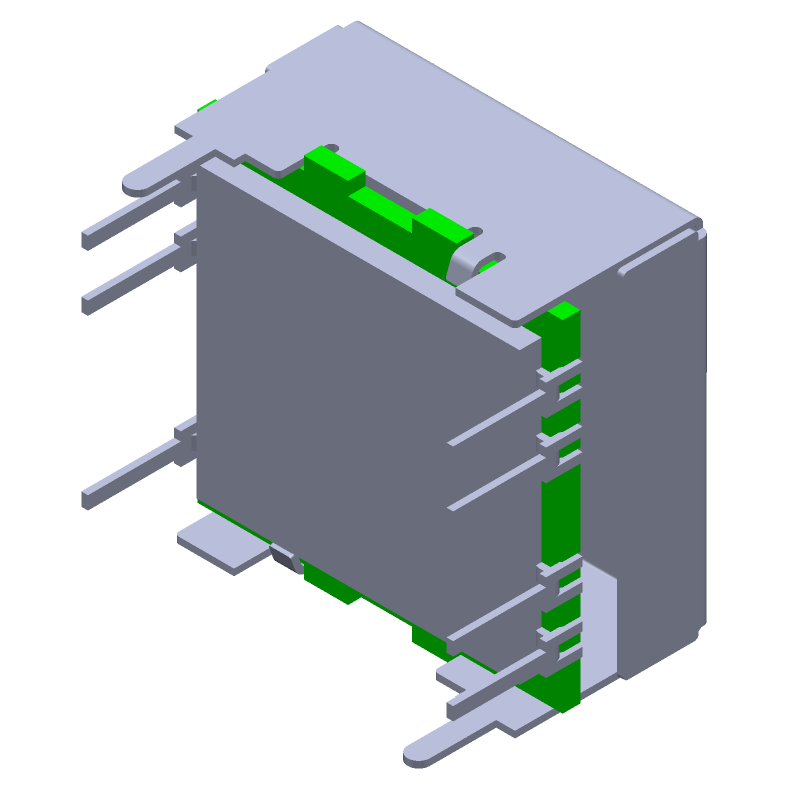

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC1R5-1212SF-E by TDK-Lambda Corporation
Results Overview of CC1R5-1212SF-E by TDK-Lambda Corporation
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CC1R5-1212SF-E Information
CC1R5-1212SF-E by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CC1R5-1212SF-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-2455-ND
|
DigiKey | DC DC CONVERTER 12-15V 1W Min Qty: 1 Lead time: 6 Weeks Container: Tray |
8 In Stock |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
967-CC1R5-1212SF-E
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1.5W 12V 0.125A RoHS: Compliant | 10 |
|
$9.1800 / $10.7500 | Buy Now |
|
DISTI #
70177143
|
RS | DC-DC Converter, Out 12VDC, In 12VDC, Thru-Hole, Open-Frame, Commercial, 1.5W Min Qty: 10 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Bulk | 0 |
|
$10.5300 / $10.8600 | RFQ |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 1.5W - Vin: 12V - Vout: 12 or 15V - Thru-Hole DIP Package RoHS: Compliant | 0 |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
74507686
|
Verical | Module DC-DC 12VIN 1-OUT 12V/15V 0.125A 1.5W 7-Pin PDIP Min Qty: 9 Package Multiple: 1 | Americas - 181 |
|
$8.3944 | Buy Now |
|
DISTI #
30609602
|
Verical | Module DC-DC 12VIN 1-OUT 12V/15V 0.125A 1.5W 7-Pin PDIP Min Qty: 6 Package Multiple: 1 | Americas - 179 |
|
$8.0100 / $9.8900 | Buy Now |
|
|
Quest Components | 144 |
|
$10.3215 / $13.2705 | Buy Now | |
|
DISTI #
CC1R5-1212SF-E
|
TME | Converter: DC/DC, 1.5W, Uin: 12VDC, Uout: 12VDC, Iout: 125mA, DIP7 Min Qty: 1 | 0 |
|
$9.3300 / $9.6500 | RFQ |
|
DISTI #
000000000005398273
|
Sager | Isolated DC/DC Converters - Through Hole 1.5W 12V 0.125A Min Qty: 1 | 0 |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
CC1R5-1212SF-E
|
Chip One Stop | Module DC-DC 12VIN 1-OUT 12V 0.125A 1.5W 7-Pin PDIP RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 179 |
|
$6.4200 / $9.8900 | Buy Now |
Part Details for CC1R5-1212SF-E
CC1R5-1212SF-E CAD Models
CC1R5-1212SF-E Part Data Attributes
|
|
CC1R5-1212SF-E
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CC1R5-1212SF-E
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid, DIP-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | DIP-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 9 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-MDMA-T7 | |
| Length | 16.51 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.125 A | |
| Output Voltage-Max | 15 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | METAL | |
| Package Code | DIP | |
| Package Equivalence Code | DIP7/8,1.4,200 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 5.08 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1.5 W | |
| Trim/Adjustable Output | YES | |
| Width | 16.6 mm |
CC1R5-1212SF-E Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the CC1R5-1212SF-E is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
-
Yes, the CC1R5-1212SF-E is designed to operate in a humid environment, but it's recommended to follow the manufacturer's guidelines for humidity and temperature to ensure reliable operation.
-
The recommended input voltage range for the CC1R5-1212SF-E is 10.2V to 13.8V, with a nominal input voltage of 12V.
-
To ensure EMC, follow the manufacturer's guidelines for PCB layout, grounding, and shielding. Additionally, use a metal enclosure and ensure proper cable routing to minimize electromagnetic interference.
-
The maximum output current for the CC1R5-1212SF-E is 5A, with a maximum power rating of 12W.
