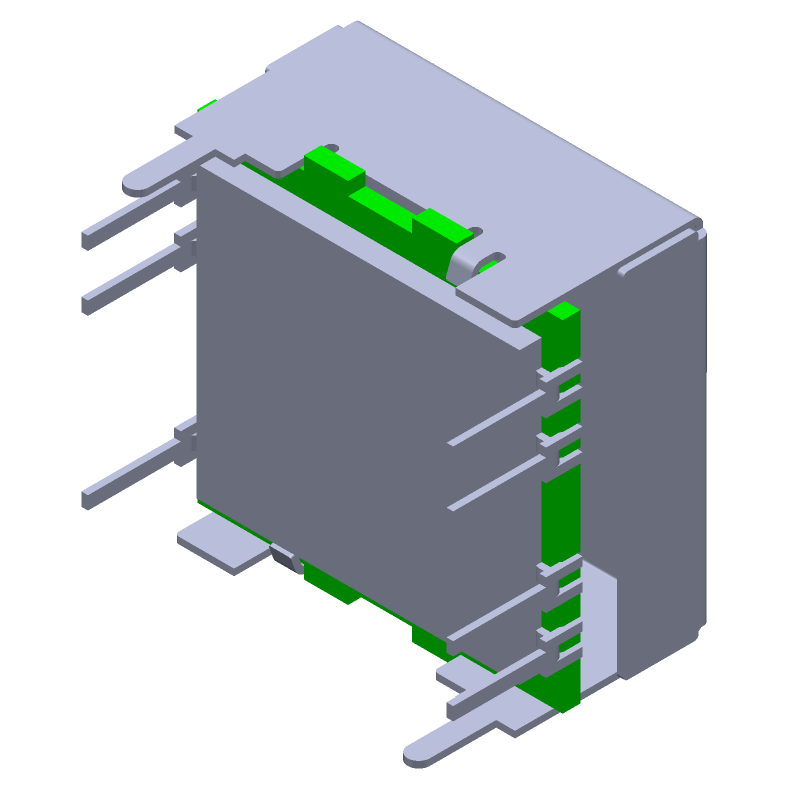

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC1R5-0505SF-E by TDK-Lambda Corporation
Results Overview of CC1R5-0505SF-E by TDK-Lambda Corporation
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Energy and Power Systems
Medical Imaging
Entertainment and Gaming
Robotics and Drones
CC1R5-0505SF-E Information
CC1R5-0505SF-E by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CC1R5-0505SF-E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
05M6910
|
Newark | Dc-Dc Converter, Iso Pol, 1 O/P, 1.5W, 300Ma, 5V, Power Supply Applications:Ite, Dc/Dc Converter Type:Dip, Input Ratio:2:1, Output Power Max:1.5W, No. Of Outputs:1 Output, Output Voltage - Output 1:5V, Output Voltage - Output 2:- Rohs Compliant: Yes |Tdk-Lambda CC1R5-0505SF-E RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$9.1400 / $10.2300 | Buy Now |
|
DISTI #
445-2446-ND
|
DigiKey | DC DC CONVERTER 5V 1W Min Qty: 1 Lead time: 6 Weeks Container: Tray |
398 In Stock |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
967-CC1R5-0505SF-E
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 1.5W 5V 0.3A RoHS: Compliant | 577 |
|
$9.1400 / $10.7500 | Buy Now |
|
DISTI #
E02:0323_11330016
|
Arrow Electronics | Module DC-DC 5VIN 1-OUT 5V 0.3A 1.5W 7-Pin PDIP Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2348 | Europe - 610 |
|
$10.9694 / $11.8536 | Buy Now |
|
DISTI #
70562708
|
RS | DC-DC Converter, PCB Mount, Input 5VDC, Output 5V 0.3A,1.5W Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$10.8600 | RFQ |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 1.5W - Vin: 5V - Vout: 5V - Thru-Hole DIP Package RoHS: Compliant |
165 In Stock |
|
$8.9600 / $11.9400 | Buy Now |
|
DISTI #
84985877
|
Verical | Module DC-DC 5VIN 1-OUT 5V 0.3A 1.5W 7-Pin PDIP Min Qty: 1 Package Multiple: 1 Date Code: 2348 | Americas - 610 |
|
$9.6000 | Buy Now |
|
DISTI #
30613873
|
Verical | Module DC-DC 5VIN 1-OUT 5V 0.3A 1.5W 7-Pin PDIP Min Qty: 7 Package Multiple: 1 | Americas - 549 |
|
$7.5500 / $10.3000 | Buy Now |
|
DISTI #
78063449
|
Verical | Module DC-DC 5VIN 1-OUT 5V 0.3A 1.5W 7-Pin PDIP Min Qty: 9 Package Multiple: 1 | Americas - 95 |
|
$8.3802 / $9.1542 | Buy Now |
|
|
Quest Components | 76 |
|
$10.9113 / $13.2705 | Buy Now |
Part Details for CC1R5-0505SF-E
CC1R5-0505SF-E CAD Models
CC1R5-0505SF-E Part Data Attributes
|
|
CC1R5-0505SF-E
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CC1R5-0505SF-E
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module, 1 Output, 1.5W, Hybrid, DIP-7
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | DIP-7 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 9 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-MDMA-T7 | |
| Length | 16.51 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 7 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.3 A | |
| Output Voltage-Max | 6 V | |
| Output Voltage-Min | 4.75 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | METAL | |
| Package Code | DIP | |
| Package Equivalence Code | DIP7/8,1.4,200 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 5.08 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1.5 W | |
| Trim/Adjustable Output | YES | |
| Width | 16.6 mm |
