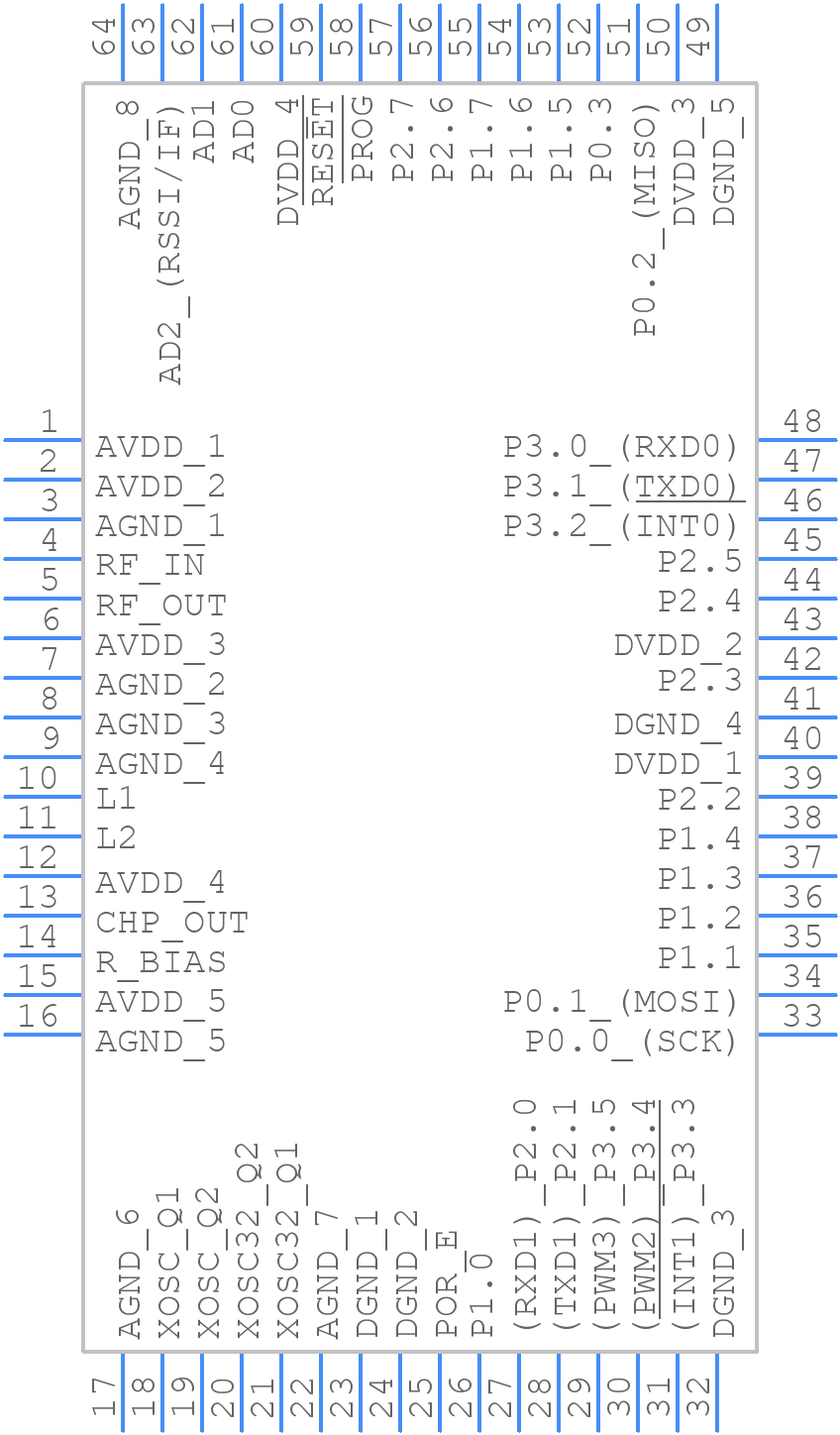

Part Symbol
-
Footprint
-

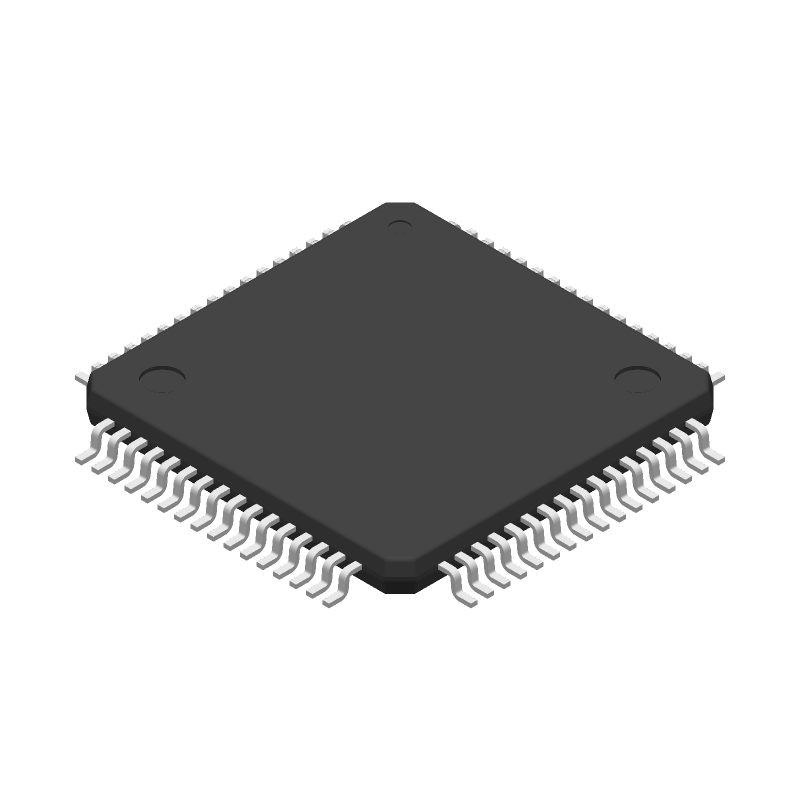

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC1010PAG by Texas Instruments
Results Overview of CC1010PAG by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CC1010PAG Information
CC1010PAG by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for CC1010PAG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CC1010PAG-ND
|
DigiKey | IC RF TXRX+MCU ISM<1GHZ 64TQFP Min Qty: 18 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
175 In Stock |
|
$16.7900 | Buy Now |
|
DISTI #
296-19459-ND
|
DigiKey | IC RF TXRX+MCU ISM<1GHZ 64TQFP Min Qty: 18 Lead time: 18 Weeks Container: Tray | Limited Supply - Call |
|
$21.2826 | Buy Now |
|
DISTI #
839-CC1010R
|
Mouser Electronics | RF Transceiver 300-1000MHz LW PWR T RANSCEIVER A 839-CC1010T/R-R RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
86276461
|
Verical | RF Transceiver FSK 3.3V 64-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 80 |
|
$20.1750 | Buy Now |
|
DISTI #
86276888
|
Verical | RF Transceiver FSK 3.3V 64-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1301 | Americas - 52 |
|
$20.1750 | Buy Now |
|
DISTI #
86277012
|
Verical | RF Transceiver FSK 3.3V 64-Pin TQFP Tray RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1001 | Americas - 32 |
|
$20.1750 | Buy Now |
|
|
Rochester Electronics | CC1010 Integrated 300-1000 MHz RF Transceiver and 8051 CPU Microcontroller RoHS: Compliant Status: Not Recommended for New Designs Min Qty: 1 | 175 |
|
$12.9100 / $16.1400 | Buy Now |
|
|
Win Source Electronics | IC RF TXRX+MCU ISM<1GHZ 64TQFP | 2000 |
|
$18.7688 / $28.1531 | Buy Now |
Part Details for CC1010PAG
CC1010PAG CAD Models
CC1010PAG Part Data Attributes
|
|
CC1010PAG
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CC1010PAG
Texas Instruments
Integrated 300-1000 MHz RF transceiver and microcontroller 64-TQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | ROHS COMPLIANT, TQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 8 | |
| CPU Family | 8051 | |
| Clock Frequency-Max | 24 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 26 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP64,.47SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 2048 | |
| ROM (words) | 32768 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 24 MHz | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for CC1010PAG
This table gives cross-reference parts and alternative options found for CC1010PAG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CC1010PAG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CC1010PAGR | Texas Instruments | Check for Price | Integrated 300-1000 MHz RF transceiver and microcontroller 64-TQFP -40 to 85 | CC1010PAG vs CC1010PAGR |
| CC1010-STY1 | Texas Instruments | Check for Price | IC 8-BIT, FLASH, 24 MHz, MICROCONTROLLER, PQFP64, TQFP-64, Microcontroller | CC1010PAG vs CC1010-STY1 |
CC1010PAG Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the CC1010PAG application note (SWRA095) which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The CC1010PAG has multiple power modes, including sleep mode, idle mode, and transmit mode. To configure for optimal power consumption, use the TI's SmartRF Studio software to adjust the transmit power, data rate, and sleep mode settings based on your application's requirements.
-
The maximum transmission distance of CC1010PAG depends on the environment, antenna design, and transmit power. In ideal conditions, the CC1010PAG can achieve a transmission distance of up to 1 km at 868 MHz and 300 m at 2.4 GHz. However, actual range may vary depending on the specific application and environment.
-
The CC1010PAG supports frequency hopping, which can be implemented using the device's built-in frequency synthesizer and the TI's SmartRF Studio software. The software provides a frequency hopping wizard that allows you to configure the hopping sequence, frequency range, and dwell time.
-
The CC1010PAG supports data rates up to 250 kbps at 868 MHz and 2 Mbps at 2.4 GHz. However, the actual data rate may vary depending on the modulation scheme, transmission power, and environment.
