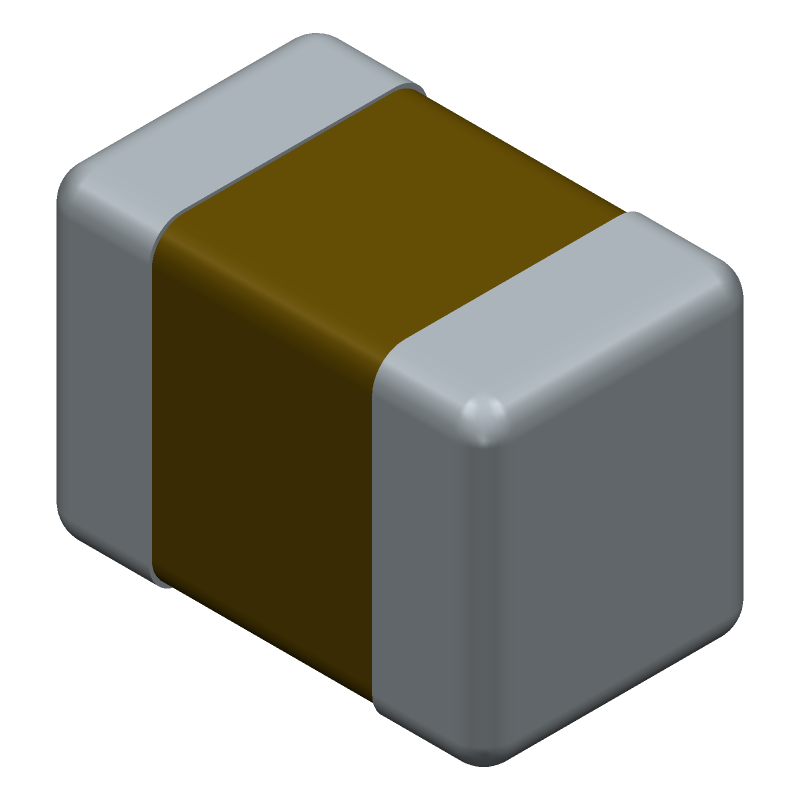

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CC0805KKX7R9BB474 by YAGEO Corporation
Results Overview of CC0805KKX7R9BB474 by YAGEO Corporation
- Distributor Offerings: (33 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CC0805KKX7R9BB474 Information
CC0805KKX7R9BB474 by YAGEO Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CC0805KKX7R9BB474
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40AJ6506
|
Newark | Cap, 0.47Uf, 50V, Mlcc, 0805 Rohs Compliant: Yes |Yageo CC0805KKX7R9BB474 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1749 |
|
$0.0550 / $0.1980 | Buy Now |
|
DISTI #
76T5761
|
Newark | Capacitor, 0.47Uf, X7R, 50V, 0805, Capacitance:0.47Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cc Series, Product Length:2.01Mm Rohs Compliant: Yes |Yageo CC0805KKX7R9BB474 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0330 / $0.0590 | Buy Now |
|
DISTI #
76AK4754
|
Newark | Capacitor, 0.47Uf, X7R, 50V, 0805, Capacitance:0.47Μf, Voltage(Dc):50V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:Cc Series, Product Length:2.01Mm Rohs Compliant: Yes |Yageo CC0805KKX7R9BB474 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0470 / $0.0520 | Buy Now |
|
DISTI #
311-1889-1-ND
|
DigiKey | CAP CER 0.47UF 50V X7R 0805 Min Qty: 1 Lead time: 20 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
14888 In Stock |
|
$0.0258 / $0.1900 | Buy Now |
|
DISTI #
CC0805KKX7R9BB474
|
Avnet Americas | - Tape and Reel (Alt: CC0805KKX7R9BB474) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 28 Weeks, 0 Days Container: Reel | 0 |
|
$0.0141 / $0.0150 | Buy Now |
|
DISTI #
603-CC805KKX7R9BB474
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 0.47uF X7R 0805 10% RoHS: Compliant | 8379 |
|
$0.0250 / $0.1900 | Buy Now |
|
DISTI #
E02:0323_00776814
|
Arrow Electronics | Cap Ceramic 0.47uF 50V X7R 10% Pad SMD 0805 125°C T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 23 Weeks Date Code: 2410 | Europe - 939000 |
|
$0.0167 | Buy Now |
|
DISTI #
V36:1790_07128971
|
Arrow Electronics | Cap Ceramic 0.47uF 50V X7R 10% Pad SMD 0805 125°C T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2351 | Americas - 489000 |
|
$0.0138 | Buy Now |
|
DISTI #
V72:2272_07128971
|
Arrow Electronics | Cap Ceramic 0.47uF 50V X7R 10% Pad SMD 0805 125°C T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2042 Container: Cut Strips | Americas - 630 |
|
$0.0150 / $0.0912 | Buy Now |
|
|
Future Electronics | 0805 0.47 uF 50 V ±10% Tolerance X7R SMT Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 23 Weeks Container: Reel | 147000Reel |
|
$0.0140 / $0.0151 | Buy Now |
Part Details for CC0805KKX7R9BB474
CC0805KKX7R9BB474 CAD Models
CC0805KKX7R9BB474 Part Data Attributes
|
|
CC0805KKX7R9BB474
YAGEO Corporation
Buy Now
Datasheet
|
Compare Parts:
CC0805KKX7R9BB474
YAGEO Corporation
Capacitor, Ceramic, Chip, General Purpose, 0.47uF, 50V, ±10%, X7R, 0805 (2012 mm), 0.053"T, -55º ~ +125ºC, 7" Reel/Plastic Tape
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | YAGEO CORP | |
| Part Package Code | 0805 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 28 Weeks | |
| Samacsys Manufacturer | YAGEO | |
| Capacitance | 0.47 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.25 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, BLISTER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
CC0805KKX7R9BB474 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for CC0805KKX7R9BB474 is 250°C for 1-2 seconds, with a peak temperature of 260°C for 3-5 seconds. However, it's recommended to consult the YAGEO application note for specific soldering guidelines.
-
Yes, CC0805KKX7R9BB474 is compatible with lead-free soldering processes. YAGEO Corporation ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
-
The MSL of CC0805KKX7R9BB474 is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
-
Yes, CC0805KKX7R9BB474 is suitable for high-frequency applications up to 1 GHz. However, it's recommended to consult the YAGEO application note for specific guidance on high-frequency usage.
-
The operating temperature range of CC0805KKX7R9BB474 is -55°C to 125°C. However, the component's electrical characteristics may vary outside the recommended operating temperature range.
