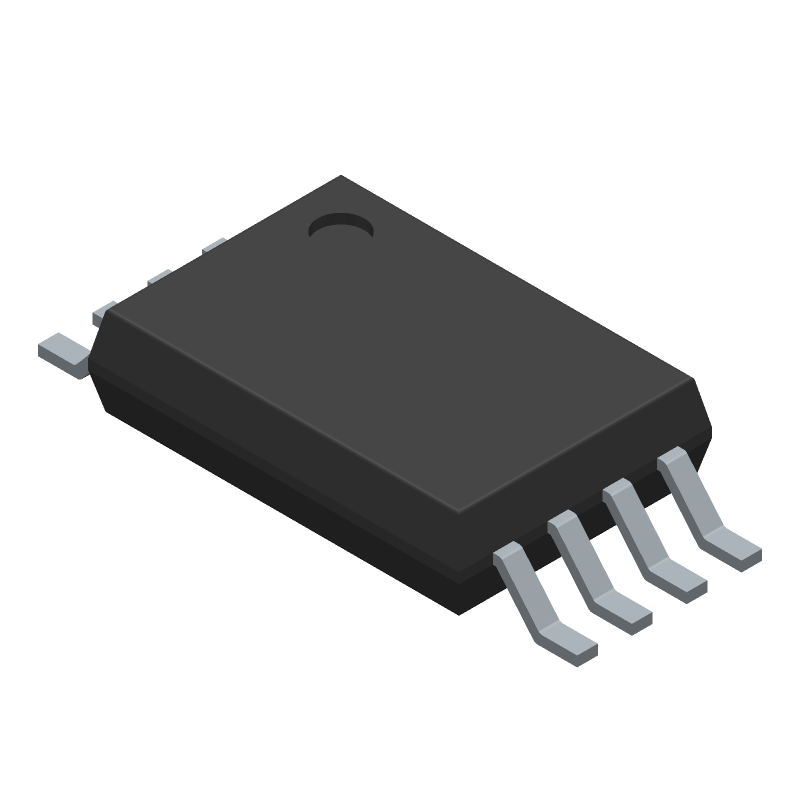

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CAT24C64YI-GT3 by onsemi
Results Overview of CAT24C64YI-GT3 by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
CAT24C64YI-GT3 Information
CAT24C64YI-GT3 by onsemi is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for CAT24C64YI-GT3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
08R5418
|
Newark | Serial Eeprom, 64Kbit, 400Khz, Tssop-8, Memory Configuration:8K X 8Bit, Interfaces:I2C, Clock Frequency Max:1Mhz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.7V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mountrohs Compliant: Yes |Onsemi CAT24C64YI-GT3 RoHS: Compliant Min Qty: 6000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.2850 | Buy Now |
|
DISTI #
06R0575
|
Newark | 64-Kb I2C Serial Eeprom Memory/ Reel Rohs Compliant: Yes |Onsemi CAT24C64YI-GT3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2230 / $0.2900 | Buy Now |
|
DISTI #
CAT24C64YI-GT3OSCT-ND
|
DigiKey | IC EEPROM 64KBIT I2C 1MHZ 8TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3353 In Stock |
|
$0.2622 / $0.3500 | Buy Now |
|
DISTI #
CAT24C64YI-GT3
|
Avnet Americas | EEPROM Serial-I2C 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R - Tape and Reel (Alt: CAT24C64YI-GT3) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1277 / $0.1397 | Buy Now |
|
DISTI #
698-CAT24C64YI-GT3
|
Mouser Electronics | EEPROM 64K-Bit I2C Serial EEPROM RoHS: Compliant | 38679 |
|
$0.2580 / $0.4200 | Buy Now |
|
|
Onlinecomponents.com | EEPROM Serial 64-Kb I2C RoHS: Compliant |
6000 In Stock |
|
$0.2479 / $0.2683 | Buy Now |
|
DISTI #
87891993
|
Verical | EEPROM Serial-2Wire 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 159 Package Multiple: 1 Date Code: 2229 | Americas - 6860 |
|
$0.2500 / $0.2970 | Buy Now |
|
DISTI #
83641094
|
Verical | EEPROM Serial-2Wire 64K-bit 8K x 8 1.8V/2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2428 | Americas - 6000 |
|
$0.3240 / $0.3488 | Buy Now |
|
|
Bristol Electronics | 238 |
|
RFQ | ||
|
|
Quest Components | 8K X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8 | 97 |
|
$0.3204 / $0.4806 | Buy Now |
Part Details for CAT24C64YI-GT3
CAT24C64YI-GT3 CAD Models
CAT24C64YI-GT3 Part Data Attributes
|
|
CAT24C64YI-GT3
onsemi
Buy Now
Datasheet
|
Compare Parts:
CAT24C64YI-GT3
onsemi
EEPROM Serial 64-Kb I2C, TSSOP8, 4.4x3, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP8, 4.4x3 | |
| Package Description | TSSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 948AL | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.71 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | 100 YEAR DATA RETENTION | |
| Clock Frequency-Max (fCLK) | 1 MHz | |
| Data Retention Time-Min | 100 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 65536 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 8192 words | |
| Number of Words Code | 8000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 8KX8 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000003 A | |
| Supply Current-Max | 0.002 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
Alternate Parts for CAT24C64YI-GT3
This table gives cross-reference parts and alternative options found for CAT24C64YI-GT3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CAT24C64YI-GT3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CAT24C64YI-G | onsemi | Check for Price | I2C/2-WIRE SERIAL EEPROM | CAT24C64YI-GT3 vs CAT24C64YI-G |
| CAT24C64YI | onsemi | Check for Price | IC,SERIAL EEPROM,8KX8,CMOS,TSSOP,8PIN,PLASTIC | CAT24C64YI-GT3 vs CAT24C64YI |
| CAT24C64YE-G | onsemi | Check for Price | IC,SERIAL EEPROM,8KX8,CMOS,TSSOP,8PIN,PLASTIC | CAT24C64YI-GT3 vs CAT24C64YE-G |
CAT24C64YI-GT3 Frequently Asked Questions (FAQ)
-
The CAT24C64YI-GT3 has an endurance of 1 million write cycles, making it suitable for applications that require frequent data updates.
-
The CAT24C64YI-GT3 has built-in power-fail detection and write protection to prevent data corruption during power failures. It also has a built-in voltage regulator to ensure stable operation.
-
The typical current consumption of the CAT24C64YI-GT3 is 3mA during write operations and 1mA during read operations, making it suitable for battery-powered applications.
-
Yes, the CAT24C64YI-GT3 is compatible with both 5V and 3.3V systems, making it a versatile solution for a wide range of applications.
-
The CAT24C64YI-GT3 has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of environments.
