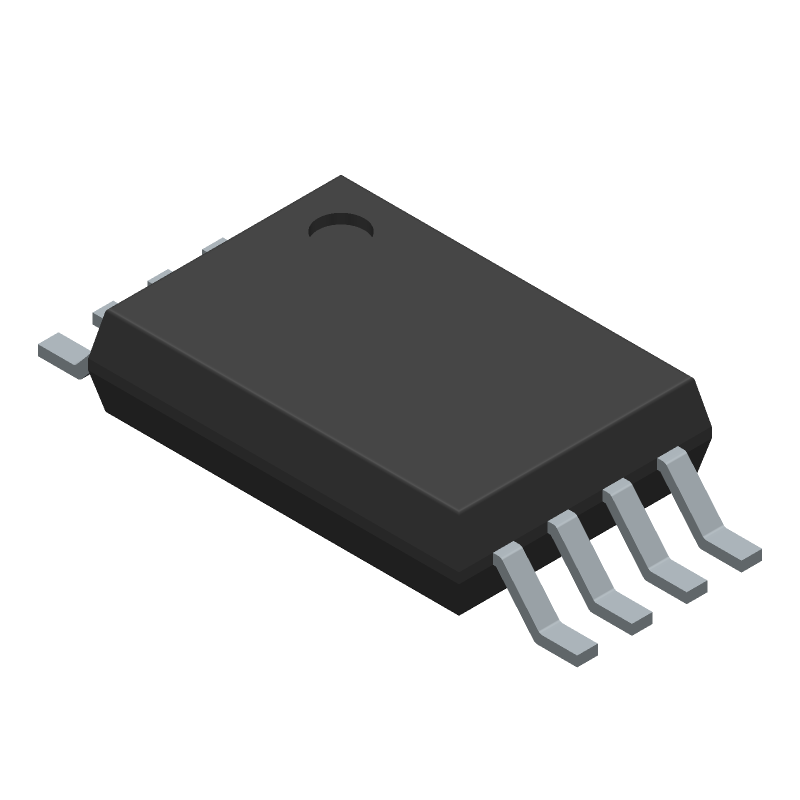

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CAT24C256YI-GT3 by onsemi
Results Overview of CAT24C256YI-GT3 by onsemi
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CAT24C256YI-GT3 Information
CAT24C256YI-GT3 by onsemi is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for CAT24C256YI-GT3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
42Y0142
|
Newark | Eeprom, 256Kbit, I2C, 1Mhz, Tssop-8, Memory Configuration:32K X 8Bit, Interfaces:I2C, Clock Frequency Max:400Khz, Ic Case/Package:Tssop, No. Of Pins:8Pins, Supply Voltage Min:1.8V, Supply Voltage Max:5.5V, Ic Mounting:Surface Mountrohs Compliant: Yes |Onsemi CAT24C256YI-GT3 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5032 |
|
$0.4120 / $0.4810 | Buy Now |
|
DISTI #
06R0557
|
Newark | 256-Kb I2C Serial Cmos Eeprom Memory/ Reel |Onsemi CAT24C256YI-GT3 RoHS: Not Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3080 / $0.4010 | Buy Now |
|
DISTI #
37AH9156
|
Newark | 256Kb I2C Ser Eeprom Rohs Compliant: Yes |Onsemi CAT24C256YI-GT3 RoHS: Compliant Min Qty: 3000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3080 / $0.4010 | Buy Now |
|
DISTI #
CAT24C256YI-GT3OSCT-ND
|
DigiKey | IC EEPROM 256KBIT I2C 8TSSOP Min Qty: 1 Lead time: 13 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
17363 In Stock |
|
$0.3525 / $0.4800 | Buy Now |
|
DISTI #
698-CAT24C256YI-GT3
|
Mouser Electronics | EEPROM 256K-Bit I2C Serial CMOS EEPROM RoHS: Compliant | 38534 |
|
$0.3420 / $0.4800 | Buy Now |
|
DISTI #
70300242
|
RS | CAT24C256YI-GT3 EEPROM Memory, 256kbit, 1.8 - 5.5 V 8-Pin TSSOP Min Qty: 10 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4900 / $0.5800 | RFQ |
|
|
Future Electronics | CAT24C256 Series 256 kbit (32 K x 8) 1.8 V I2C CMOS Serial EEPROM - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 6000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.1790 / $0.1870 | Buy Now |
|
|
Future Electronics | CAT24C256 Series 256 kbit (32 K x 8) 1.8 V I2C CMOS Serial EEPROM - TSSOP-8 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks Container: Reel | 0Reel |
|
$0.1790 / $0.1870 | Buy Now |
|
|
Onlinecomponents.com | EEPROM Serial 256-Kb I2C RoHS: Compliant |
6000 In Stock |
|
$0.3078 / $0.3463 | Buy Now |
|
DISTI #
84346662
|
Verical | EEPROM Serial-I2C 256K-bit 32K x 8 2.5V/3.3V/5V 8-Pin TSSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2432 | Americas - 6000 |
|
$0.4248 / $0.4502 | Buy Now |
Part Details for CAT24C256YI-GT3
CAT24C256YI-GT3 CAD Models
CAT24C256YI-GT3 Part Data Attributes
|
|
CAT24C256YI-GT3
onsemi
Buy Now
Datasheet
|
Compare Parts:
CAT24C256YI-GT3
onsemi
EEPROM Serial 256-Kb I2C, TSSOP8, 4.4x3, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TSSOP8, 4.4x3 | |
| Package Description | TSSOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 948AL | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.32.00.51 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | 100 YEAR DATA RETENTION | |
| Clock Frequency-Max (fCLK) | 0.4 MHz | |
| Data Retention Time-Min | 100 | |
| Endurance | 1000000 Write/Erase Cycles | |
| I2C Control Byte | 1010DDDR | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.4 mm | |
| Memory Density | 262144 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 8 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Words | 32768 words | |
| Number of Words Code | 32000 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 32KX8 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Serial Bus Type | I2C | |
| Standby Current-Max | 0.000001 A | |
| Supply Current-Max | 0.003 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 1.8 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3 mm | |
| Write Cycle Time-Max (tWC) | 5 ms | |
| Write Protection | HARDWARE |
Alternate Parts for CAT24C256YI-GT3
This table gives cross-reference parts and alternative options found for CAT24C256YI-GT3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CAT24C256YI-GT3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CAT24C256YE-GT3 | onsemi | Check for Price | 32KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.40 X 3 MM, HALOGEN FREE AND ROHS COMPLIANT, MO-153, TSSOP-8 | CAT24C256YI-GT3 vs CAT24C256YE-GT3 |
| CAT24C256YI | onsemi | Check for Price | IC,SERIAL EEPROM,32KX8,CMOS,TSSOP,8PIN,PLASTIC | CAT24C256YI-GT3 vs CAT24C256YI |
| CAT24C256YI-T2 | onsemi | Check for Price | 32KX8 I2C/2-WIRE SERIAL EEPROM, PDSO8, 4.4 MM, GREEN, MO-153, TSSOP-8 | CAT24C256YI-GT3 vs CAT24C256YI-T2 |
| CAT24C256YI-G | onsemi | Check for Price | I2C/2-WIRE SERIAL EEPROM | CAT24C256YI-GT3 vs CAT24C256YI-G |
CAT24C256YI-GT3 Frequently Asked Questions (FAQ)
-
The CAT24C256YI-GT3 has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
-
The CAT24C256YI-GT3 uses a page write buffer to handle page writes. The device can write up to 64 bytes of data in a single page write operation.
-
The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any attempt to write to the device will be ignored.
-
Yes, the CAT24C256YI-GT3 is a 5V-compatible device, but it can also operate at lower voltages down to 1.7V. However, the device's performance and reliability may be affected at lower voltages.
-
The CAT24C256YI-GT3 has a built-in power-on reset (POR) circuit that resets the device to a known state when power is applied. The POR circuit ensures that the device is in a valid state after power-up.
