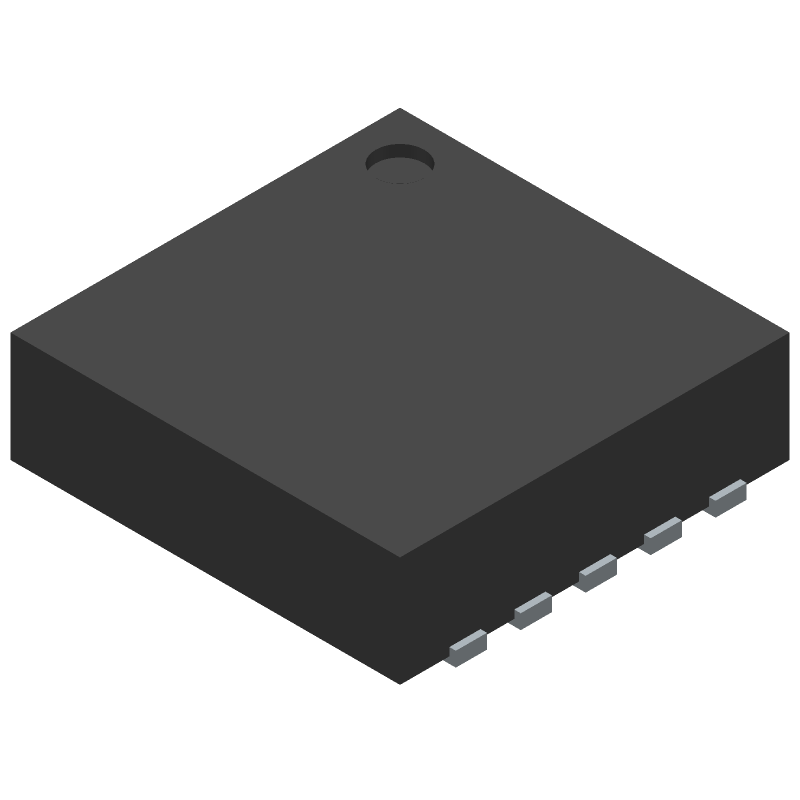

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CAP1106-1-AIA-TR by Microchip Technology Inc
Results Overview of CAP1106-1-AIA-TR by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
CAP1106-1-AIA-TR Information
CAP1106-1-AIA-TR by Microchip Technology Inc is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for CAP1106-1-AIA-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69W8197
|
Newark | Six Channel Capacitive Touch Sensor 10 Vdfn 3X3X0.9Mm T/R Rohs Compliant: Yes |Microchip CAP1106-1-AIA-TR RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.8380 | Buy Now |
|
DISTI #
CAP1106-1-AIA-TRCT-ND
|
DigiKey | IC TOUCH SENSOR 6CH 10VDFN Min Qty: 1 Lead time: 4 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6071 In Stock |
|
$0.7900 / $0.9500 | Buy Now |
|
DISTI #
CAP1106-1-AIA-TR
|
Avnet Americas | Sensor Controller Capacitive 6-CH I2C/SMBUS 10-Pin DFN EP T/R - Tape and Reel (Alt: CAP1106-1-AIA-TR) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$0.7956 / $0.8500 | Buy Now |
|
DISTI #
579-CAP1106-1-AIA-TR
|
Mouser Electronics | Capacitive Touch Sensors 6 Channel Capacitive Touch Sensor RoHS: Compliant | 2688 |
|
$0.7900 / $0.9500 | Buy Now |
|
DISTI #
V72:2272_06428890
|
Arrow Electronics | Capacitive Touch Screen 2-Wire 10-Pin DFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks Date Code: 2231 Container: Cut Strips | Americas - 3040 |
|
$0.8720 / $0.9758 | Buy Now |
|
DISTI #
CAP1106-1-AIA-TR
|
Microchip Technology Inc | 6 Channel Capacitive Touch Sensor, VDFN, Projected EOL: 2039-10-25 COO: China, Philippines ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Reel |
6 Alternates Available |
|
$0.6900 / $0.9500 | Buy Now |
|
DISTI #
70451703
|
RS | Six Channel Capacitive Touch Sensor10 VDFN 3x3x0.9mm T/R Min Qty: 5000 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$1.3200 | RFQ |
|
|
Onlinecomponents.com | Capacitive Touch Sensor Controller 10-Pin DFN - Tape&Reel RoHS: Compliant | 5000 Factory Stock |
|
$0.7450 / $2.0400 | Buy Now |
|
DISTI #
63477327
|
Verical | Capacitive Touch Screen 2-Wire 10-Pin DFN EP T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2231 | Americas - 3040 |
|
$0.8720 / $0.9758 | Buy Now |
|
|
NAC | Six Channel Capacitive Touch Sensor - Package: 10 VDFN 3x3x0.9mm T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | 0 |
|
$0.8500 / $1.0500 | Buy Now |
Part Details for CAP1106-1-AIA-TR
CAP1106-1-AIA-TR CAD Models
CAP1106-1-AIA-TR Part Data Attributes
|
|
CAP1106-1-AIA-TR
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
CAP1106-1-AIA-TR
Microchip Technology Inc
SPECIALTY ANALOG CIRCUIT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | 3 X 3 MM, ROHS COMPLIANT, DFN-10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PDSO-N10 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Number of Channels | 6 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC10,.12,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Width | 3 mm |
