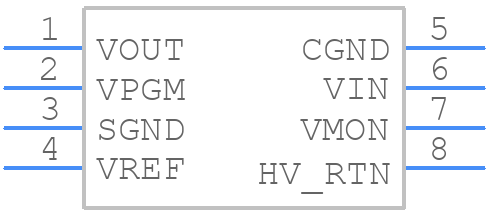

Part Symbol
-

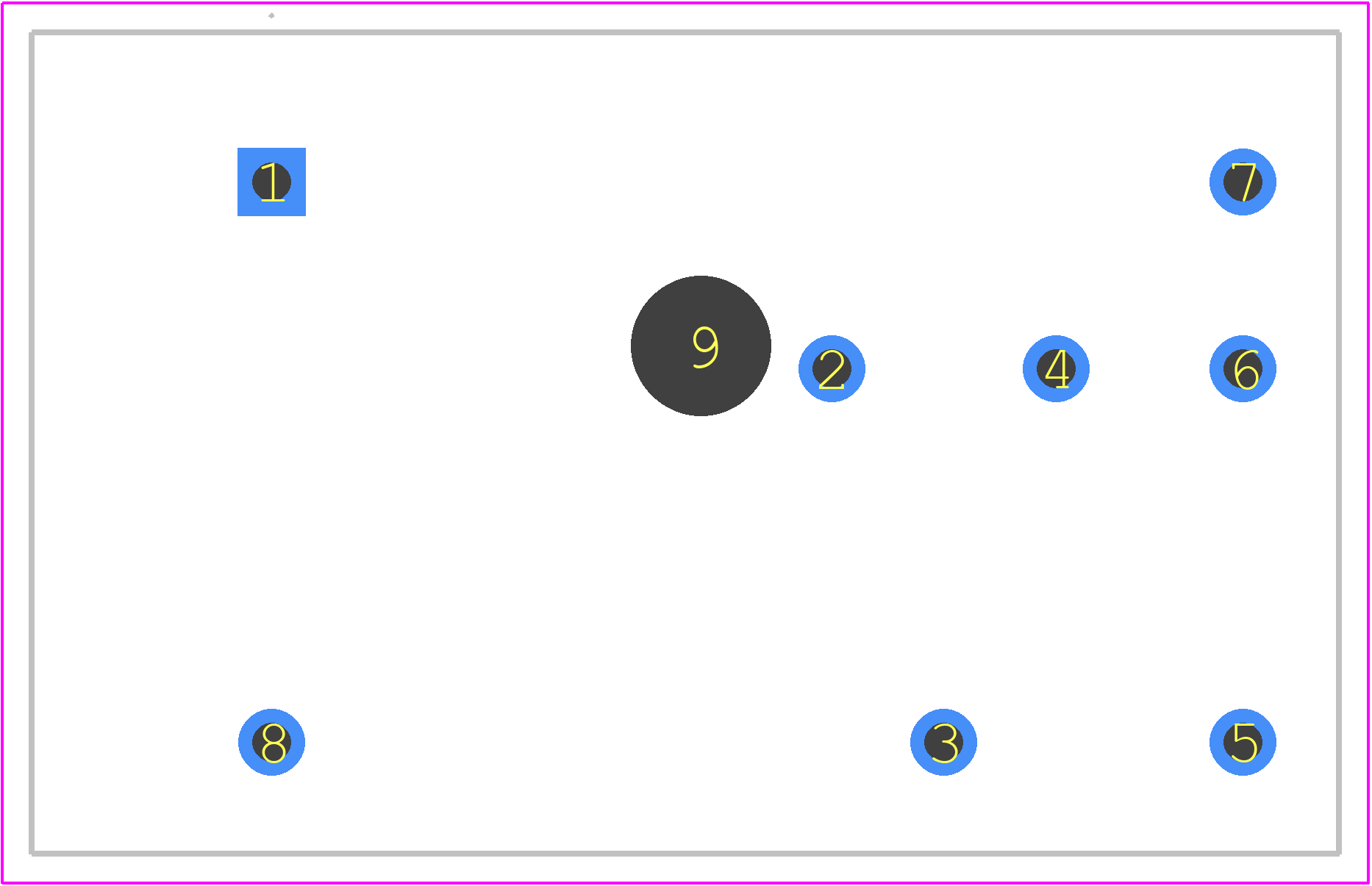

Footprint
-

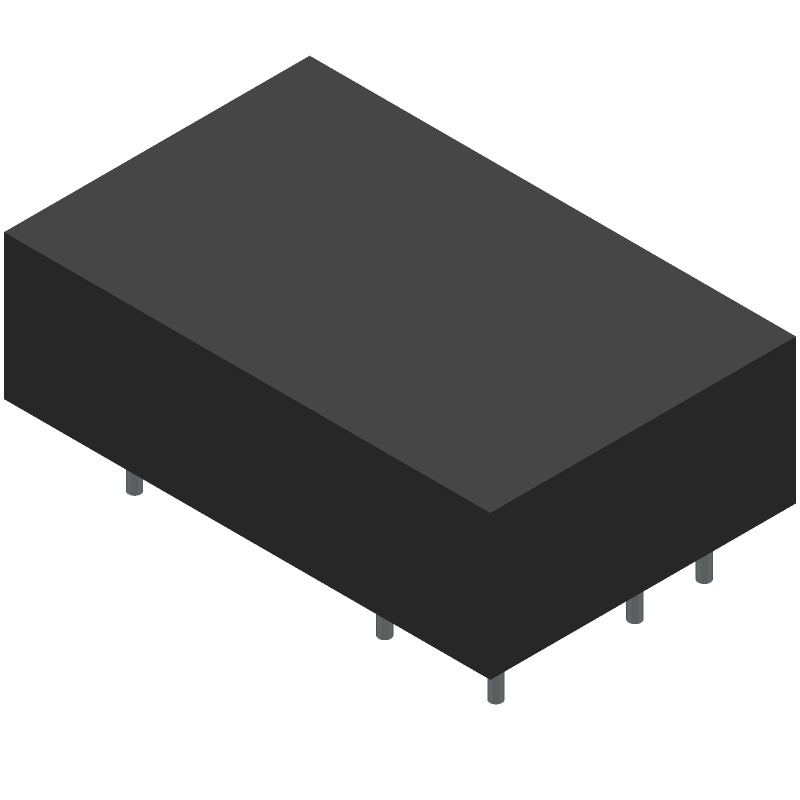

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CA10N by XP Power
Results Overview of CA10N by XP Power
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CA10N Information
CA10N by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CA10N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84Y5667
|
Newark | Dc-Dc Converter, 1 O/P, -1Kv, 1000Ua, Product Range:Ca Series, Output Power Max:1W, Output Voltage Min:0V, Output Voltage Max:-1Kv, Output Current Max:1Ma, Polarity:Negative Output, Dc/Dc Converter Output Type:Fixed, Adjustable, Rohs Compliant: Yes |Xp Power CA10N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 10 |
|
$299.0800 / $326.8300 | Buy Now |
|
DISTI #
1470-3269-ND
|
DigiKey | DC DC CONVERTER -1000V 1W Min Qty: 1 Lead time: 14 Weeks Container: Box |
69 In Stock |
|
$259.0508 / $327.3700 | Buy Now |
|
DISTI #
209-CA10N
|
Mouser Electronics | Non-Isolated DC/DC Converters SINGLE O/P, DC-HV DC PCB MOUNT, 1W,-1kV RoHS: Compliant | 0 |
|
$267.6000 / $284.5800 | Order Now |
|
DISTI #
71928381
|
RS | DC-DC Converter, Thru Hole, DIP, 1W, -1000V@1mA, 11.5-15.5V In, CA Series Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$327.3400 / $363.7200 | RFQ |
|
DISTI #
CA10N
|
TME | Converter: DC/DC, 1W, Uin: 12VDC, Uout: 0÷-1kVDC, Iout: 1mA, THT, CA Min Qty: 1 | 0 |
|
$259.4300 / $328.8600 | RFQ |
|
DISTI #
CA10N
|
Avnet Abacus | High Voltage DCDC Converter Regulated Negative Output Programmable 1 W 1 mA Through Hole (Alt: CA10N) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days | Abacus - 45 |
|
Buy Now | |
|
|
Neutron USA | Non-Isolated DC/DC Converters SINGLE O/P, DC-HV DC PCB MOUNT, 1W,-1kV | 50 |
|
$628.5600 | Buy Now |
Part Details for CA10N
CA10N CAD Models
CA10N Part Data Attributes
|
|
CA10N
XP Power
Buy Now
Datasheet
|
Compare Parts:
CA10N
XP Power
Analog Circuit,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Package Description | PACKAGE-9 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | XP POWER | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 15.5 V | |
| Input Voltage-Min | 11.5 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | R-XXMA-P9 | |
| Length | 44.45 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Voltage-Max | -1250 V | |
| Output Voltage-Min | ||
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 13.21 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | YES | |
| Width | 28.19 mm |
