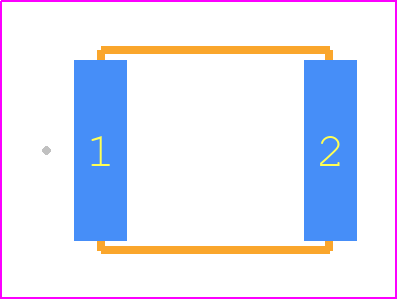

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C5750X5R1H106K230KA by TDK Corporation
Results Overview of C5750X5R1H106K230KA by TDK Corporation
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C5750X5R1H106K230KA Information
C5750X5R1H106K230KA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C5750X5R1H106K230KA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13T1127
|
Newark | Cap, 10Uf, 50V, Mlcc, 2220, Capacitance:10Μf, Voltage(Dc):50V, Capacitor Case/Package:2220 [5750 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:C Series, Product Length:5.7Mm, Product Width:5Mm Rohs Compliant: Yes |Tdk C5750X5R1H106K230KA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 9500 |
|
$0.9690 / $1.9000 | Buy Now |
|
DISTI #
03AC2470
|
Newark | Cap, 10Μf, 50V, 10, X5R, 2220, Reel Rohs Compliant: Yes |Tdk C5750X5R1H106K230KA RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel | 500 |
|
$0.6610 / $0.7170 | Buy Now |
|
DISTI #
445-3497-1-ND
|
DigiKey | CAP CER 10UF 50V X5R 2220 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
25594 In Stock |
|
$0.6401 / $1.7600 | Buy Now |
|
DISTI #
C5750X5R1H106K230KA
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 50 V, ? 10%, X5R, 2220 [5750 Metric] - Tape and Reel (Alt: C5750X5R1H106K230KA) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel | 500 |
|
$0.5028 / $0.5346 | Buy Now |
|
DISTI #
13T1127
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 50 V, ? 10%, X5R, 2220 [5750 Metric] - Product that comes on tape, but is not reeled (Alt: 13T1127) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 32 Weeks, 4 Days Container: Ammo Pack | 2000 Partner Stock |
|
$0.9040 / $1.7500 | Buy Now |
|
DISTI #
C5750X5R1H106K230KA
|
Avnet Americas | Multilayer Ceramic Capacitor, 10 uF, 50 V, ? 10%, X5R, 2220 [5750 Metric] - Tape and Reel (Alt: C5750X5R1H106K230KA) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5596 / $0.6324 | Buy Now |
|
DISTI #
810-C5750X5R1H106K
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 2220 50V 10uF X5R 10% T: 2.3mm RoHS: Compliant | 4566 |
|
$0.6290 / $1.7600 | Buy Now |
|
DISTI #
E02:0323_06889208
|
Arrow Electronics | Cap Ceramic 10uF 50V X5R 10% Pad SMD 2220 85°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks Date Code: 2508 | Europe - 46500 |
|
$0.6044 / $0.7551 | Buy Now |
|
DISTI #
V72:2272_06582878
|
Arrow Electronics | Cap Ceramic 10uF 50V X5R 10% Pad SMD 2220 85°C T/R RoHS: Compliant Min Qty: 139 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2409 Container: Cut Strips | Americas - 710 |
|
$0.6107 / $0.7124 | Buy Now |
|
DISTI #
87764039
|
Verical | Cap Ceramic 10uF 50V X5R 10% Pad SMD 2220 85°C T/R RoHS: Compliant Min Qty: 500 Package Multiple: 500 | Americas - 46500 |
|
$0.6063 / $0.7575 | Buy Now |
Part Details for C5750X5R1H106K230KA
C5750X5R1H106K230KA CAD Models
C5750X5R1H106K230KA Part Data Attributes
|
|
C5750X5R1H106K230KA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C5750X5R1H106K230KA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X5R, 15% TC, 10uF, Surface Mount, 2220, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 32 Weeks, 4 Days | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 10 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2.3 mm | |
| JESD-609 Code | e3 | |
| Length | 5.7 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 2220 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X5R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 5 mm |
C5750X5R1H106K230KA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C5750X5R1H106K230KA is 260°C for 10 seconds or less, with a peak temperature of 240°C.
-
Yes, the C5750X5R1H106K230KA is designed to withstand high vibrations and is suitable for use in applications where vibration is a concern.
-
The maximum operating temperature range for the C5750X5R1H106K230KA is -55°C to 125°C.
-
Yes, the C5750X5R1H106K230KA is designed to operate in humid environments and meets the requirements of IEC 60384-14 for humidity resistance.
-
The recommended storage temperature range for the C5750X5R1H106K230KA is -40°C to 30°C, and the recommended storage humidity range is 20% to 80% RH.
