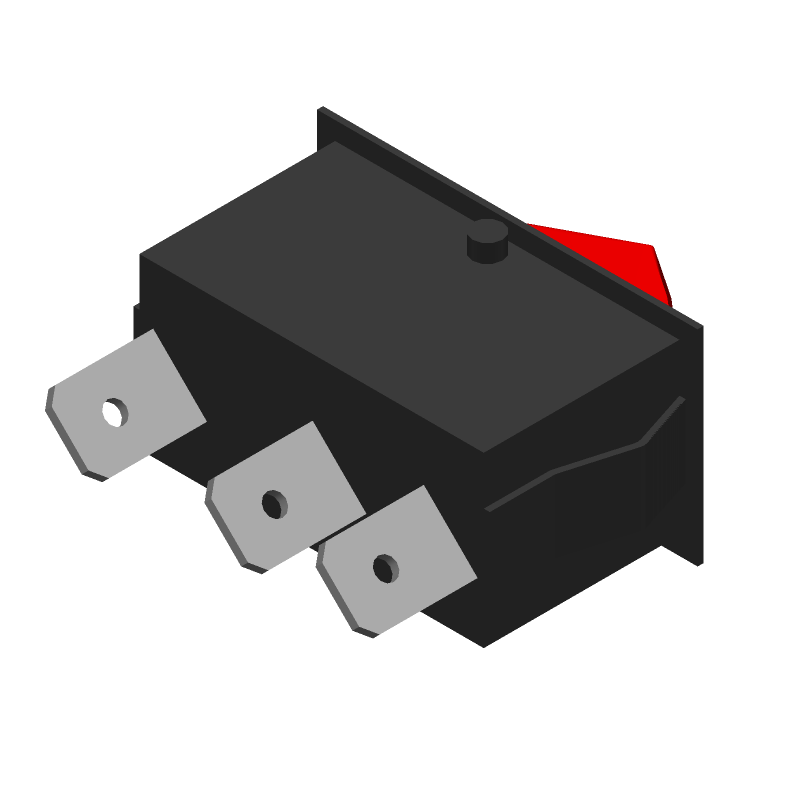

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C5503ARBR3 by Bulgin
Results Overview of C5503ARBR3 by Bulgin
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C5503ARBR3 Information
C5503ARBR3 by Bulgin is a Rocker Switch.
Rocker Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for C5503ARBR3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
C5503ARBR3-ND
|
DigiKey | SWITCH ROCKER SPST 16A 250V Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
239 In Stock |
|
$4.9173 / $7.6600 | Buy Now |
|
DISTI #
167-C5503ARBR3
|
Mouser Electronics | Rocker Switches SPST Rocker Switch, Lit 230V Red RoHS: Compliant | 288 |
|
$4.9100 / $7.5800 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$4.6500 / $6.7500 | Buy Now |
Part Details for C5503ARBR3
C5503ARBR3 CAD Models
C5503ARBR3 Part Data Attributes
|
|
C5503ARBR3
Bulgin
Buy Now
Datasheet
|
Compare Parts:
C5503ARBR3
Bulgin
Rocker Switch, SPST, Latched, Quick Connect Terminal, Softline Matt Type Actuator, Panel Mount, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BULGIN LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | Bulgin | |
| Actuator Type | SOFTLINE MATT TYPE | |
| Body Breadth | 17 mm | |
| Body Height | 19.5 mm | |
| Body Length or Diameter | 31.5 mm | |
| Contact (AC) Max Rating R Load | 15A@250VAC | |
| Contact Current(AC)-Max | 15 A | |
| Contact Voltage(AC)-Max | 250 V | |
| Mounting Feature | PANEL MOUNT | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | ROCKER SWITCH | |
| Termination Type | QUICK CONNECT |
