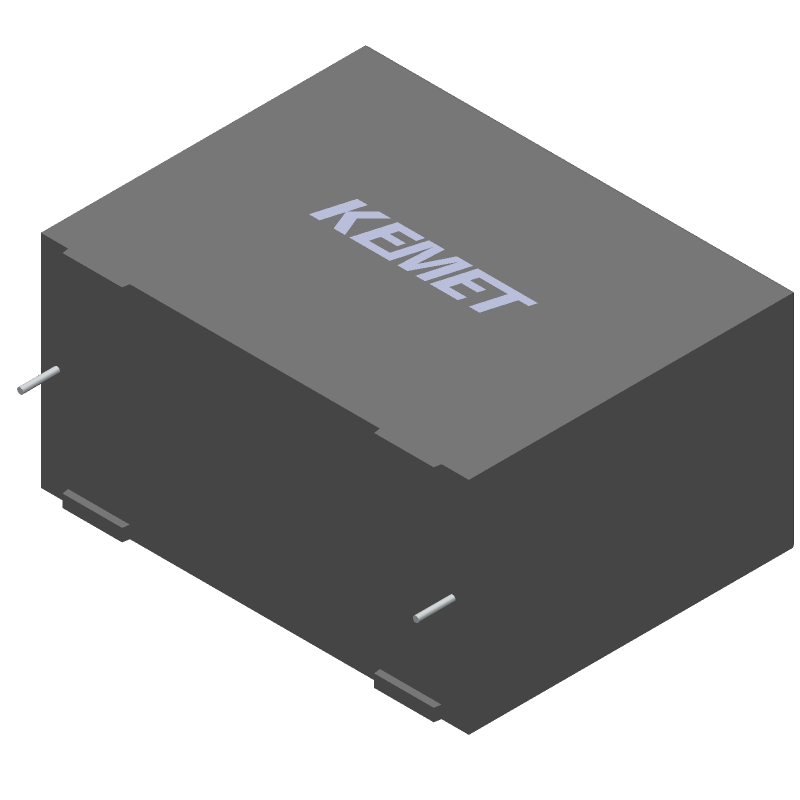

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C4ASWBU4100A1MJ by KEMET Corporation
Results Overview of C4ASWBU4100A1MJ by KEMET Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Space Technology
Aerospace and Defense
Energy and Power Systems
Renewable Energy
C4ASWBU4100A1MJ Information
C4ASWBU4100A1MJ by KEMET Corporation is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C4ASWBU4100A1MJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
C4ASWBU4100A1MJ
|
Richardson RFPD | FILM CAPACITOR RoHS: Compliant Min Qty: 1 | 0 |
|
RFQ |
Part Details for C4ASWBU4100A1MJ
C4ASWBU4100A1MJ CAD Models
C4ASWBU4100A1MJ Part Data Attributes
|
|
C4ASWBU4100A1MJ
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C4ASWBU4100A1MJ
KEMET Corporation
CAPACITOR, METALLIZED FILM
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 1 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 45 mm | |
| Length | 57.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 5% | |
| Rated (AC) Voltage (URac) | 700 V | |
| Rated (DC) Voltage (URdc) | 2000 V | |
| Reference Standard | IEC61071; EN61071; VDE0560 | |
| Surface Mount | NO | |
| Terminal Pitch | 52.5 mm | |
| Terminal Shape | WIRE | |
| Width | 30 mm |
Alternate Parts for C4ASWBU4100A1MJ
This table gives cross-reference parts and alternative options found for C4ASWBU4100A1MJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C4ASWBU4100A1MJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| C4ASWBU4100A3MJ | KEMET Corporation | $75.6226 | CAPACITOR, METALLIZED FILM | C4ASWBU4100A1MJ vs C4ASWBU4100A3MJ |
