C3951BA Information

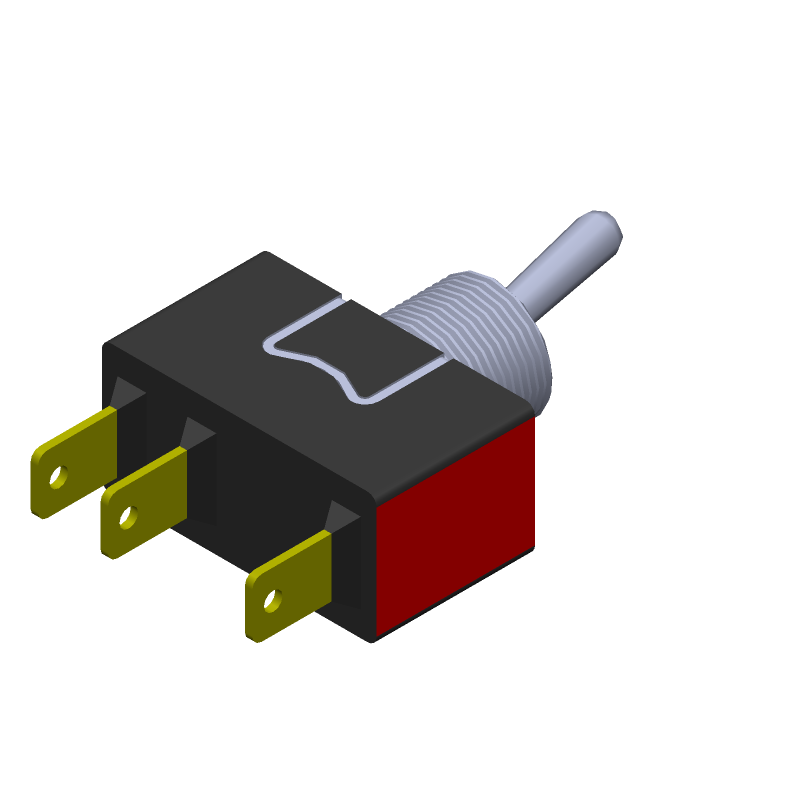

C3951BA by Bulgin is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for C3951BA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28Y7978
|
Newark | Toggle Switch, Dpst, 20A, 277Vac, Switch Operation:(On)-Off, Contact Configuration:Dpst-No, Illumination:Non Illuminated, Product Range:3900 Series, Switch Mounting:Panel Mount, Contact Current Max:20A, Contact Voltage Ac Nom:277V Rohs Compliant: Yes |Arcolectric/bulgin Limited C3951BA RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$15.8400 | Buy Now |
|
DISTI #
C3951BA-ND
|
DigiKey | SWITCH TOGGLE DPST-NO 16A 125V Min Qty: 1 Lead time: 28 Weeks Container: Bulk |
461 In Stock |
|
$15.5841 / $23.2500 | Buy Now |
|
DISTI #
167-C3951BA
|
Mouser Electronics | Toggle Switches DPST Toggle Switch RoHS: Compliant | 961 |
|
$15.7200 / $23.2500 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
1151 In Stock |
|
$13.1000 / $20.8300 | Buy Now |
|
DISTI #
86217813
|
Verical | Switch Toggle (ON) OFF DPST Round Lever Quick Conn 20A 277VAC 72VDC 745.7VA Panel Mount with Threads RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2244 | Americas - 997 |
|
$18.5510 / $27.0790 | Buy Now |
|
DISTI #
36794929
|
Verical | Switch Toggle (ON) OFF DPST Round Lever Quick Conn 20A 277VAC 72VDC 745.7VA Panel Mount with Threads RoHS: Compliant Min Qty: 4 Package Multiple: 1 | Americas - 654 |
|
$15.4200 / $16.6200 | Buy Now |
|
DISTI #
C3951BA
|
IBS Electronics | SWITCH TOGGLE (ON) OFF DPST ROUND LEVER QUICK CONN 20A 277VAC 72VDC 745.7VA PANEL MOUNT WITH THREADS Min Qty: 4 Package Multiple: 1 | 1651 |
|
$15.7125 / $27.0790 | Buy Now |
|
|
Master Electronics | RoHS: Compliant |
1151 In Stock |
|
$13.1000 / $20.8300 | Buy Now |
Part Details for C3951BA
C3951BA CAD Models
C3951BA Part Data Attributes
|
|
C3951BA
Bulgin
Buy Now
Datasheet
|
Compare Parts:
C3951BA
Bulgin
Toggle Switch, DPST, (on)-off, Momentary, 14A, 36VDC, Quick Connect Terminal, Metal Lever Actuator, Panel Mount-threaded, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BULGIN LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | Bulgin | |
| Actuator Finish | NICKEL | |
| Actuator Length | 0.689 inch | |
| Actuator Type | METAL LEVER | |
| Body Height | 16.9926 mm | |
| Contact (AC) Max Rating R Load | 20A@277VAC | |
| Contact Current(AC)-Max | 20 A | |
| Contact Current(DC)-Max | 14 A | |
| Contact (DC) Max Rating R Load | 14A@36VDC | |
| Contact Function | (ON)-OFF | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(AC)-Max | 277 V | |
| Contact Voltage(DC)-Max | 36 V | |
| Insulation Resistance | 20000000 Ω | |
| Mounting Feature | PANEL MOUNT-THREADED | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | DPST | |
| Switch Type | TOGGLE SWITCH | |
| Termination Type | QUICK CONNECT |
