Capacitors / Fixed Capacitors / C3216X7R1H335K160AC
Datasheets
C3216X7R1H335K160AC by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT

Part Details for C3216X7R1H335K160AC by TDK Corporation

Results Overview of C3216X7R1H335K160AC by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C3216X7R1H335K160AC Information

C3216X7R1H335K160AC by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C3216X7R1H335K160AC

Part # Distributor Description Stock Price Buy
DISTI # 12T1964
Newark Mlcc,1206,x7R,50V,3.3Μf,1.6Mm/Tape And Reel Rohs Compliant: Yes |Tdk C3216X7R1H335K160AC RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 445-5990-1-ND
DigiKey CAP CER 3.3UF 50V X7R 1206 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 32588
In Stock
  • 1 $0.9600
  • 10 $0.6120
  • 100 $0.4336
  • 1,000 $0.3406
  • 2,000 $0.3222
  • 4,000 $0.3137
  • 6,000 $0.3053
  • 10,000 $0.2937
  • 14,000 $0.2904
  • 20,000 $0.2880
$0.2880 / $0.9600 Buy Now
DISTI # C3216X7R1H335K160AC
Avnet Americas Multilayer Ceramic Capacitor, 3.3 uF, 50 V, ? 10%, X7R, 1206 [3216 Metric] - Tape and Reel (Alt: C3216X7R1H335K160AC) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Container: Reel 30000
  • 2,000 $0.2350
$0.2350 Buy Now
DISTI # 810-C3216X7R1H335K
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 50V 3.3uF X7R 10% T: 1.6mm RoHS: Compliant 30791
  • 1 $0.9600
  • 10 $0.6120
  • 100 $0.4290
  • 500 $0.4020
  • 1,000 $0.3410
  • 2,000 $0.2890
  • 4,000 $0.2820
  • 10,000 $0.2760
  • 24,000 $0.2650
$0.2650 / $0.9600 Buy Now
DISTI # V72:2272_06582351
Arrow Electronics Cap Ceramic 3.3uF 50V X7R 10% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 246 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2339 Container: Cut Strips Americas - 615
  • 253 $0.3947
  • 500 $0.2607
$0.2607 / $0.3947 Buy Now
Quest Components   176
  • 1 $3.7500
  • 28 $2.5000
  • 101 $2.3125
$2.3125 / $3.7500 Buy Now
DISTI # C3216X7R1H335K160AC
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT 1206 50V 3.3uF X7R 10% T: 1.6mm RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 2000
In Stock
  • 2,000 $0.2640
  • 4,000 $0.2590
  • 6,000 $0.2540
  • 10,000 $0.2490
  • 16,000 $0.2440
$0.2440 / $0.2640 Buy Now
DISTI # C3216X7R1H335K160AC.
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT 3.3UF 50V 10% 1206 RoHS: Compliant pbFree: Pb-Free Min Qty: 50 Package Multiple: 50 Container: Cut Tape Americas - 350
In Stock
  • 50 $0.6550
$0.6550 Buy Now
DISTI # C3216X7R1H335K160AC
Avnet Abacus Multilayer Ceramic Capacitor 33 uF 50 V 10 X7R 1206 3216 Metric - Tape and Reel (Alt: C3216X7R1H335K160AC) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 41 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 11998
RFQ

Part Details for C3216X7R1H335K160AC

C3216X7R1H335K160AC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

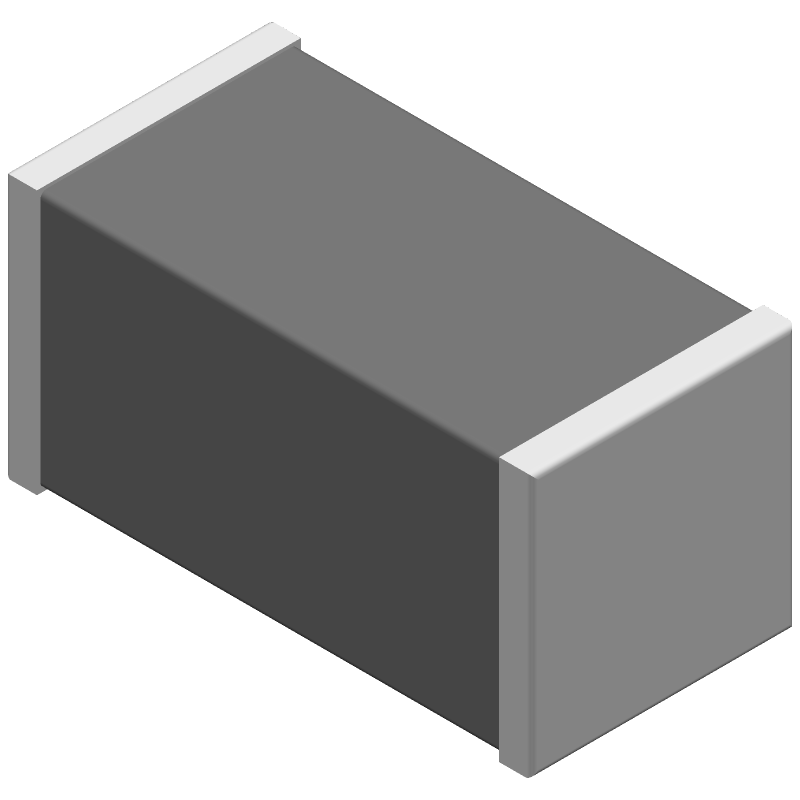

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C3216X7R1H335K160AC Part Data Attributes

Parametric Data
C3216X7R1H335K160AC TDK Corporation
Buy Now Datasheet
Compare Parts:
C3216X7R1H335K160AC TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 24 Weeks
Samacsys Manufacturer TDK
Capacitance 3.3 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.6 mm
JESD-609 Code e3
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 Inch
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 1206
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.6 mm

Alternate Parts for C3216X7R1H335K160AC

This table gives cross-reference parts and alternative options found for C3216X7R1H335K160AC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C3216X7R1H335K160AC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1206H0500335KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206H0500335KXB
1206A0500335KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206A0500335KXB
1206H0500335KXR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206H0500335KXR
1206A0500335KXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206A0500335KXT
1206J0500335KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206J0500335KXB
C3216X7R1H335KT TDK Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT C3216X7R1H335K160AC vs C3216X7R1H335KT
1206Y0500335KXT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206Y0500335KXT
1206F0500335KXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206F0500335KXB
1206F0500335KXR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206F0500335KXR
1206Y0500335KXR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 3.3uF, Surface Mount, 1206, CHIP C3216X7R1H335K160AC vs 1206Y0500335KXR

C3216X7R1H335K160AC Related Parts

C3216X7R1H335K160AC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C3216X7R1H335K160AC is 260°C for 10 seconds or less, with a peak temperature of 240°C.

  • Yes, the C3216X7R1H335K160AC is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the C3216X7R1H335K160AC is -55°C to 125°C.

  • Yes, the C3216X7R1H335K160AC is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the C3216X7R1H335K160AC is 0.015 ohms at 100 kHz.
