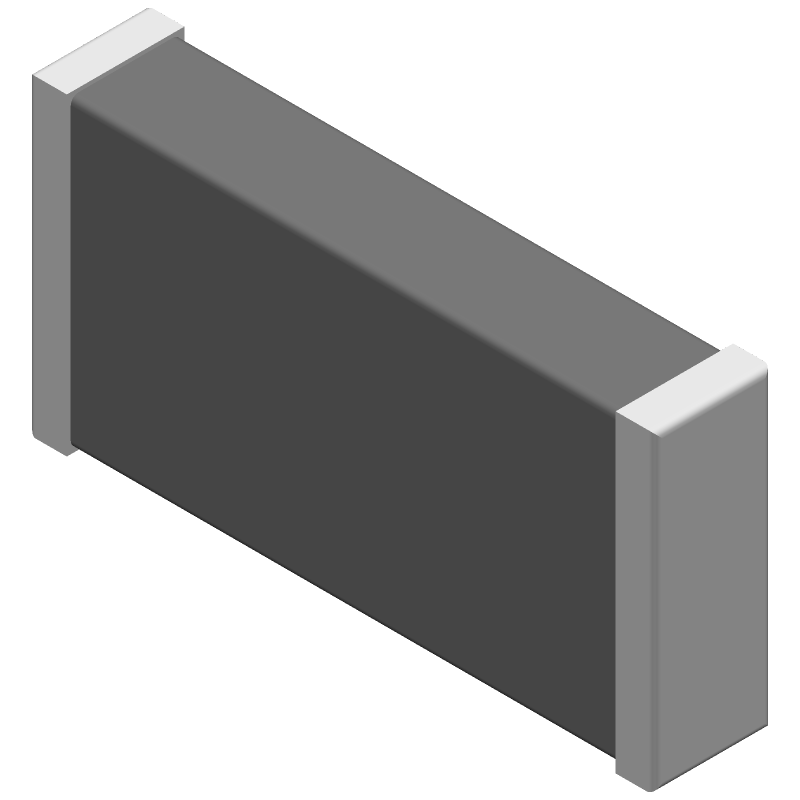

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C3216C0G1H103J060AA by TDK Corporation
Results Overview of C3216C0G1H103J060AA by TDK Corporation
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C3216C0G1H103J060AA Information
C3216C0G1H103J060AA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C3216C0G1H103J060AA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y7983
|
Newark | Cap, Mlcc, 0.01Uf, 50V, C0G/Np0, 1206, Capacitance:0.01Μf, Voltage(Dc):50V, Voltage(Ac):-, Capacitor Case/Package:1206 [3216 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:C Series Rohs Compliant: Yes |Tdk C3216C0G1H103J060AA RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.1010 / $0.2030 | Buy Now |
|
DISTI #
445-7688-1-ND
|
DigiKey | CAP CER 10000PF 50V C0G 1206 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
40257 In Stock |
|
$0.0650 / $0.3500 | Buy Now |
|
DISTI #
810-C3216C0G1H103J-1
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT SUGGESTED ALTERNATE 810-C2012C0G1H103J-1 RoHS: Compliant | 24174 |
|
$0.0650 / $0.3500 | Buy Now |
|
DISTI #
V72:2272_06581703
|
Arrow Electronics | Cap Ceramic 0.01uF 50V C0G 5% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 726 Package Multiple: 1 Lead time: 36 Weeks Date Code: 2231 Container: Cut Strips | Americas - 716 |
|
$0.0770 | Buy Now |
|
DISTI #
62836193
|
Verical | Cap Ceramic 0.01uF 50V C0G 5% Pad SMD 1206 125°C T/R RoHS: Compliant Min Qty: 716 Package Multiple: 1 Date Code: 2231 | Americas - 716 |
|
$0.0770 | Buy Now |
|
DISTI #
C3216C0G1H103J060AA
|
Avnet Abacus | SMD Multilayer Ceramic Capacitor 001 F 50 V 1206 3216 Metric 5 C0G NP0 - Tape and Reel (Alt: C3216C0G1H103J060AA) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 41 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 150 |
|
$0.3800 / $0.5800 | Buy Now |
Part Details for C3216C0G1H103J060AA
C3216C0G1H103J060AA CAD Models
C3216C0G1H103J060AA Part Data Attributes
|
|
C3216C0G1H103J060AA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C3216C0G1H103J060AA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Surface Mount, 1206, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.01 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.6 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
C3216C0G1H103J060AA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C3216C0G1H103J060AA is 260°C for 10 seconds or less, with a peak temperature of 240°C.
-
Yes, the C3216C0G1H103J060AA is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.
-
The maximum operating temperature range for the C3216C0G1H103J060AA is -55°C to 125°C.
-
Yes, the C3216C0G1H103J060AA is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The ESR of the C3216C0G1H103J060AA is 0.15 ohms at 100 kHz.
