Capacitors / Ceramic Capacitors / C2012X7R1H104K125AE
Datasheets
C2012X7R1H104K125AE by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.1uF, 0805

Part Details for C2012X7R1H104K125AE by TDK Corporation

Results Overview of C2012X7R1H104K125AE by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C2012X7R1H104K125AE Information

C2012X7R1H104K125AE by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C2012X7R1H104K125AE

Part # Distributor Description Stock Price Buy
DISTI # 71AH3321
Newark Cap, Mlcc, 0.1Uf, 50V, X7R, 0805, Capacitance:0.1Μf, Voltage(Dc):50V, Voltage(Ac):-, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:C Series, Product Length:2Mm Rohs Compliant: Yes |Tdk C2012X7R1H104K125AE RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $0.2500
  • 10 $0.2110
  • 25 $0.1920
  • 50 $0.1310
  • 100 $0.1090
  • 250 $0.0910
  • 500 $0.0730
  • 1,000 $0.0610
$0.0610 / $0.2500 Buy Now
DISTI # 17X8623
Newark Mlcc,0805,x7R,50V,0.1Μf,1.25Mm/Tape And Reel Rohs Compliant: Yes |Tdk C2012X7R1H104K125AE RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 445-15929-1-ND
DigiKey CAP CER 0.1UF 50V X7R 0805 Min Qty: 1 Lead time: 36 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1555
In Stock
  • 1 $0.2100
  • 2,000 $0.0527
$0.0527 / $0.2100 Buy Now
DISTI # C2012X7R1H104K125AE
Avnet Americas Multilayer Ceramic Capacitor, 0.1 uF, 50 V, ? 10%, X7R, 0805 [2012 Metric] - Tape and Reel (Alt: C2012X7R1H104K125AE) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.0559
  • 4,000 $0.0556
  • 8,000 $0.0553
  • 12,000 $0.0550
  • 16,000 $0.0547
$0.0547 / $0.0559 Buy Now
Quest Components CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 50V, 10% +TOL, 10% -TOL, X7R, 15% TC, 0.1UF, SURFACE MOUNT, 0805 934
  • 1 $0.1040
  • 129 $0.0650
  • 770 $0.0468
$0.0468 / $0.1040 Buy Now
DISTI # C2012X7R1H104K125AE
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT SOFT 0805 50V 0.1uF X7R 10% T: 1.25mm RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 0
Buy Now
DISTI # C2012X7R1H104K125AE
Avnet Abacus Multilayer Ceramic Capacitor 01 uF 50 V 10 X7R 0805 2012 Metric (Alt: C2012X7R1H104K125AE) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 5217
RFQ

Part Details for C2012X7R1H104K125AE

C2012X7R1H104K125AE CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

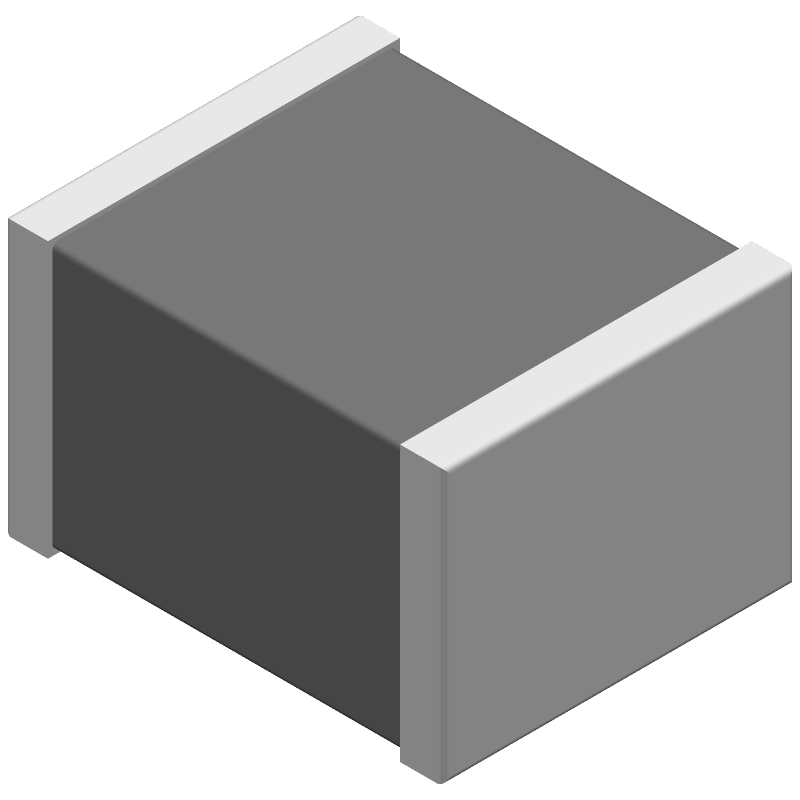

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C2012X7R1H104K125AE Part Data Attributes

Parametric Data
C2012X7R1H104K125AE TDK Corporation
Buy Now Datasheet
Compare Parts:
C2012X7R1H104K125AE TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.1uF, 0805
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 111 Weeks
Samacsys Manufacturer TDK
Capacitance 0.1 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.25 mm
JESD-609 Code e3
Length 2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for C2012X7R1H104K125AE

This table gives cross-reference parts and alternative options found for C2012X7R1H104K125AE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C2012X7R1H104K125AE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC055C104KZT9SA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP C2012X7R1H104K125AE vs BC055C104KZT9SA0
BC055C104KZT9AA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP C2012X7R1H104K125AE vs BC055C104KZT9AA3
HR0805X7R104K2NT6B Presidio Components Inc Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.1uF, SURFACE MOUNT, 0805, CHIP C2012X7R1H104K125AE vs HR0805X7R104K2NT6B
C0805S104K5RAL7210 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, C2012X7R1H104K125AE vs C0805S104K5RAL7210
HR0805X7R104K2NT93A Presidio Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.1uF, 0805, C2012X7R1H104K125AE vs HR0805X7R104K2NT93A
BC055C104KZJ6SA1 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP C2012X7R1H104K125AE vs BC055C104KZJ6SA1
500R15W104KP6W Johanson Dielectrics Inc Check for Price Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+30ppm/Cel;-/+15% TC, 0.1uF, 0805, C2012X7R1H104K125AE vs 500R15W104KP6W
0805Y0500104KXT Syfer Technology Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP C2012X7R1H104K125AE vs 0805Y0500104KXT
0805B104K500S Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.1uF, Surface Mount, 0805, CHIP C2012X7R1H104K125AE vs 0805B104K500S
DM21X7R104K50AT KYOCERA Corporation Check for Price CAPACITOR, CERAMIC, MULTILAYER, 50V, X7R, 0.1uF, SURFACE MOUNT, 0805, CHIP, ROHS COMPLIANT C2012X7R1H104K125AE vs DM21X7R104K50AT

C2012X7R1H104K125AE Related Parts

C2012X7R1H104K125AE Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C2012X7R1H104K125AE is 260°C for 30 seconds or less, with a peak temperature of 240°C.

  • Yes, the C2012X7R1H104K125AE is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the C2012X7R1H104K125AE is 125°C, with a derating of capacitance and insulation resistance above 85°C.

  • Yes, the C2012X7R1H104K125AE is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The ESR of the C2012X7R1H104K125AE is 50 mΩ or less at 100 kHz, making it suitable for high-frequency and high-power applications.
