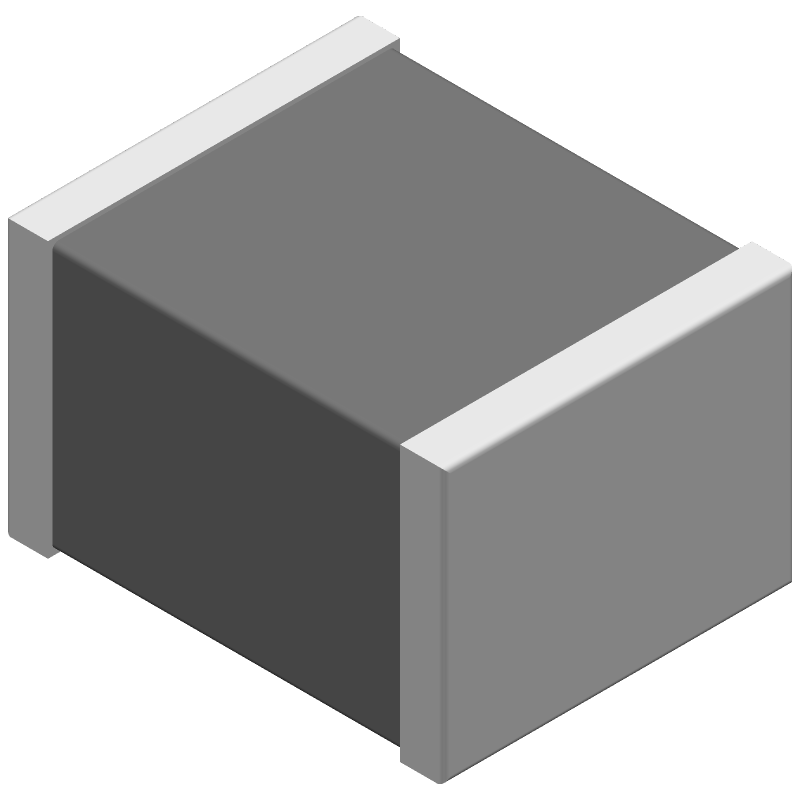

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C2012C0G2W391J060AA by TDK Corporation
Results Overview of C2012C0G2W391J060AA by TDK Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C2012C0G2W391J060AA Information
C2012C0G2W391J060AA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C2012C0G2W391J060AA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-15325-1-ND
|
DigiKey | CAP CER 390PF 450V C0G 0805 Min Qty: 1 Lead time: 36 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
803 In Stock |
|
$0.0502 / $0.2200 | Buy Now |
|
DISTI #
C2012C0G2W391J060AA
|
Avnet Americas | Cap Ceramic 390pF 450V C0G 5% SMD 0805 125?C Punched Paper T/R - Tape and Reel (Alt: C2012C0G2W391J060AA) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0308 / $0.0351 | Buy Now |
Part Details for C2012C0G2W391J060AA
C2012C0G2W391J060AA CAD Models
C2012C0G2W391J060AA Part Data Attributes
|
|
C2012C0G2W391J060AA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C2012C0G2W391J060AA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 450V, C0G, -/+30ppm/Cel TC, 0.00039uF, 0805
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.00039 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.6 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 450 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | C0G | |
| Temperature Coefficient | 30ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
C2012C0G2W391J060AA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C2012C0G2W391J060AA capacitor is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the C2012C0G2W391J060AA capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The maximum operating temperature range for the C2012C0G2W391J060AA capacitor is -55°C to +125°C.
-
Yes, the C2012C0G2W391J060AA capacitor is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The recommended storage temperature range for the C2012C0G2W391J060AA capacitor is -40°C to +40°C, and the recommended storage humidity range is 20% to 80% RH.
