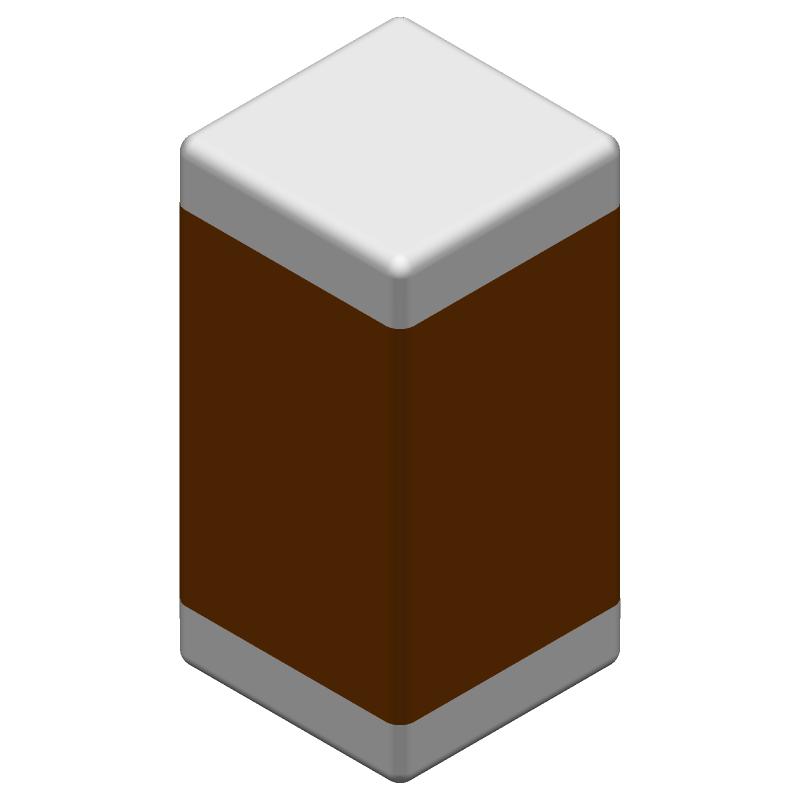

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C1608X8R1H104K080AB by TDK Corporation
Results Overview of C1608X8R1H104K080AB by TDK Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C1608X8R1H104K080AB Information
C1608X8R1H104K080AB by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C1608X8R1H104K080AB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-8818-1-ND
|
DigiKey | CAP CER 0.1UF 50V X8R 0603 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
1155994 In Stock |
|
$0.0300 / $0.1900 | Buy Now |
|
DISTI #
810-C1608X8R1H104K0B
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 50V 0.1uF X8R 10% T: 0.8mm RoHS: Compliant | 98416 |
|
$0.0310 / $0.1800 | Buy Now |
|
DISTI #
69167288
|
Verical | Cap Ceramic 0.1uF 50V X8R 10% Pad SMD 0603 150°C T/R RoHS: Compliant Min Qty: 1185 Package Multiple: 1 | Americas - 12000 |
|
$0.0232 / $0.0237 | Buy Now |
|
DISTI #
87350442
|
Verical | Cap Ceramic 0.1uF 50V X8R 10% Pad SMD 0603 150°C T/R RoHS: Compliant Min Qty: 1244 Package Multiple: 1 | Americas - 5897 |
|
$0.0381 / $0.0473 | Buy Now |
|
|
Quest Components | CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 50V, 10% +TOL, 10% -TOL, X8R, 15% TC, 0.1UF, SURFACE MOUNT, 0603 | 70 |
|
$0.0591 / $0.0788 | Buy Now |
|
DISTI #
C1608X8R1H104K080AB
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT 0603 50V 0.1uF X8R 10% T: 0.8mm RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel |
Americas - 4000 In Stock |
|
$0.0270 / $0.0299 | Buy Now |
Part Details for C1608X8R1H104K080AB
C1608X8R1H104K080AB CAD Models
C1608X8R1H104K080AB Part Data Attributes
|
|
C1608X8R1H104K080AB
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C1608X8R1H104K080AB
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X8R, 15% TC, 0.1uF, Surface Mount, 0603, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 16 Weeks, 4 Days | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.8 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X8R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.8 mm |
C1608X8R1H104K080AB Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C1608X8R1H104K080AB is 260°C for 30 seconds to 60 seconds.
-
Yes, the C1608X8R1H104K080AB is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.
-
The maximum operating temperature for the C1608X8R1H104K080AB is 125°C.
-
Yes, the C1608X8R1H104K080AB is RoHS compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The ESR of the C1608X8R1H104K080AB is 50 mΩ at 100 kHz.
