Capacitors / Fixed Capacitors / C1608X5R1H474M080AB
Datasheets
C1608X5R1H474M080AB by:

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for C1608X5R1H474M080AB by TDK Corporation

Results Overview of C1608X5R1H474M080AB by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C1608X5R1H474M080AB Information

C1608X5R1H474M080AB by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C1608X5R1H474M080AB

Part # Distributor Description Stock Price Buy
DISTI # 87R3650
Newark Ceramic Capacitor 0.47Uf, 50V, X5R, 20%, 0603, Full Reel, Capacitance:0.47Μf, Voltage(Dc):50V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X5R, Product Range:C Series, Msl:- Rohs Compliant: Yes |Tdk C1608X5R1H474M080AB RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 445-7465-1-ND
DigiKey CAP CER 0.47UF 50V X5R 0603 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 12449
In Stock
  • 1 $0.1900
  • 10 $0.1070
  • 100 $0.0664
  • 1,000 $0.0456
  • 4,000 $0.0382
  • 8,000 $0.0319
  • 12,000 $0.0307
  • 20,000 $0.0306
  • 28,000 $0.0284
  • 40,000 $0.0283
  • 100,000 $0.0270
  • 200,000 $0.0269
  • 400,000 $0.0253
$0.0253 / $0.1900 Buy Now
DISTI # C1608X5R1H474M080AB
Avnet Americas Multilayer Ceramic Capacitor, 0.47 uF, 50 V, ? 20%, X5R, 0603 [1608 Metric] - Tape and Reel (Alt: C1608X5R1H474M080AB) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.0265
  • 8,000 $0.0263
  • 16,000 $0.0262
  • 24,000 $0.0261
  • 32,000 $0.0259
$0.0259 / $0.0265 Buy Now
DISTI # 810-C1608X5R1H474M
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT .47UF 50V 20% 0603 RoHS: Compliant 2600
  • 1 $0.1900
  • 10 $0.1070
  • 100 $0.0670
  • 500 $0.0550
  • 1,000 $0.0460
  • 4,000 $0.0380
  • 8,000 $0.0300
  • 24,000 $0.0280
  • 48,000 $0.0270
$0.0270 / $0.1900 Buy Now
Bristol Electronics   2148
RFQ
DISTI # C1608X5R1H474M080AB
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT .47UF 50V 20% 0603 RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel Americas - 0
  • 4,000 $0.0274
  • 8,000 $0.0269
  • 12,000 $0.0264
  • 24,000 $0.0258
$0.0258 / $0.0274 Buy Now
DISTI # C1608X5R1H474M080AB
Avnet Abacus Multilayer Ceramic Capacitor 047 uF 50 V 20 X5R 0603 1608 Metric - Tape and Reel (Alt: C1608X5R1H474M080AB) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 41 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for C1608X5R1H474M080AB

C1608X5R1H474M080AB CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

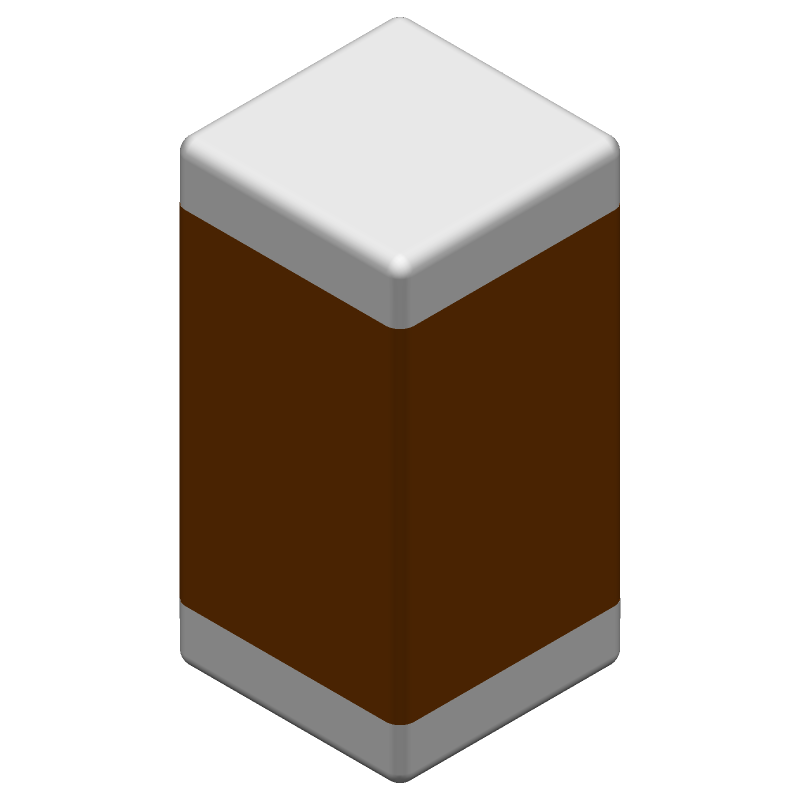

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C1608X5R1H474M080AB Part Data Attributes

Parametric Data
C1608X5R1H474M080AB TDK Corporation
Buy Now Datasheet
Compare Parts:
C1608X5R1H474M080AB TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 24 Weeks
Samacsys Manufacturer TDK
Capacitance 0.47 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 Inch
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code X5R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for C1608X5R1H474M080AB

This table gives cross-reference parts and alternative options found for C1608X5R1H474M080AB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C1608X5R1H474M080AB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UMK107BJ474MA-T TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs UMK107BJ474MA-T
SCM10D474MBNC Surge Components Inc Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs SCM10D474MBNC
223858613758 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs 223858613758
MBASU168SB5474MTNA18 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP C1608X5R1H474M080AB vs MBASU168SB5474MTNA18
UMK107ABJ474MA TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs UMK107ABJ474MA
UMK107BJ474MA-D TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs UMK107BJ474MA-D
MCASU168SB5474MTNA1J TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP C1608X5R1H474M080AB vs MCASU168SB5474MTNA1J
MSASU168AB5474MTNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP C1608X5R1H474M080AB vs MSASU168AB5474MTNA01
06032B474M9BP0D YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.47uF, 0603, C1608X5R1H474M080AB vs 06032B474M9BP0D
MLASU168AB5474MTNA01 TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.47uF, Surface Mount, 0603, CHIP C1608X5R1H474M080AB vs MLASU168AB5474MTNA01

C1608X5R1H474M080AB Related Parts

C1608X5R1H474M080AB Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C1608X5R1H474M080AB is 260°C for 30 seconds to 60 seconds.

  • Yes, the C1608X5R1H474M080AB is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the C1608X5R1H474M080AB is 125°C.

  • Yes, the C1608X5R1H474M080AB is RoHS compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.

  • The ESR of the C1608X5R1H474M080AB is 50 mΩ maximum at 100 kHz.
