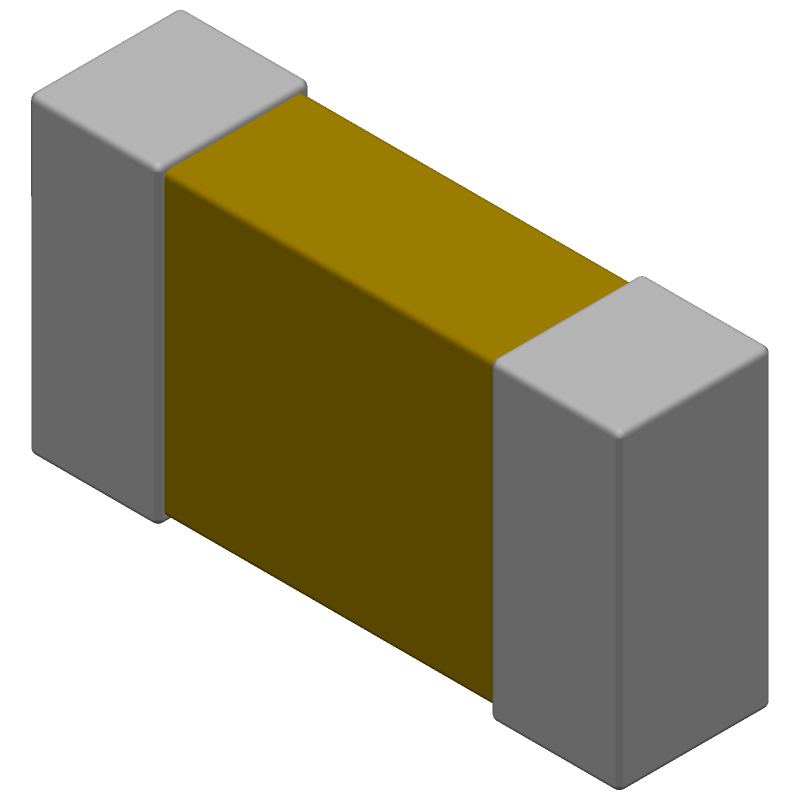

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C1206C103K3RAC7800 by KEMET Corporation
Results Overview of C1206C103K3RAC7800 by KEMET Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Aerospace and Defense
Automotive
C1206C103K3RAC7800 Information
C1206C103K3RAC7800 by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C1206C103K3RAC7800
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87AJ0295
|
Newark | .010Uf 25.0V Rohs Compliant: Yes |Kemet C1206C103K3RAC7800 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.0790 | Buy Now |
|
DISTI #
C1206C103K3RAC7800
|
Avnet Abacus | - Tape and Reel (Alt: C1206C103K3RAC7800) RoHS: Compliant Min Qty: 20000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for C1206C103K3RAC7800
C1206C103K3RAC7800 CAD Models
C1206C103K3RAC7800 Part Data Attributes
|
|
C1206C103K3RAC7800
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C1206C103K3RAC7800
KEMET Corporation
Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 1206 (3216 mm), Sn/NiBar, -55º ~ +125ºC, 7" Reel/Unmarked
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Part Package Code | 1206 | |
| Package Description | , 1206 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.01 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.78 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, Plastic, 7 Inch | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for C1206C103K3RAC7800
This table gives cross-reference parts and alternative options found for C1206C103K3RAC7800. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C1206C103K3RAC7800, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CL1206X7R103KWT | Quantic UTC | Check for Price | Ceramic Capacitor, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 1206, | C1206C103K3RAC7800 vs CL1206X7R103KWT |
| C1206C103K3REC | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C1206C103K3RAC7800 vs C1206C103K3REC |
| C1206S103K3RACTU | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, X7R, -/+15ppm/Cel TC, 0.01uF, 1206 | C1206C103K3RAC7800 vs C1206S103K3RACTU |
| GMG31X7R103K25NT4 | Cal-Chip Electronics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 1206, CHIP | C1206C103K3RAC7800 vs GMG31X7R103K25NT4 |
| C1206T103K3RAC | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT | C1206C103K3RAC7800 vs C1206T103K3RAC |
| C1206C103K3RAC7025 | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 1206, | C1206C103K3RAC7800 vs C1206C103K3RAC7025 |
| GMG31X7R103K25NT-4 | Cal-Chip Electronics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 1206, CHIP | C1206C103K3RAC7800 vs GMG31X7R103K25NT-4 |
| C1206T103K3RCC7040 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 1206, | C1206C103K3RAC7800 vs C1206T103K3RCC7040 |
| C1206X103K3RAC7040 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 1306, | C1206C103K3RAC7800 vs C1206X103K3RAC7040 |
| C1206Y103K3RAL7215 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C1206C103K3RAC7800 vs C1206Y103K3RAL7215 |
C1206C103K3RAC7800 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C1206C103K3RAC7800 is 260°C (500°F) for a maximum of 10 seconds.
-
Yes, the C1206C103K3RAC7800 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, automotive, and medical devices.
-
Yes, the C1206C103K3RAC7800 is designed to withstand high vibrations and meets the requirements of IEC 60068-2-6, which specifies the vibration testing for electronic components.
-
The ESR of the C1206C103K3RAC7800 is typically around 0.05 ohms at 100 kHz, but it's recommended to check the datasheet or contact KEMET Corporation for the latest information.
-
Yes, the C1206C103K3RAC7800 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
