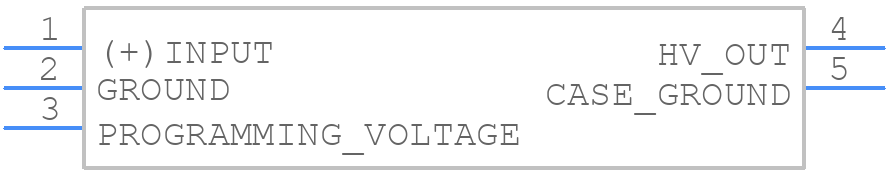

Part Symbol
-

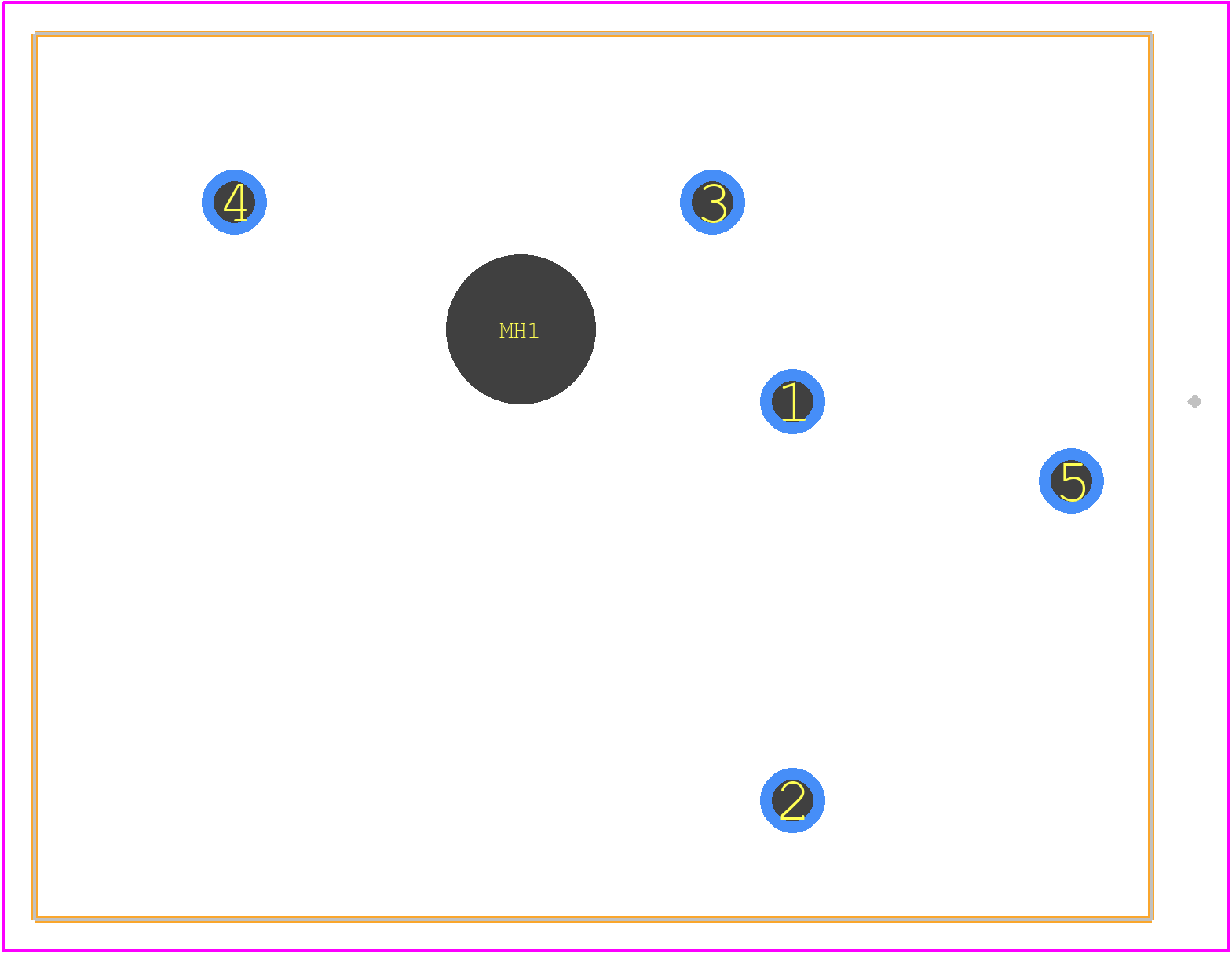

Footprint
-

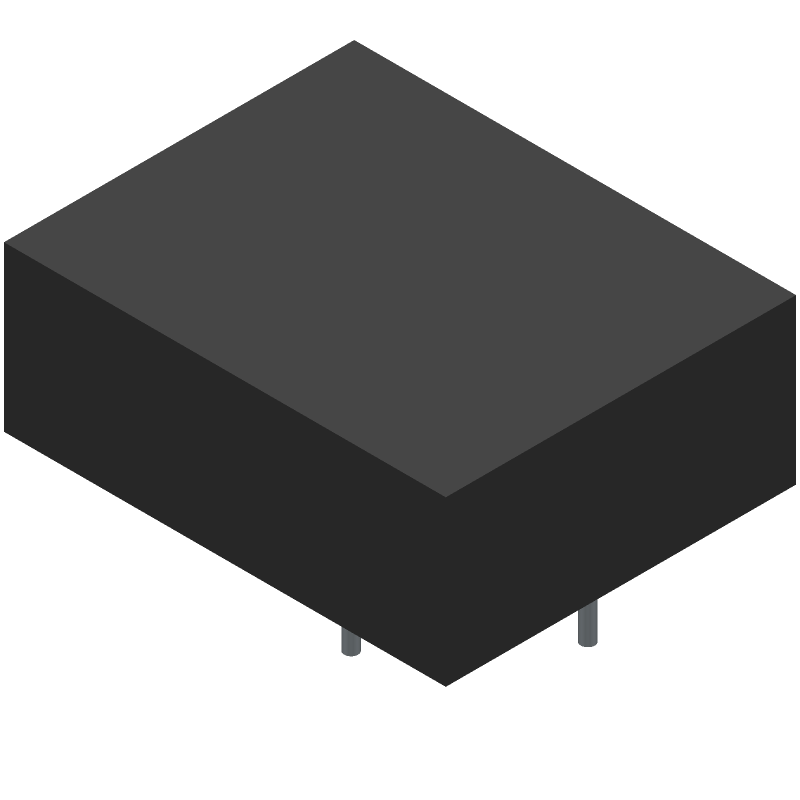

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C10N by XP Power
Results Overview of C10N by XP Power
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C10N Information
C10N by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for C10N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84Y5716
|
Newark | Dc-Dc Converter, 1 O/P, -1Kv, 1000Ua, Product Range:C Series, Output Power Max:1W, Output Voltage Min:0V, Output Voltage Max:-1Kv, Output Current Max:1Ma, Polarity:Negative Output, Dc/Dc Converter Output Type:Fixed, Adjustable, Rohs Compliant: Yes |Xp Power C10N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$199.6800 | Buy Now |
|
DISTI #
78Y6073
|
Newark | Dc-Dc Converter, 1 O/P, -1Kv, 1000Ua, High Voltage Power Supply Type:Regulated, Polarity:Negative Output, Dc/Dc Converter Output Type:Fixed, Adjustable, Power Rating:1W, Output Current Max:1Ma, Power Supply Mounting:Through Hole Rohs Compliant: Yes |Xp Power C10N RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$221.1400 / $243.0100 | Buy Now |
|
DISTI #
1470-3246-ND
|
DigiKey | DC DC CONVERTER -1000V 1W Min Qty: 1 Lead time: 14 Weeks Container: Box |
256 In Stock |
|
$221.1409 / $279.4600 | Buy Now |
|
DISTI #
209-C10N
|
Mouser Electronics | Non-Isolated DC/DC Converters SINGLE O/P, DC-HV DC PCB MOUNT, 1W, -1kV RoHS: Compliant | 0 |
|
$225.4200 / $240.9900 | Order Now |
|
DISTI #
71928358
|
RS | DC-DC Converter, Thru Hole, DIP, 1W, -1000V@1mA, 11.5-16V In, C Series Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 0 |
|
$268.1400 / $282.2500 | RFQ |
|
DISTI #
87609329
|
Verical | C10N Min Qty: 1 Package Multiple: 1 | Americas - 1 |
|
$304.3040 / $365.1480 | Buy Now |
|
DISTI #
C10N
|
TME | Converter: DC/DC, 1W, Uin: 11.5÷16VDC, Uout: 0÷-1kVDC, Iout: 1mA, THT Min Qty: 1 | 1 |
|
$221.4600 / $280.7300 | Buy Now |
Part Details for C10N
C10N CAD Models
C10N Part Data Attributes
|
|
C10N
XP Power
Buy Now
Datasheet
|
Compare Parts:
C10N
XP Power
DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid, PACKAGE-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | XP POWER | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 16 V | |
| Input Voltage-Min | 11.5 V | |
| JESD-30 Code | R-XXMA-P6 | |
| Length | 35.56 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -10 °C | |
| Output Voltage-Max | -1000 V | |
| Output Voltage-Min | ||
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 13.21 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | COMMERCIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | YES | |
| Width | 28.19 mm |
C10N Frequently Asked Questions (FAQ)
-
The maximum capacitance tolerance for the C10N series is ±20%.
-
Yes, the C10N series is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
-
The recommended derating curve for the C10N series is 1.5% per 1000 feet above sea level, up to a maximum of 15,000 feet.
-
Yes, the C10N series modules are fully compliant with the RoHS and REACH directives.
-
The typical efficiency of the C10N series is >85% at full load, depending on the specific model and input voltage.
