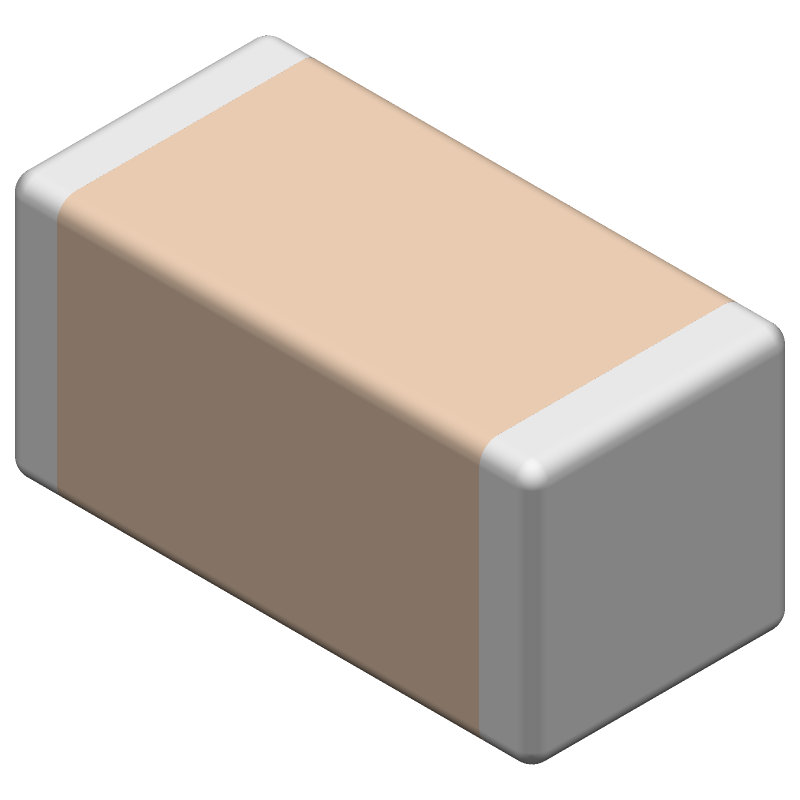

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C1005CH1H180J050BA by TDK Corporation
Results Overview of C1005CH1H180J050BA by TDK Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C1005CH1H180J050BA Information
C1005CH1H180J050BA by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Part Details for C1005CH1H180J050BA
C1005CH1H180J050BA CAD Models
C1005CH1H180J050BA Part Data Attributes
|
|
C1005CH1H180J050BA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C1005CH1H180J050BA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, CH, 60ppm/Cel TC, 0.000018uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | , 0402 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.000018 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.5 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | CH | |
| Temperature Coefficient | 60ppm/Cel ppm/°C | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.5 mm |
Alternate Parts for C1005CH1H180J050BA
This table gives cross-reference parts and alternative options found for C1005CH1H180J050BA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C1005CH1H180J050BA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| C1005CH1H180JB | TDK Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, CH, 60ppm/Cel TC, 0.000018uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT | C1005CH1H180J050BA vs C1005CH1H180JB |
C1005CH1H180J050BA Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. However, it's always best to consult the manufacturer's soldering guidelines and follow industry-standard soldering practices.
-
While the C1005CH1H180J050BA is a high-quality capacitor, it's essential to consult TDK Corporation's specific documentation and certifications (e.g., AEC-Q200) to ensure it meets the specific requirements of your high-reliability application.
-
The C1005CH1H180J050BA is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult TDK Corporation's vibration testing data and consider additional mechanical stress testing to ensure the capacitor's reliability.
-
The C1005CH1H180J050BA has an MSL rating of 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before soldering. However, it's always best to follow the manufacturer's storage and handling guidelines to prevent moisture absorption.
-
While the C1005CH1H180J050BA is a ceramic capacitor, it's not specifically designed for EMI shielding. For high-EMI-shielding requirements, consider using a capacitor with a metalized ceramic or film construction, or adding additional EMI shielding components to your design.
