Capacitors / Ceramic Capacitors / C0805C155J4RACTU
Datasheets
C0805C155J4RACTU by: KEMET Corporation

Capacitor, Ceramic, Chip, General Purpose, 1.5uF, 16V, ±5%, X7R, 0805 (2012 mm), -55º ~ +125ºC, 7" Reel/Unmarked

Part Details for C0805C155J4RACTU by KEMET Corporation

Results Overview of C0805C155J4RACTU by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Telecommunications Automotive

C0805C155J4RACTU Information

C0805C155J4RACTU by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C0805C155J4RACTU

Part # Distributor Description Stock Price Buy
DISTI # 32X7644
Newark 1.50Uf 16.0V Rohs Compliant: Yes |Kemet C0805C155J4RACTU RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.4470
  • 4,000 $0.4020
  • 6,000 $0.3880
  • 10,000 $0.3790
$0.3790 / $0.4470 Buy Now
DISTI # 399-C0805C155J4RACTUTR-ND
DigiKey CAP CER 1.5UF 16V X7R 0805 Min Qty: 2500 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,500 $0.4237
$0.4237 Buy Now
DISTI # 80-C0805C155J4RACTU
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 16V 1.5uF X7R 0805 5% RoHS: Compliant 0
  • 2,500 $0.4230
$0.4230 Order Now

Part Details for C0805C155J4RACTU

C0805C155J4RACTU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

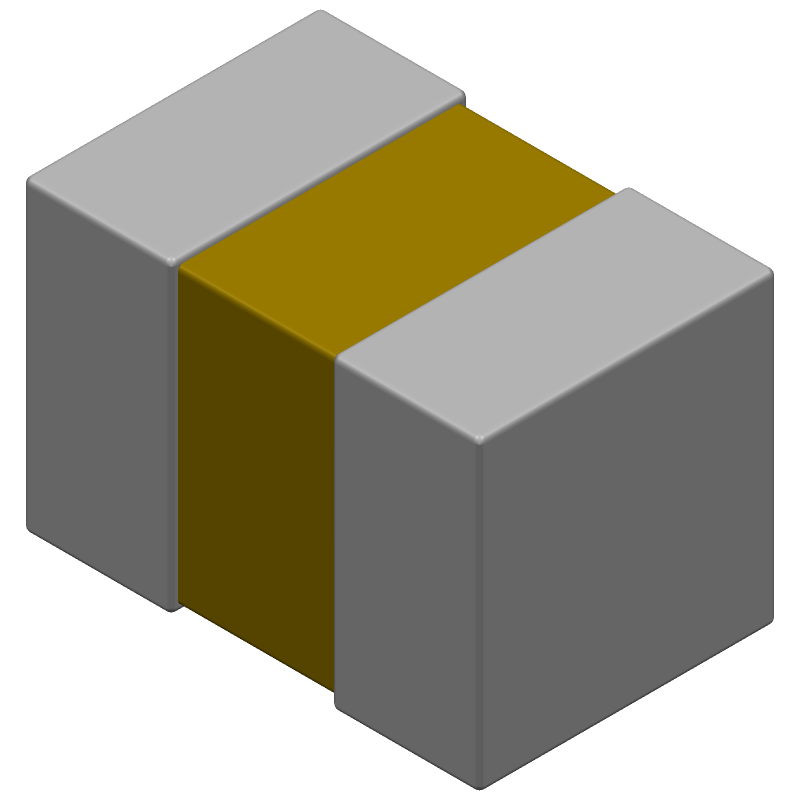

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0805C155J4RACTU Part Data Attributes

Parametric Data
C0805C155J4RACTU KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0805C155J4RACTU KEMET Corporation Capacitor, Ceramic, Chip, General Purpose, 1.5uF, 16V, ±5%, X7R, 0805 (2012 mm), -55º ~ +125ºC, 7" Reel/Unmarked
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Part Package Code 0805
Package Description , 0805
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer KEMET
Capacitance 1.5 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 1.25 mm
JESD-609 Code e3
Length 2 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 16 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for C0805C155J4RACTU

This table gives cross-reference parts and alternative options found for C0805C155J4RACTU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0805C155J4RACTU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0805H0160155JXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP C0805C155J4RACTU vs 0805H0160155JXB
0805F0160155JXB Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP C0805C155J4RACTU vs 0805F0160155JXB
C0805T155J4RCL7215 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805T155J4RCL7215
C0805C155J4RAC7025 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805C155J4RAC7025
C0805T155J4RBL7215 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805T155J4RBL7215
C0805T155J4RAC3325 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805T155J4RAC3325
C0805T155J4RCC7025 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805T155J4RCC7025
C0805T155J4RBCTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT C0805C155J4RACTU vs C0805T155J4RBCTU
C0805T155J4RBLTM KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 1.5uF, Surface Mount, 0805, CHIP C0805C155J4RACTU vs C0805T155J4RBLTM
C0805X155J4RAC7411 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 1.5uF, 0805, C0805C155J4RACTU vs C0805X155J4RAC7411

C0805C155J4RACTU Related Parts

C0805C155J4RACTU Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C0805C155J4RACTU capacitor is between 250°C to 260°C, with a maximum exposure time of 3 seconds.

  • Yes, the C0805C155J4RACTU capacitor is suitable for high-reliability applications, as it meets the requirements of MIL-PRF-55681 and is qualified to MIL-PRF-55681/1.

  • The maximum operating voltage derating for the C0805C155J4RACTU capacitor is 0.5% per °C above 125°C, up to a maximum of 150°C.

  • Yes, the C0805C155J4RACTU capacitor meets the requirements of AEC-Q200 and is suitable for use in automotive applications.

  • The equivalent series resistance (ESR) of the C0805C155J4RACTU capacitor is 0.15 ohms maximum at 100 kHz and 20°C.
