Capacitors / Fixed Capacitors / C0603C470J5GACAUTO7411
Datasheets
C0603C470J5GACAUTO7411 by: KEMET Corporation

Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0603 (1608 mm), -55º ~ +125ºC, 13" Special Reel/Unmarked

Part Details for C0603C470J5GACAUTO7411 by KEMET Corporation

Results Overview of C0603C470J5GACAUTO7411 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C0603C470J5GACAUTO7411 Information

C0603C470J5GACAUTO7411 by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C0603C470J5GACAUTO7411

Part # Distributor Description Stock Price Buy
DISTI # 399-C0603C470J5GACAUTO7411CT-ND
DigiKey CAP CER 47PF 50V C0G/NP0 0603 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $0.1500
  • 15,000 $0.0203
$0.0203 / $0.1500 Buy Now
DISTI # C0603C470J5GACAUTO7411
Avnet Abacus Multilayer Ceramic Capacitor 47 pF 50 V 5 C0G NP0 0603 1608 Metric - Tape and Reel (Alt: C0603C470J5GACAUTO7411) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 19 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 183
RFQ

Part Details for C0603C470J5GACAUTO7411

C0603C470J5GACAUTO7411 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

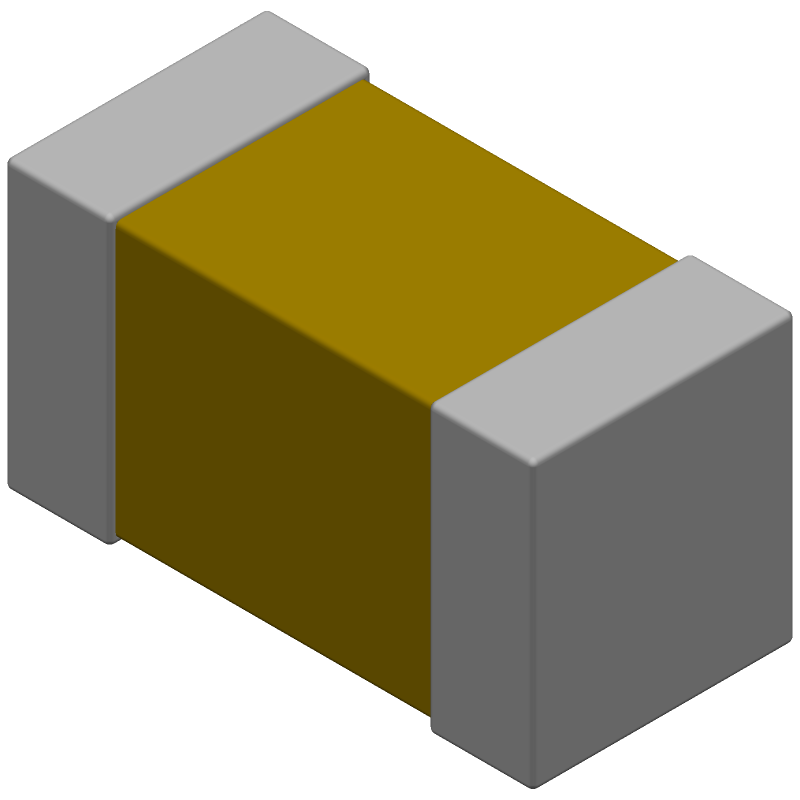

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0603C470J5GACAUTO7411 Part Data Attributes

Parametric Data
C0603C470J5GACAUTO7411 KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0603C470J5GACAUTO7411 KEMET Corporation Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0603 (1608 mm), -55º ~ +125ºC, 13" Special Reel/Unmarked
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer KEMET
Capacitance 0.000047 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PUNCHED PAPER, 13 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for C0603C470J5GACAUTO7411

This table gives cross-reference parts and alternative options found for C0603C470J5GACAUTO7411. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0603C470J5GACAUTO7411, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0603Y0500470JCR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0603, CHIP C0603C470J5GACAUTO7411 vs 0603Y0500470JCR
0603H0500470JCR Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0603, CHIP C0603C470J5GACAUTO7411 vs 0603H0500470JCR
CL10C470JB8ANO Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603, C0603C470J5GACAUTO7411 vs CL10C470JB8ANO
0603Y0500470JQT Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000047uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT C0603C470J5GACAUTO7411 vs 0603Y0500470JQT
C0603COG500-470JPB6P VENKEL LTD Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603, C0603C470J5GACAUTO7411 vs C0603COG500-470JPB6P
CL10C470JB8ANND Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603 C0603C470J5GACAUTO7411 vs CL10C470JB8ANND
CL10C470JB8SNNE Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603, C0603C470J5GACAUTO7411 vs CL10C470JB8SNNE
C0603T470J5GCC7040 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603, C0603C470J5GACAUTO7411 vs C0603T470J5GCC7040
0603H0500470JCBS02A5 Knowles Capacitors Check for Price Ceramic Capacitor, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.000047uF, 0603, C0603C470J5GACAUTO7411 vs 0603H0500470JCBS02A5
C0603C470J5GAC3112 KEMET Corporation Check for Price Capacitor, Ceramic, Chip, General Purpose, 47pF, 50V, ±5%, C0G/NP0, 0603 (1608 mm), -55º ~ +125ºC C0603C470J5GACAUTO7411 vs C0603C470J5GAC3112

C0603C470J5GACAUTO7411 Frequently Asked Questions (FAQ)

  • The recommended land pattern for the C0603C470J5GACAUTO7411 capacitor is a rectangular pad with a size of 0.6mm x 0.3mm, with a non-solder mask defined (NSMD) pad shape. This can be found in the KEMET Corporation's land pattern recommendation document.

  • The C0603C470J5GACAUTO7411 capacitor is designed for high-frequency applications and has a self-resonant frequency of around 10MHz. It also has a low equivalent series resistance (ESR) of 0.1 ohms, making it suitable for high-frequency circuits.

  • Yes, the C0603C470J5GACAUTO7411 capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications. It can operate in temperatures ranging from -55°C to 125°C and has been tested for reliability and durability.

  • The maximum voltage derating for the C0603C470J5GACAUTO7411 capacitor is 80% of the rated voltage. This means that if the capacitor is rated for 16V, it should not be operated above 12.8V to ensure reliable operation.

  • The C0603C470J5GACAUTO7411 capacitor is not designed for safety-critical applications and does not have any safety certifications such as UL or IEC. It is recommended to use safety-certified capacitors for safety-critical applications.
