Capacitors / Ceramic Capacitors / C0603C334J4RACTU
Datasheets
C0603C334J4RACTU by: KEMET Corporation

Capacitor, Ceramic, Chip, General Purpose, 0.33uF, 16V, ±5%, X7R, 0603 (1608 mm), -55º ~ +125ºC, 7" Reel/Unmarked

Part Details for C0603C334J4RACTU by KEMET Corporation

Results Overview of C0603C334J4RACTU by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C0603C334J4RACTU Information

C0603C334J4RACTU by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C0603C334J4RACTU

Part # Distributor Description Stock Price Buy
DISTI # 94Y9867
Newark Cap, 0.33Μf, 16V, 5%, X7R, 0603, Capacitance:0.33Μf, Voltage Rating:16V, Ceramic Capacitor Case:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:X7R, Product Range:C Series Kemet, Operating Temperature Rohs Compliant: Yes |Kemet C0603C334J4RACTU RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape 24495
  • 10 $0.1150
$0.1150 Buy Now
DISTI # 63R9254
Newark Mlcc Capacitor, 0.33Uf, 16V, X7R, 5%, 0603, Full Reel, Capacitance:0.33Μf, Voltage(Dc):16V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:X7R, Product Range:C Series Kemet Rohs Compliant: Yes |Kemet C0603C334J4RACTU RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1220
  • 5,000 $0.1150
  • 10,000 $0.1020
  • 20,000 $0.0910
  • 30,000 $0.0850
  • 50,000 $0.0780
$0.0780 / $0.1220 Buy Now
DISTI # 399-C0603C334J4RACTUCT-ND
DigiKey CAP CER 0.33UF 16V X7R 0603 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 19117
In Stock
  • 1 $0.4500
  • 10 $0.1710
  • 100 $0.1053
  • 4,000 $0.0860
$0.0860 / $0.4500 Buy Now
DISTI # 80-C0603C334J4R
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 16V 0.33uF X7R 0603 5% RoHS: Compliant 3968
  • 1 $0.1700
  • 10 $0.1000
  • 100 $0.0600
  • 500 $0.0480
  • 4,000 $0.0480
  • 24,000 $0.0380
  • 48,000 $0.0320
$0.0320 / $0.1700 Buy Now
DISTI # V72:2272_07470495
Arrow Electronics Cap Ceramic 0.33uF 16V X7R 5% Pad SMD 0603 125°C T/R RoHS: Compliant Min Qty: 98 Package Multiple: 1 Lead time: 7 Weeks Date Code: 2138 Container: Cut Strips Americas - 98
  • 98 $0.0882
$0.0882 Buy Now
DISTI # 87348328
Verical Cap Ceramic 0.33uF 16V X7R 5% Pad SMD 0603 125°C T/R RoHS: Compliant Min Qty: 310 Package Multiple: 10 Americas - 2450
  • 310 $0.2282
$0.2282 Buy Now
DISTI # 59831026
Verical Cap Ceramic 0.33uF 16V X7R 5% Pad SMD 0603 125°C T/R RoHS: Compliant Min Qty: 98 Package Multiple: 1 Date Code: 2138 Americas - 98
  • 98 $0.0882
$0.0882 Buy Now
Quest Components CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 16V, 5% +TOL, 5% -TOL, X7R, 15% TC, 0.33UF, SURFACE MOUNT, 0603 3653
  • 1 $0.2550
  • 295 $0.1360
  • 1,472 $0.1105
$0.1105 / $0.2550 Buy Now
DISTI # C0603C334J4RACTU
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT 16V 0.33uF X7R 0603 5% RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel Americas - 32000
In Stock
  • 4,000 $0.0480
  • 8,000 $0.0470
  • 24,000 $0.0380
  • 48,000 $0.0320
$0.0320 / $0.0480 Buy Now
DISTI # C0603C334J4RACTU
TME Capacitor: ceramic, MLCC, 330nF, 16V, X7R, ±5%, SMD, 0603 Min Qty: 10 2450
  • 10 $0.2650
  • 100 $0.1670
  • 1,000 $0.1190
  • 4,000 $0.0920
$0.0920 / $0.2650 Buy Now
ComSIT USA AVAILABLE EU 141
RFQ

Part Details for C0603C334J4RACTU

C0603C334J4RACTU CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

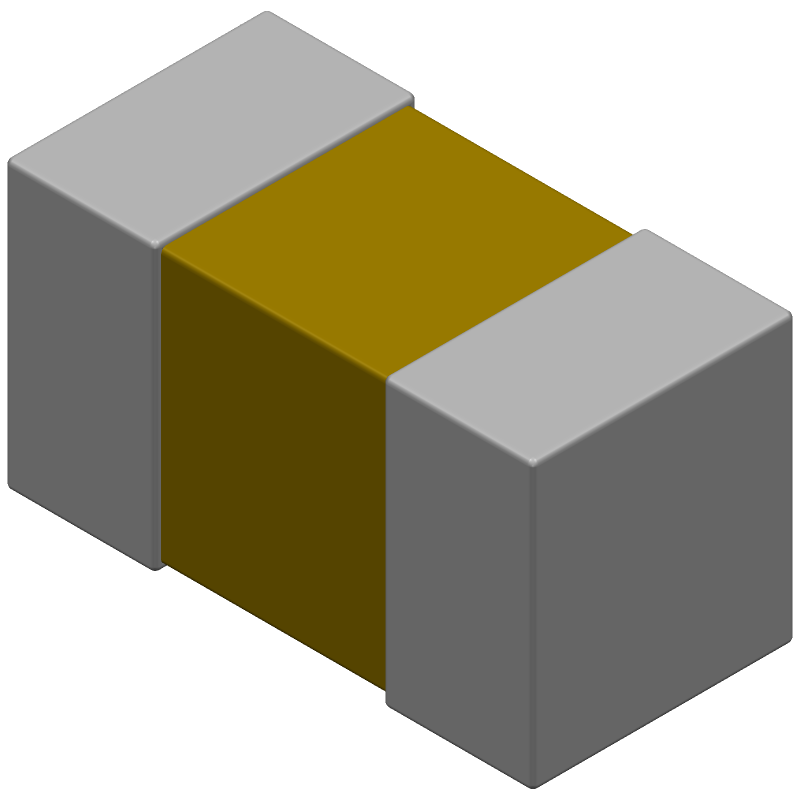

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0603C334J4RACTU Part Data Attributes

Parametric Data
C0603C334J4RACTU KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0603C334J4RACTU KEMET Corporation Capacitor, Ceramic, Chip, General Purpose, 0.33uF, 16V, ±5%, X7R, 0603 (1608 mm), -55º ~ +125ºC, 7" Reel/Unmarked
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Part Package Code 0603
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer KEMET
Capacitance 0.33 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e3
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PUNCHED PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 16 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for C0603C334J4RACTU

This table gives cross-reference parts and alternative options found for C0603C334J4RACTU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0603C334J4RACTU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C0603C334J4RAC7040 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs C0603C334J4RAC7040
C0603T334J4RAC7013 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs C0603T334J4RAC7013
CS1608X7R334J160NBB Samwha Electronics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs CS1608X7R334J160NBB
C0603X334J4RAL KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP C0603C334J4RACTU vs C0603X334J4RAL
223878615556 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs 223878615556
C0603C334J4RAL KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP C0603C334J4RACTU vs C0603C334J4RAL
C0603T334J4RAL7082 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, C0603C334J4RACTU vs C0603T334J4RAL7082
0603B334J160NT Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs 0603B334J160NT
0603B334J160CB Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs 0603B334J160CB
C0603T334J4RBL7867 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.33uF, 0603, C0603C334J4RACTU vs C0603T334J4RBL7867

C0603C334J4RACTU Related Parts

C0603C334J4RACTU Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C0603C334J4RACTU capacitor is between 260°C to 280°C for a maximum of 10 seconds.

  • Yes, the C0603C334J4RACTU capacitor is suitable for high-reliability applications due to its construction and materials, which meet the requirements of various industry standards such as MIL-PRF-123 and IEC 60384-4.

  • Yes, the C0603C334J4RACTU capacitor is designed to withstand high-vibration environments, with a vibration frequency range of 10-2000 Hz and an acceleration of 20 G.

  • Yes, the C0603C334J4RACTU capacitor is compatible with lead-free soldering processes, with a melting point of 217°C to 221°C.

  • The maximum operating temperature for the C0603C334J4RACTU capacitor is 125°C, with a derating of capacitance and insulation resistance above 85°C.
