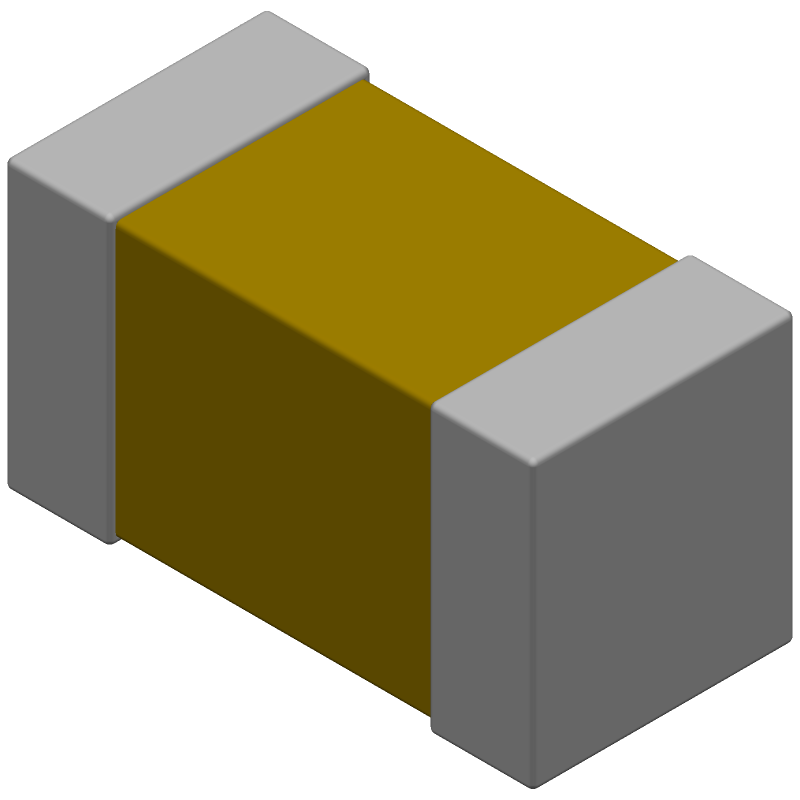

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C0603C152K8RACTU by KEMET Corporation
Results Overview of C0603C152K8RACTU by KEMET Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C0603C152K8RACTU Information
C0603C152K8RACTU by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C0603C152K8RACTU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78H7852
|
Newark | Capacitor, ceramic,1.5Nf,10Vdc,10-% Tol,10+% Tol, x7R-Tc Code,-15,15%-Tc Rohs Compliant: Yes |Kemet C0603C152K8RACTU RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0410 / $0.0600 | Buy Now |
|
DISTI #
399-C0603C152K8RACTUTR-ND
|
DigiKey | CAP CER 1500PF 10V X7R 0603 Min Qty: 4000 Lead time: 12 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0580 | Buy Now |
|
DISTI #
C0603C152K8RACTU
|
Avnet Americas | Multilayer Ceramic Capacitor, 1500 pF, 10 V, ? 10%, X7R, 0603 [1608 Metric] - Tape and Reel (Alt: C0603C152K8RACTU) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 19 Weeks, 0 Days Container: Reel | 0 |
|
$0.0547 / $0.0559 | Buy Now |
|
DISTI #
80-C0603C152K8R
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 10V 1500pF 0603 X7R 10% RoHS: Compliant | 0 |
|
$0.0510 / $0.2900 | Order Now |
Part Details for C0603C152K8RACTU
C0603C152K8RACTU CAD Models
C0603C152K8RACTU Part Data Attributes
|
|
C0603C152K8RACTU
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C0603C152K8RACTU
KEMET Corporation
Capacitor, Ceramic, Chip, General Purpose, 1500pF, 6.3V, ±10%, X7R, 0603 (1608 mm), -55º ~ +125ºC, 7" Reel/Unmarked
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Part Package Code | 0603 | |
| Package Description | , 0603 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 19 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.0015 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.8 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 10 V | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.8 mm |
Alternate Parts for C0603C152K8RACTU
This table gives cross-reference parts and alternative options found for C0603C152K8RACTU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0603C152K8RACTU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| C0603Y152K8RAL7411 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C0603C152K8RACTU vs C0603Y152K8RAL7411 |
| C0603T152K8RAL7081 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C0603C152K8RACTU vs C0603T152K8RAL7081 |
| C0603S152K8RAC7411 | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0015uF, 0603, | C0603C152K8RACTU vs C0603S152K8RAC7411 |
| C0603T152K8RCL7040 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0015uF, 0603, | C0603C152K8RACTU vs C0603T152K8RCL7040 |
| C0603C152K8RAC7411 | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0015uF, 0603, | C0603C152K8RACTU vs C0603C152K8RAC7411 |
| C0603Y152K8RAL7082 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C0603C152K8RACTU vs C0603Y152K8RAL7082 |
| 0603B152K100CT | Fenghua (HK) Electronics Ltd | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0015uF, Surface Mount, 0603, CHIP | C0603C152K8RACTU vs 0603B152K100CT |
| C0603T152K8RAC7081 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C0603C152K8RACTU vs C0603T152K8RAC7081 |
| CL10B152KPNS | Samsung Electro-Mechanics | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0015uF, 0603, | C0603C152K8RACTU vs CL10B152KPNS |
| C0603Y152K8RAC3325 | KEMET Corporation | Check for Price | Ceramic Capacitor, Ceramic, 10V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.0015uF, 0603, | C0603C152K8RACTU vs C0603Y152K8RAC3325 |
