Capacitors / Ceramic Capacitors / C0603C103K5RAL
Datasheets
C0603C103K5RAL by: KEMET Corporation

Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP

Part Details for C0603C103K5RAL by KEMET Corporation

Results Overview of C0603C103K5RAL by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C0603C103K5RAL Information

C0603C103K5RAL by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for C0603C103K5RAL

Part # Distributor Description Stock Price Buy
DISTI # 80-C0603C103K5RALTU
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 0.01uF X7R 0603 10% RoHS: Not Compliant 2834
  • 1 $0.5400
  • 10 $0.3540
  • 100 $0.2490
  • 500 $0.2030
  • 1,000 $0.1950
  • 4,000 $0.1650
  • 8,000 $0.1490
  • 48,000 $0.1380
$0.1380 / $0.5400 Buy Now
DISTI # V99:2348_16974944
Arrow Electronics Cap Ceramic 0.01uF 50V X7R 10% Pad SMD 0603 125°C Bulk RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 1825 Americas - 234
  • 1 $0.0056
$0.0056 Buy Now
Quest Components CAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.01 uF, SURFACE MOUNT, 0603 3768
  • 1 $0.1800
  • 418 $0.0960
  • 2,084 $0.0780
$0.0780 / $0.1800 Buy Now

Part Details for C0603C103K5RAL

C0603C103K5RAL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

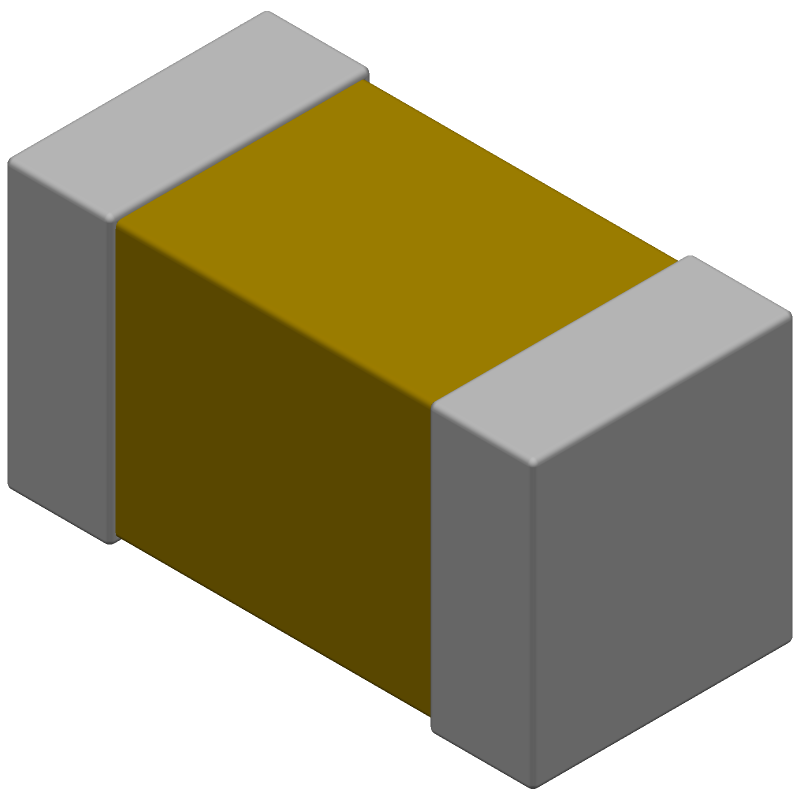

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0603C103K5RAL Part Data Attributes

Parametric Data
C0603C103K5RAL KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0603C103K5RAL KEMET Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description CHIP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer KEMET
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.8 mm
JESD-609 Code e0
Length 1.6 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method Bulk
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 50 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish TIN LEAD OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.8 mm

Alternate Parts for C0603C103K5RAL

This table gives cross-reference parts and alternative options found for C0603C103K5RAL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0603C103K5RAL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CM105X7R103K50KH KYOCERA Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs CM105X7R103K50KH
C0603S103K5RAL7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs C0603S103K5RAL7411
C0603C103K5RAL7411 KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, C0603C103K5RAL vs C0603C103K5RAL7411
0603B103K500PT PILKOR Electronics Co Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs 0603B103K500PT
C0603T103K5RALTM KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP C0603C103K5RAL vs C0603T103K5RALTM
CL10B103KB8ANND Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, X7R, -/+15ppm/Cel TC, 0.01uF, 0603 C0603C103K5RAL vs CL10B103KB8ANND
MCJCU168BB7103KTPA1J TAIYO YUDEN Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0603, CHIP C0603C103K5RAL vs MCJCU168BB7103KTPA1J
CL10B103KB8GNNE Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs CL10B103KB8GNNE
0603B103K500NB Hitano Enterprise Corp Check for Price Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs 0603B103K500NB
0603J0500103KXC Knowles Capacitors Check for Price Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0603, C0603C103K5RAL vs 0603J0500103KXC

C0603C103K5RAL Related Parts

C0603C103K5RAL Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the C0603C103K5RAL capacitor is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the C0603C103K5RAL capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The C0603C103K5RAL capacitor is rated for operation up to 125°C, but it's not recommended for use in environments above 125°C without derating the voltage and current ratings.

  • The C0603C103K5RAL capacitor has an MSL rating of 1, which means it can withstand normal humidity and temperature conditions without special handling or storage requirements.

  • Yes, the C0603C103K5RAL capacitor is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives.
