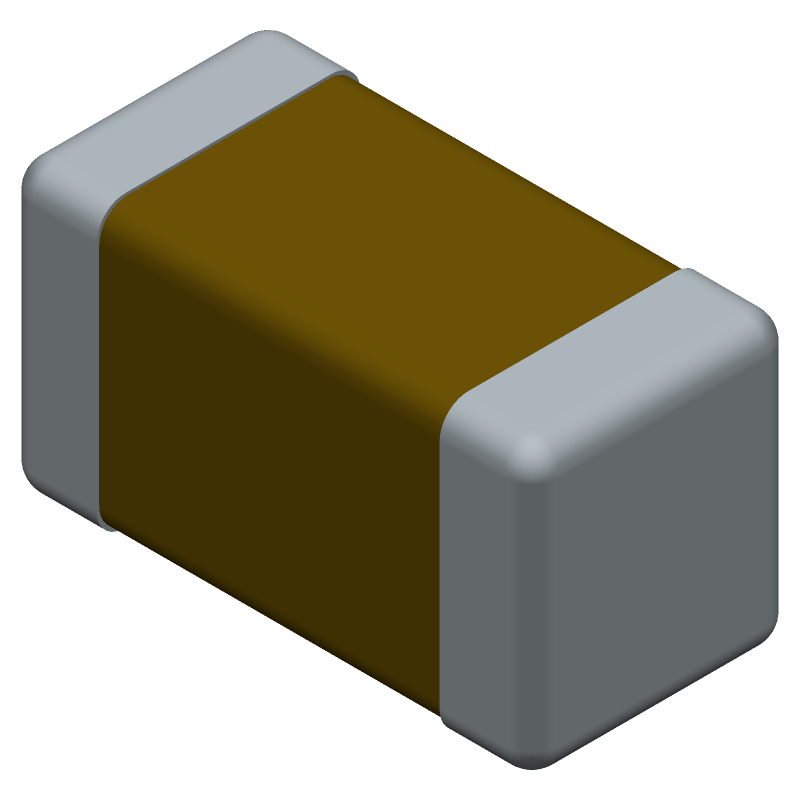

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C0402X6S1A101K020BC by TDK Corporation
Results Overview of C0402X6S1A101K020BC by TDK Corporation
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
C0402X6S1A101K020BC Information
C0402X6S1A101K020BC by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C0402X6S1A101K020BC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
445-13541-1-ND
|
DigiKey | CAP CER 100PF 10V X6S 01005 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
34588 In Stock |
|
$0.0402 / $0.1900 | Buy Now |
|
DISTI #
C0402X6S1A101K020BC
|
Avnet Americas | - Tape and Reel (Alt: C0402X6S1A101K020BC) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.0251 / $0.0286 | Buy Now |
|
DISTI #
810-C0402X6S1A101K0C
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 01005 10V 100pF X6S 10% T: 0.2mm RoHS: Compliant | 0 |
|
Order Now |
Part Details for C0402X6S1A101K020BC
C0402X6S1A101K020BC CAD Models
C0402X6S1A101K020BC Part Data Attributes
|
|
C0402X6S1A101K020BC
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
C0402X6S1A101K020BC
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 10V, 10% +Tol, 10% -Tol, X6S, 22% TC, 0.0001uF, Surface Mount, 01005, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.0001 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.2 mm | |
| JESD-609 Code | e3 | |
| Length | 0.4 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 10 V | |
| Size Code | 0201 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X6S | |
| Temperature Coefficient | 22% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.2 mm |
