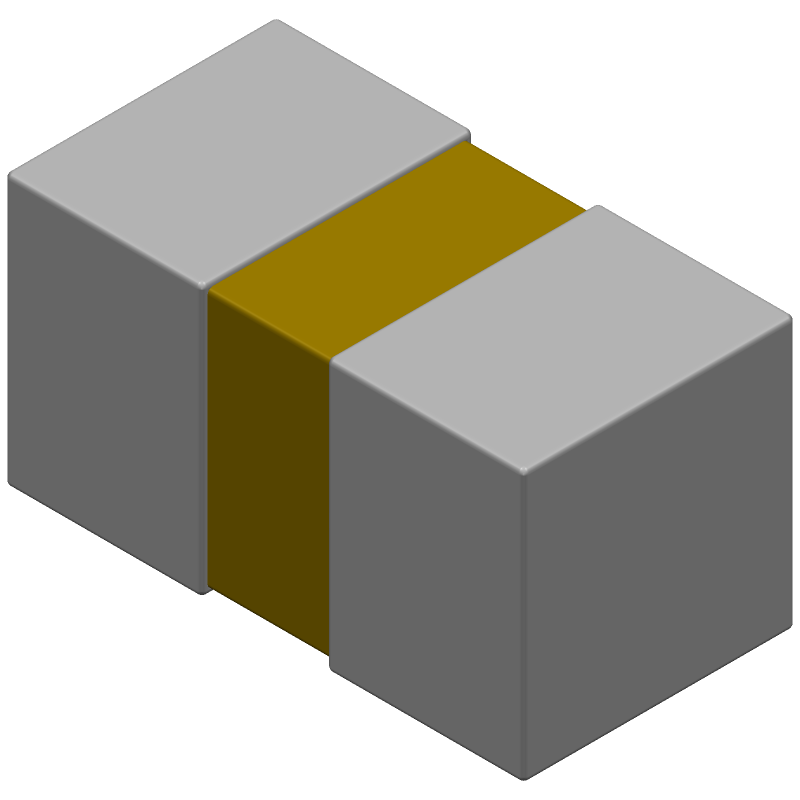

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C0402C392J4JACAUTO by KEMET Corporation
Results Overview of C0402C392J4JACAUTO by KEMET Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
C0402C392J4JACAUTO Information
C0402C392J4JACAUTO by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C0402C392J4JACAUTO
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
30AK8181
|
Newark | Cap, 0.0039Uf, 16V, Mlcc, 0402, Capacitance:3900Pf, Voltage(Dc):16V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:U2J, Product Range:C Series Kemet, Product Length:1Mm Rohs Compliant: Yes |Kemet C0402C392J4JACAUTO RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 10000 |
|
$0.0360 | Buy Now |
|
DISTI #
399-C0402C392J4JACAUTOCT-ND
|
DigiKey | CAP CER 3900PF 25V U2J 0402 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0926 / $0.0954 | Buy Now |
|
DISTI #
80-C0402C392J4JAUTO
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 16Vo 0.0039uF U2J 5% 0402 AEC-Q200 RoHS: Compliant | 9222 |
|
$0.0930 / $0.4600 | Buy Now |
|
DISTI #
V72:2272_26610923
|
Arrow Electronics | Cap Ceramic 0.0039uF 16V U2J 5% Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2216 Container: Cut Strips | Americas - 6846 |
|
$0.0338 / $0.0943 | Buy Now |
|
DISTI #
66960428
|
Verical | Cap Ceramic 0.0039uF 16V U2J 5% Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1389 Package Multiple: 1 | Americas - 10000 |
|
$0.0485 / $0.0526 | Buy Now |
|
DISTI #
61648030
|
Verical | Cap Ceramic 0.0039uF 16V U2J 5% Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 65 Package Multiple: 1 Date Code: 2216 | Americas - 6846 |
|
$0.0338 / $0.0558 | Buy Now |
|
DISTI #
SMC-C0402C392J4JACAUTO
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 396 |
|
RFQ | |
|
DISTI #
C0402C392J4JACAUTO
|
Avnet Abacus | - Tape and Reel (Alt: C0402C392J4JACAUTO) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 24 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for C0402C392J4JACAUTO
C0402C392J4JACAUTO CAD Models
C0402C392J4JACAUTO Part Data Attributes
|
|
C0402C392J4JACAUTO
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C0402C392J4JACAUTO
KEMET Corporation
Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, U2J, -750+/-120ppm/Cel TC, 0.0039uF, Surface Mount, 0402, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.0039 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.5 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, Punched Paper, 7 Inch | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 15 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | U2J | |
| Temperature Coefficient | -750+/-120ppm/Cel ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.5 mm |
C0402C392J4JACAUTO Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C0402C392J4JACAUTO capacitor is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the C0402C392J4JACAUTO capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The C0402C392J4JACAUTO capacitor is rated for operation up to 125°C, but derating is required for temperatures above 85°C. Consult the datasheet for derating guidelines.
-
The C0402C392J4JACAUTO capacitor has an MSL rating of 1, which means it can be exposed to a maximum of 30°C/60% RH for 192 hours without requiring bake-out before reflow soldering.
-
Yes, the C0402C392J4JACAUTO capacitor is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.
