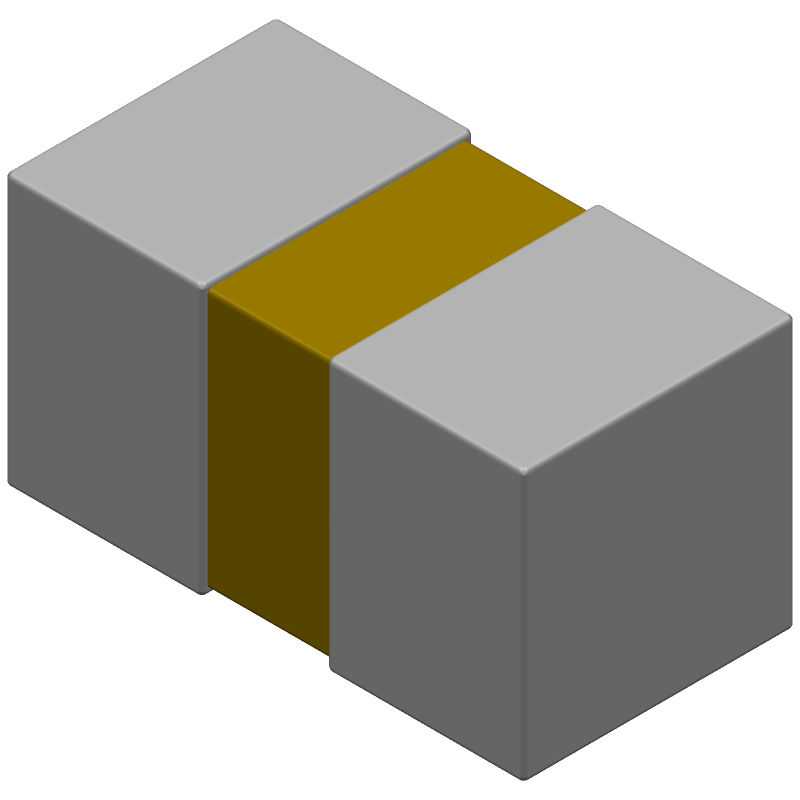

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for C0402C332K5RACTU by KEMET Corporation
Results Overview of C0402C332K5RACTU by KEMET Corporation
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
C0402C332K5RACTU Information
C0402C332K5RACTU by KEMET Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for C0402C332K5RACTU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50AC8418
|
Newark | Cap, Mlcc, X7R, 3300Pf, 50V, 0402, Capacitance:3300Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:C Series Kemet, Product Length:1.02Mm Rohs Compliant: Yes |Kemet C0402C332K5RACTU RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 52663 |
|
$0.0030 | Buy Now |
|
DISTI #
36X2588
|
Newark | Multilayer Ceramic Capacitor, C Series, 3300 Pf, - 10%, X7R, 50 V, 0402 [1005 Metric] Rohs Compliant: Yes |Kemet C0402C332K5RACTU RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel | 40000 |
|
$0.0060 | Buy Now |
|
DISTI #
399-C0402C332K5RACTUCT-ND
|
DigiKey | CAP CER 3300PF 50V X7R 0402 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
71669 In Stock |
|
$0.0047 / $0.1000 | Buy Now |
|
DISTI #
C0402C332K5RACTU
|
Avnet Americas | Multilayer Ceramic Capacitor, 3300 pF, 50 V, ? 10%, X7R, 0402 [1005 Metric] - Tape and Reel (Alt: C0402C332K5RACTU) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 21 Weeks, 0 Days Container: Reel | 710000 |
|
$0.0028 | Buy Now |
|
DISTI #
80-C0402C332K5R
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 50V 3300pF X7R 0402 10% RoHS: Compliant | 34047 |
|
$0.0050 / $0.1000 | Buy Now |
|
DISTI #
V36:1790_07471263
|
Arrow Electronics | Cap Ceramic 0.0033uF 50V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 20 Weeks Date Code: 2518 | Americas - 50000 |
|
$0.0039 / $0.0049 | Buy Now |
|
DISTI #
V72:2272_07471263
|
Arrow Electronics | Cap Ceramic 0.0033uF 50V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 274 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2320 Container: Cut Strips | Americas - 274 |
|
$0.0055 | Buy Now |
|
DISTI #
70097114
|
RS | 0402 C 3.3nF Ceramic Multilayer Capacitor, 50 V, +125degC, X7R Dielec, +/-10% Min Qty: 10000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0050 / $0.0060 | RFQ |
|
DISTI #
40080757
|
Verical | Cap Ceramic 0.0033uF 50V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 16667 Package Multiple: 1 | Americas - 52663 |
|
$0.0039 / $0.0040 | Buy Now |
|
DISTI #
89488177
|
Verical | Cap Ceramic 0.0033uF 50V X7R 10% Pad SMD 0402 125°C T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2518 | Americas - 50000 |
|
$0.0049 | Buy Now |
Part Details for C0402C332K5RACTU
C0402C332K5RACTU CAD Models
C0402C332K5RACTU Part Data Attributes
|
|
C0402C332K5RACTU
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
C0402C332K5RACTU
KEMET Corporation
Capacitor, Ceramic, Chip, General Purpose, 3300pF, 50V, ±10%, X7R, 0402 (1005 mm), -55º ~ +125ºC, 7" Reel/Unmarked
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Part Package Code | 0402 | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | KEMET | |
| Capacitance | 0.0033 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.5 mm | |
| JESD-609 Code | e3 | |
| Length | 1 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | YES | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PUNCHED PAPER, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0402 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.5 mm |
Alternate Parts for C0402C332K5RACTU
This table gives cross-reference parts and alternative options found for C0402C332K5RACTU. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0402C332K5RACTU, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GCM155R71H332KA37D | Murata Manufacturing Co Ltd | $0.0091 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT | C0402C332K5RACTU vs GCM155R71H332KA37D |
| GRT155R71H332KE01D | Murata Manufacturing Co Ltd | $0.0111 | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP | C0402C332K5RACTU vs GRT155R71H332KE01D |
| MSASU105SB7332KFNA01 | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP | C0402C332K5RACTU vs MSASU105SB7332KFNA01 |
| C0402T332K5RALTU | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP | C0402C332K5RACTU vs C0402T332K5RALTU |
| UMK105B7332KV-F | TAIYO YUDEN | Check for Price | Capacitor, Ceramic, Chip, General Purpose, 3300pF, 50V, ±10%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/2mm pitch | C0402C332K5RACTU vs UMK105B7332KV-F |
| CS0402KRX7R9BB332 | YAGEO Corporation | Check for Price | Ceramic Capacitor, Ceramic, | C0402C332K5RACTU vs CS0402KRX7R9BB332 |
| MBASU105SB7332KFNA18 | TAIYO YUDEN | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP | C0402C332K5RACTU vs MBASU105SB7332KFNA18 |
| GRT155R71H332KE01J | Murata Manufacturing Co Ltd | Check for Price | CAPACITOR, CERAMIC, MULTILAYER, 50 V, X7R, 0.0033 uF, SURFACE MOUNT, 0402, CHIP | C0402C332K5RACTU vs GRT155R71H332KE01J |
| CC0402KPX7R9BB332 | YAGEO Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT | C0402C332K5RACTU vs CC0402KPX7R9BB332 |
| GCG155R71H332KA01D | Murata Manufacturing Co Ltd | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0033uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT | C0402C332K5RACTU vs GCG155R71H332KA01D |
C0402C332K5RACTU Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the C0402C332K5RACTU capacitor is between 260°C to 280°C for a maximum of 10 seconds.
-
Yes, the C0402C332K5RACTU capacitor is suitable for high-reliability applications due to its construction and materials, which meet the requirements of various industry standards such as MIL-PRF-55681 and IEC 60384-16.
-
Yes, the C0402C332K5RACTU capacitor is designed to withstand high-vibration environments, with a vibration frequency range of 10-2000 Hz and an acceleration of 20 G.
-
The C0402C332K5RACTU capacitor has an MSL rating of 1, which means it can withstand a maximum of 30 days in a humidity-controlled environment before soldering.
-
Yes, the C0402C332K5RACTU capacitor is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
