Capacitors / Ceramic Capacitors / C0402C103J4RAL7867
Datasheets
C0402C103J4RAL7867 by: KEMET Corporation

Cap,Ceramic,10nF,16VDC,5% -Tol,5% +Tol,X7R TC Code,-15,15% TC,0402 Case

Part Details for C0402C103J4RAL7867 by KEMET Corporation

Results Overview of C0402C103J4RAL7867 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

C0402C103J4RAL7867 Information

C0402C103J4RAL7867 by KEMET Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Part Details for C0402C103J4RAL7867

C0402C103J4RAL7867 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

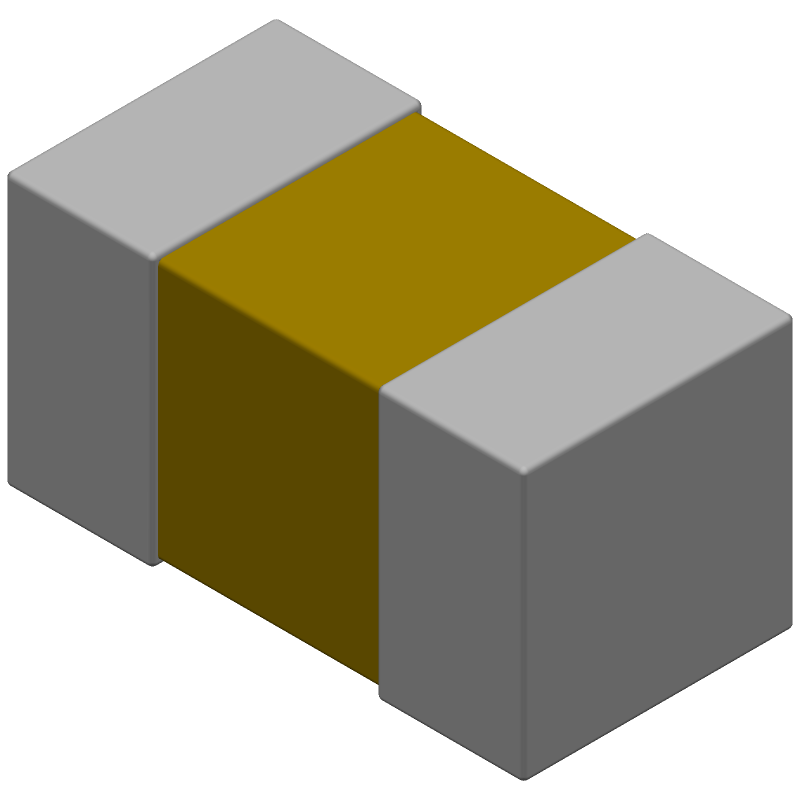

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

C0402C103J4RAL7867 Part Data Attributes

Parametric Data
C0402C103J4RAL7867 KEMET Corporation
Buy Now Datasheet
Compare Parts:
C0402C103J4RAL7867 KEMET Corporation Cap,Ceramic,10nF,16VDC,5% -Tol,5% +Tol,X7R TC Code,-15,15% TC,0402 Case
Pbfree Code No
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description , 0402
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Samacsys Manufacturer KEMET
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e0
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 16 V
Size Code 0402
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 0.5 mm

Alternate Parts for C0402C103J4RAL7867

This table gives cross-reference parts and alternative options found for C0402C103J4RAL7867. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of C0402C103J4RAL7867, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CL05B103JO5ANNS Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, C0402C103J4RAL7867 vs CL05B103JO5ANNS
C0402T103J4RACTU KEMET Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT C0402C103J4RAL7867 vs C0402T103J4RACTU
CL05B103JO5GNNB Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, C0402C103J4RAL7867 vs CL05B103JO5GNNB
0402B103J160N Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP C0402C103J4RAL7867 vs 0402B103J160N
0402B103J160ST Fenghua (HK) Electronics Ltd Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP C0402C103J4RAL7867 vs 0402B103J160ST
C0402T103J4RCL7867 KEMET Corporation Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, C0402C103J4RAL7867 vs C0402T103J4RCL7867
CL05B103JO5NNNL Samsung Electro-Mechanics Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, X7R, -/+15ppm/Cel TC, 0.01uF, 0402 C0402C103J4RAL7867 vs CL05B103JO5NNNL
GRM155R71C103JA01D Murata Manufacturing Co Ltd Check for Price Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 16V, ±5%, X7R, 0402 (1005 mm), 0.020"T, -55º ~ +125ºC, 7" Reel/Paper Tape C0402C103J4RAL7867 vs GRM155R71C103JA01D
223878715536 YAGEO Corporation Check for Price Ceramic Capacitor, Multilayer, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0402, CHIP C0402C103J4RAL7867 vs 223878715536
0402B103J160NU Hitano Enterprise Corp Check for Price Ceramic Capacitor, Ceramic, 16V, 5% +Tol, 5% -Tol, X7R, -/+15ppm/Cel TC, 0.01uF, 0402, C0402C103J4RAL7867 vs 0402B103J160NU
