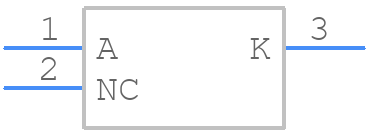

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX84C2V4LT1G by onsemi
Results Overview of BZX84C2V4LT1G by onsemi
- Distributor Offerings: (40 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BZX84C2V4LT1G Information
BZX84C2V4LT1G by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84C2V4LT1G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
45J0634
|
Newark | Zener Diode, 225Mw, 2.4V, Sot-23, Zener Voltage Nom:2.4V, Power Dissipation:225Mw, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Bzx84Cxxxlt1G Series Rohs Compliant: Yes |Onsemi BZX84C2V4LT1G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 436 |
|
$0.0110 | Buy Now |
|
DISTI #
29X5985
|
Newark | Diode, Zener, 2.4V, 0.225W, Sot-23, Zener Voltage Nom:2.4V, Power Dissipation:225Mw, Diode Case Style:Sot-23, No. Of Pins:3Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Bzx84Cxxxlt1G Series Rohs Compliant: Yes |Onsemi BZX84C2V4LT1G RoHS: Compliant Min Qty: 39000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0140 | Buy Now |
|
DISTI #
BZX84C2V4LT1GOSCT-ND
|
DigiKey | DIODE ZENER 2.4V 250MW SOT23-3 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
26875 In Stock |
|
$0.0120 / $0.1200 | Buy Now |
|
DISTI #
BZX84C2V4LT1G
|
Avnet Americas | Zener Single Diode, 2.4 V, 250 mW, SOT-23, 3 Pins, 150 ?C - Tape and Reel (Alt: BZX84C2V4LT1G) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks, 0 Days Container: Reel | 9000 |
|
$0.0110 / $0.0120 | Buy Now |
|
DISTI #
45J0634
|
Avnet Americas | Zener Single Diode, 2.4 V, 250 mW, SOT-23, 3 Pins, 150 ?C - Product that comes on tape, but is not reeled (Alt: 45J0634) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks, 2 Days Container: Ammo Pack | 436 Partner Stock |
|
$0.0290 | Buy Now |
|
DISTI #
863-BZX84C2V4LT1G
|
Mouser Electronics | Zener Diodes 2.4V 250mW RoHS: Compliant | 17324 |
|
$0.0110 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_07278628
|
Arrow Electronics | Zener Diode Single 2.4V 5% 100Ohm 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2132 Container: Cut Strips | Americas - 1944 |
|
$0.0182 / $0.0492 | Buy Now |
|
DISTI #
V79:2366_26240181
|
Arrow Electronics | Zener Diode Single 2.4V 5% 100Ohm 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2132 | Americas - 5 |
|
$0.0097 / $0.0180 | Buy Now |
|
DISTI #
70100400
|
RS | Diode, Zener, Vr 2.4V, If 10mA, Pkg SOT-23 (TO-236),Vf 0.9V, Cj 450pF, Tj +150degc Min Qty: 3000 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0140 | RFQ |
|
|
Onlinecomponents.com | BZX84C2V4LT1 Series 225 mW 10 mA 2.4 V SMT Zener Voltage Regulator - SOT-23-3 RoHS: Compliant |
60000 In Stock |
|
$0.0116 / $0.0144 | Buy Now |
Part Details for BZX84C2V4LT1G
BZX84C2V4LT1G CAD Models
BZX84C2V4LT1G Part Data Attributes
|
|
BZX84C2V4LT1G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BZX84C2V4LT1G
onsemi
250 mW; Zener Diode Voltage Regulator 2.4 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-23 (TO-236) 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 318 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 5 Weeks, 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 100 Ω | |
| JEDEC-95 Code | TO-236AB | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.25 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | UL RECOGNIZED | |
| Reference Voltage-Nom | 2.4 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 8.33% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX84C2V4LT1G
This table gives cross-reference parts and alternative options found for BZX84C2V4LT1G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84C2V4LT1G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX84C2V7LT1 | onsemi | Check for Price | 250 mW 2.7 V ±5% Zener Diode Voltage Regulator, SOT-23 (TO-236) 3 LEAD, 3000-REEL | BZX84C2V4LT1G vs BZX84C2V7LT1 |
| JAN1N4976DUS | Microchip Technology Inc | $30.3500 | Zener Diode, 56V V(Z), 1%, 5W, Silicon, Unidirectional | BZX84C2V4LT1G vs JAN1N4976DUS |
| BZX84B4V7-E3-08 | Vishay Intertechnologies | $0.0561 | Zener Diode, 4.7V V(Z), 2%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BZX84C2V4LT1G vs BZX84B4V7-E3-08 |
| BZX84C5V6-G3-18 | Vishay Intertechnologies | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.3W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C2V4LT1G vs BZX84C5V6-G3-18 |
| JANTXV1N4976DUS | Microchip Technology Inc | $52.6585 | Zener Diode, 56V V(Z), 1%, 5W, Silicon, Unidirectional | BZX84C2V4LT1G vs JANTXV1N4976DUS |
| BZX84B5V1LT1G | onsemi | $0.0287 | 250 mW; Zener Diode Voltage Regulator 5.1 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL | BZX84C2V4LT1G vs BZX84B5V1LT1G |
| JANS1N4976DUS | Microchip Technology Inc | $474.0096 | Zener Diode, 56V V(Z), 1%, 5W, Silicon, Unidirectional | BZX84C2V4LT1G vs JANS1N4976DUS |
| BZX84C5V6-G3-08 | Vishay Intertechnologies | Check for Price | Zener Diode, 5.6V V(Z), 5%, 0.3W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C2V4LT1G vs BZX84C5V6-G3-08 |
| JANTX1N4976DUS | Microchip Technology Inc | $31.6813 | Zener Diode, 56V V(Z), 1%, 5W, Silicon, Unidirectional | BZX84C2V4LT1G vs JANTX1N4976DUS |
| BZX84C2V4-G3-08 | Vishay Intertechnologies | Check for Price | Zener Diode, 2.4V V(Z), 5%, 0.3W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C2V4LT1G vs BZX84C2V4-G3-08 |
BZX84C2V4LT1G Frequently Asked Questions (FAQ)
-
The recommended land pattern for the BZX84C2V4LT1G is a rectangular pad with a size of 0.6 mm x 0.3 mm, with a solder mask clearance of 0.1 mm. The pad should be centered on the component.
-
To handle the ESD sensitivity of the BZX84C2V4LT1G, it is recommended to use ESD protection devices, such as TVS diodes, and to follow proper handling and storage procedures to prevent damage from electrostatic discharge.
-
The maximum operating temperature range for the BZX84C2V4LT1G is -40°C to 150°C, with a maximum junction temperature of 150°C.
-
Yes, the BZX84C2V4LT1G is suitable for high-reliability applications, such as automotive, industrial, and aerospace, due to its high reliability and robustness.
-
To ensure the BZX84C2V4LT1G is properly soldered, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes thermal stress and ensures good wetting of the solder.
