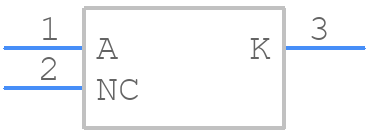

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX84C24 by Diotec Semiconductor AG
Results Overview of BZX84C24 by Diotec Semiconductor AG
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
Automotive
BZX84C24 Information
BZX84C24 by Diotec Semiconductor AG is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84C24
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4878-BZX84C24-ND
|
DigiKey | DIODE ZENER 24V 300MW SOT23 Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
2948 In Stock |
|
$0.0353 / $0.1600 | Buy Now |
|
DISTI #
637-BZX84C24
|
Mouser Electronics | Zener Diodes Zener, SOT-23, 24V, 0.3W, 5% RoHS: Compliant | 8065 |
|
$0.0200 / $0.1600 | Buy Now |
|
DISTI #
E02:0323_06675011
|
Arrow Electronics | Diode Zener Single 24.2V 5% 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 6 Weeks Date Code: 2428 | Europe - 3000 |
|
$0.0129 / $0.0265 | Buy Now |
|
|
Onlinecomponents.com | Zener Diode - SOT-23 - 24V - 0.3W - 5% RoHS: Compliant | 24000 Factory Stock |
|
$0.0126 / $0.0194 | Buy Now |
|
DISTI #
82780426
|
Verical | Diode Zener Single 24.2V 5% 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2428 | Americas - 3000 |
|
$0.0129 / $0.0262 | Buy Now |
|
DISTI #
87345874
|
Verical | Diode Zener Single 24.2V 5% 300mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 2110 Package Multiple: 1 | Americas - 2778 |
|
$0.0225 / $0.0332 | Buy Now |
|
DISTI #
BZX84C24-DIO
|
TME | Diode: Zener, 0.3W, 24V, SMD, reel,tape, SOT23, single diode, BZX84C Min Qty: 25 | 4675 |
|
$0.0142 / $0.0331 | Buy Now |
|
|
Master Electronics | Zener Diode - SOT-23 - 24V - 0.3W - 5% RoHS: Compliant | 24000 Factory Stock |
|
$0.0126 / $0.0194 | Buy Now |
Part Details for BZX84C24
BZX84C24 CAD Models
BZX84C24 Part Data Attributes
|
|
BZX84C24
Diotec Semiconductor AG
Buy Now
Datasheet
|
Compare Parts:
BZX84C24
Diotec Semiconductor AG
Zener Diode, 24.2V V(Z), 5%, 0.3W, Silicon, Unidirectional, TO-236, ROHS COMPLIANT, PLASTIC PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIOTEC SEMICONDUCTOR AG | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Diotec | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 70 Ω | |
| JEDEC-95 Code | TO-236 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -50 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 24.2 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX84C24
This table gives cross-reference parts and alternative options found for BZX84C24. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84C24, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX84C24_R1_00001 | PanJit Semiconductor | $0.0337 | Zener Diode, 24V V(Z), 5%, 0.41W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24_R1_00001 |
| BZX84C24TA | Diodes Incorporated | Check for Price | Zener Diode, 24V V(Z), 5%, 0.33W, Silicon, Unidirectional | BZX84C24 vs BZX84C24TA |
| BZX84C24ET1G | onsemi | Check for Price | 24V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24ET1G |
| BZX84C24B | PanJit Semiconductor | Check for Price | Zener Diode, 24V V(Z), 2%, 0.41W | BZX84C24 vs BZX84C24B |
| BZX84C24-AU_R1_000A1 | PanJit Semiconductor | Check for Price | Zener Diode, 24V V(Z), 5%, 0.41W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24-AU_R1_000A1 |
| BZX84C24-V | KEC | Check for Price | Zener Diode, 24V V(Z), 2.5%, 0.3W, Silicon, Unidirectional, SOT-23, 3 PIN | BZX84C24 vs BZX84C24-V |
| BZX84C24-T3 | Sangdest Microelectronics (Nanjing) Co Ltd | Check for Price | Zener Diode, 24V V(Z), 5%, 0.35W, Silicon, Unidirectional, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24-T3 |
| BZX84-C24 | Nexperia | Check for Price | Zener Diode, 24V V(Z), 5%, 0.25W, Silicon, Unidirectional, TO-236AB | BZX84C24 vs BZX84-C24 |
| BZX84C24-V-GS08 | Vishay Intertechnologies | Check for Price | Zener Diode, 24V V(Z), 5%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24-V-GS08 |
| BZX84C24ET3 | onsemi | Check for Price | 24V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC PACKAGE-3 | BZX84C24 vs BZX84C24ET3 |
