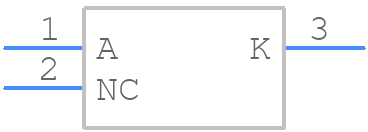

Part Symbol
-
Footprint
-

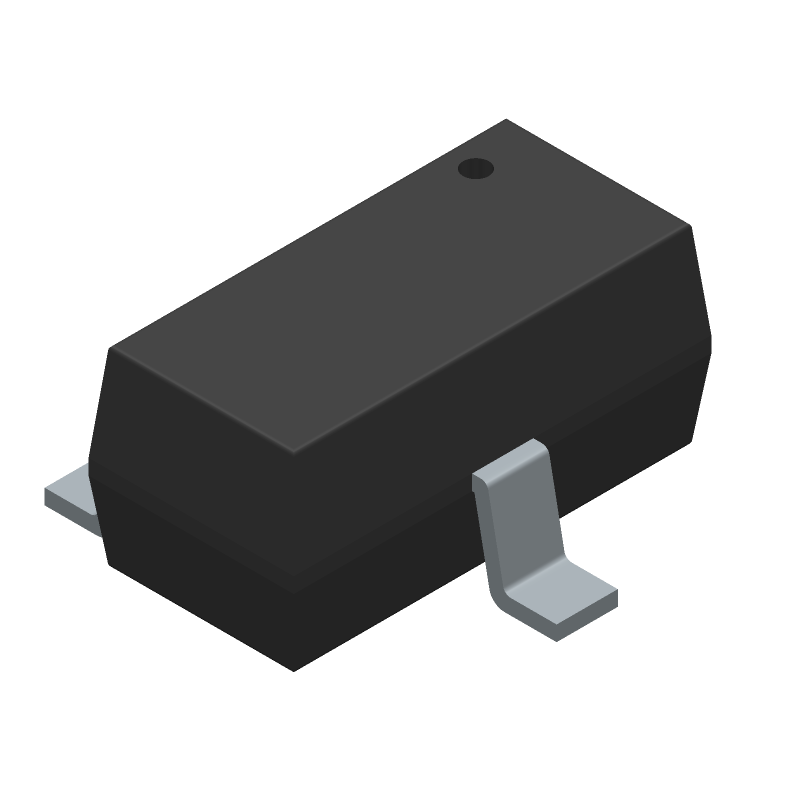

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX84C12 by SPC Multicomp
Results Overview of BZX84C12 by SPC Multicomp
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Industrial Automation
Energy and Power Systems
Renewable Energy
Electronic Manufacturing
BZX84C12 Information
BZX84C12 by SPC Multicomp is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84C12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AH2664
|
Newark | Zener Diode, 0.3W, 12V, Sot-23, Zener Voltage Vz Typ:12V, Power Dissipation Pd:300Mw, Diode Case Style:Sot-23, Zener Tolerance ±:5%, No. Of Pins:3Pins, Operating Temperature Max:150°C, Product Range:-, Automotive Qualification Rohs Compliant: Yes |Multicomp Pro BZX84C12 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.0330 / $0.0530 | Buy Now |
Part Details for BZX84C12
BZX84C12 CAD Models
BZX84C12 Part Data Attributes
|
|
BZX84C12
SPC Multicomp
Buy Now
Datasheet
|
Compare Parts:
BZX84C12
SPC Multicomp
Zener Diode, 12V V(Z), 5%, 0.3W, Silicon, Unidirectional,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MULTICOMP PRO | |
| Package Description | SOT-23, 3 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Multicomp Pro | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 25 Ω | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Voltage-Nom | 12 V | |
| Reverse Current-Max | 0.1 µA | |
| Reverse Test Voltage | 8 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Voltage Tol-Max | 5.39% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX84C12
This table gives cross-reference parts and alternative options found for BZX84C12. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84C12, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX84C12LT1 | Motorola Mobility LLC | Check for Price | 12V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, PLASTIC, CASE 318-07, 3 PIN | BZX84C12 vs BZX84C12LT1 |
| BZX84C12LT1T3 | Motorola Semiconductor Products | Check for Price | Zener Diode, 12V V(Z), 5.394%, 0.225W, Silicon, Unidirectional, PLASTIC, CASE 318-07, 3 PIN | BZX84C12 vs BZX84C12LT1T3 |
| BZX84C12LT3G | onsemi | Check for Price | 12V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236AB, LEAD FREE, PLASTIC PACKAGE-3 | BZX84C12 vs BZX84C12LT3G |
| BZX84C12LT1 | Motorola Semiconductor Products | Check for Price | Zener Diode, 12V V(Z), 5.394%, 0.225W, Silicon, Unidirectional, TO-236AB, PLASTIC, CASE 318-07, 3 PIN | BZX84C12 vs BZX84C12LT1 |
| BZX84C12S62Z | Fairchild Semiconductor Corporation | Check for Price | Zener Diode, 12V V(Z), 5%, 0.35W, Silicon, Unidirectional, | BZX84C12 vs BZX84C12S62Z |
BZX84C12 Frequently Asked Questions (FAQ)
-
The recommended footprint for the BZX84C12 is a standard SOD123 package with a pad layout of 1.3mm x 0.8mm.
-
The BZX84C12 is rated for operation up to 150°C, but it's recommended to derate the voltage and current ratings above 125°C to ensure reliability.
-
Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid overheating the component or using excessive solder.
-
The typical leakage current of the BZX84C12 is less than 1 μA at 25°C, but this can vary depending on the specific application and operating conditions.
-
Yes, the BZX84C12 can be used in switching power supplies, but ensure that the voltage and current ratings are not exceeded, and consider the component's power dissipation and thermal characteristics.
