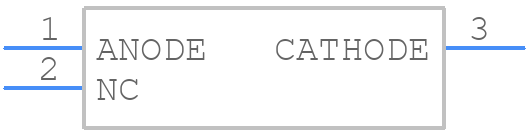

Part Symbol
-
Footprint
-

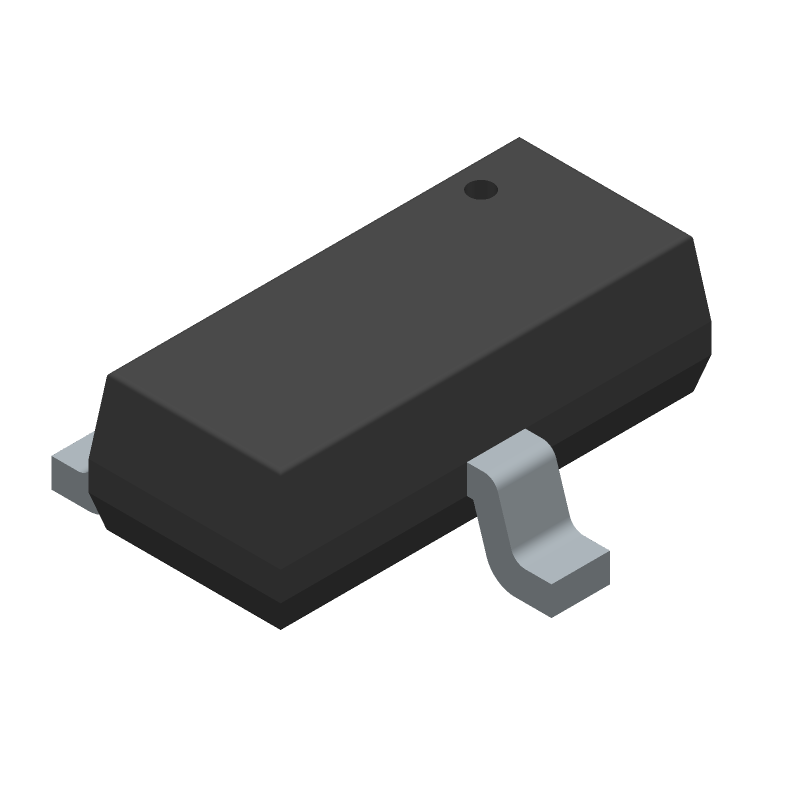

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX84B3V9-E3-08 by Vishay Intertechnologies
Results Overview of BZX84B3V9-E3-08 by Vishay Intertechnologies
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BZX84B3V9-E3-08 Information
BZX84B3V9-E3-08 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX84B3V9-E3-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09X3452
|
Newark | Zener Diode Sot23 |Vishay BZX84B3V9-E3-08 RoHS: Not Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0300 / $0.0420 | Buy Now |
|
DISTI #
BZX84B3V9-E3-08
|
Avnet Americas | ZENER DIODE SOT23 - Tape and Reel (Alt: BZX84B3V9-E3-08) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0298 / $0.0304 | Buy Now |
|
DISTI #
78-BZX84B3V9-E3-08
|
Mouser Electronics | Zener Diodes 3.9Volt 0.35Watt 2% RoHS: Compliant | 11799 |
|
$0.0250 / $0.1200 | Buy Now |
|
DISTI #
V36:1790_17697448
|
Arrow Electronics | Diode Zener Single 3.9V 2% 500mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 13 Weeks Date Code: 2237 | Americas - 27000 |
|
$0.0256 | Buy Now |
|
DISTI #
V72:2272_17697448
|
Arrow Electronics | Diode Zener Single 3.9V 2% 500mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2211 Container: Cut Strips | Americas - 14998 |
|
$0.0231 / $0.0516 | Buy Now |
|
DISTI #
69166332
|
Verical | Diode Zener Single 3.9V 2% 500mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Date Code: 2237 | Americas - 15000 |
|
$0.0256 | Buy Now |
|
DISTI #
62425225
|
Verical | Diode Zener Single 3.9V 2% 500mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 256 Package Multiple: 1 Date Code: 2211 | Americas - 14998 |
|
$0.0231 / $0.0299 | Buy Now |
|
DISTI #
BZX84B3V9-E3-08
|
TTI | Zener Diodes 3.9Volt 0.35Watt 2% RoHS: Compliant pbFree: Pb-Free Min Qty: 15000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0220 / $0.0233 | Buy Now |
|
|
Future Electronics | Zener Diodes 3.9Volt 0.35Watt 2% - SOT-23-3. Min Qty: 3000 Package Multiple: 3000 |
6000 null |
|
$0.0158 / $0.0172 | Buy Now |
|
DISTI #
BZX84B3V9-E3-08
|
EBV Elektronik | ZENER DIODE SOT23 (Alt: BZX84B3V9-E3-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 13 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BZX84B3V9-E3-08
BZX84B3V9-E3-08 CAD Models
BZX84B3V9-E3-08 Part Data Attributes
|
|
BZX84B3V9-E3-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BZX84B3V9-E3-08
Vishay Intertechnologies
Zener Diode, 3.9V V(Z), 2%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | SOT-23, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 90 Ω | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 600 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Voltage-Nom | 3.9 V | |
| Reverse Current-Max | 3 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Voltage Temp Coeff-Max | -0.3 mV/°C | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX84B3V9-E3-08
This table gives cross-reference parts and alternative options found for BZX84B3V9-E3-08. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84B3V9-E3-08, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX84B3V9-HE3-08 | Vishay Intertechnologies | Check for Price | Zener Diode, 3.9V V(Z), 2%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 | BZX84B3V9-E3-08 vs BZX84B3V9-HE3-08 |
BZX84B3V9-E3-08 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the BZX84B3V9-E3-08 is -65°C to 175°C.
-
Yes, the BZX84B3V9-E3-08 is suitable for high-reliability applications due to its high-quality construction and rigorous testing.
-
Yes, the BZX84B3V9-E3-08 can be used in switching power supplies due to its high surge current capability and low dynamic impedance.
-
Yes, the BZX84B3V9-E3-08 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
-
The typical junction capacitance of the BZX84B3V9-E3-08 is around 20 pF.
