Diodes / Zener Diodes / BZX84-C3V9,235
Datasheets
BZX84-C3V9,235 by:

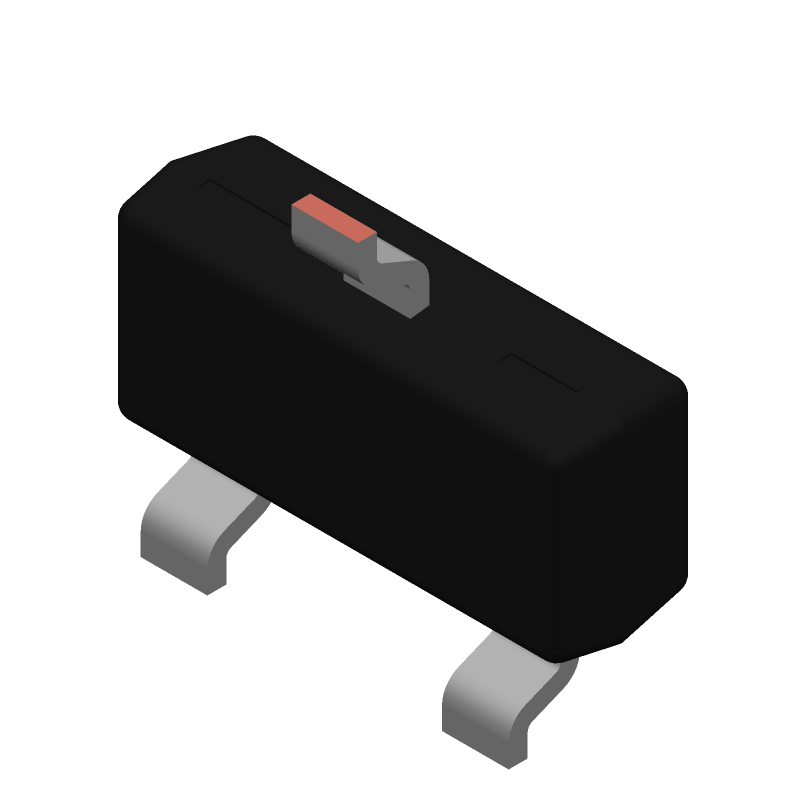

BZX84 series - Voltage regulator diodes@en-us TO-236 3-Pin

Part Details for BZX84-C3V9,235 by Nexperia

Results Overview of BZX84-C3V9,235 by Nexperia

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Electronic Manufacturing Renewable Energy Automotive

BZX84-C3V9,235 Information

BZX84-C3V9,235 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BZX84-C3V9,235

Part # Distributor Description Stock Price Buy
DISTI # 1727-BZX84-C3V9,235CT-ND
DigiKey DIODE ZENER 3.9V 250MW TO236AB Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 8690
In Stock
  • 1 $0.1000
  • 10 $0.0670
  • 100 $0.0290
  • 500 $0.0270
  • 1,000 $0.0240
  • 2,000 $0.0225
  • 5,000 $0.0180
  • 10,000 $0.0110
$0.0110 / $0.1000 Buy Now
DISTI # BZX84-C3V9,235
Avnet Americas Diode Zener Single 3.9V 5% 250mW 3-Pin SOT-23 T/R - Tape and Reel (Alt: BZX84-C3V9,235) RoHS: Compliant Min Qty: 70000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel 0
  • 70,000 $0.0096
  • 90,000 $0.0093
  • 160,000 $0.0091
  • 350,000 $0.0090
  • 700,000 $0.0087
$0.0087 / $0.0096 Buy Now
DISTI # 771-BZX84-C3V9235
Mouser Electronics Zener Diodes Voltage regulator diodes RoHS: Compliant 6894
  • 1 $0.1000
  • 10 $0.0670
  • 100 $0.0290
  • 500 $0.0270
  • 1,000 $0.0240
  • 2,500 $0.0210
  • 5,000 $0.0180
  • 10,000 $0.0110
$0.0110 / $0.1000 Buy Now
DISTI # E02:0323_00683487
Arrow Electronics Diode Zener Single 3.9V 5% 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 8 Weeks Date Code: 2433 Europe - 60000
  • 10,000 $0.0105
$0.0105 Buy Now
DISTI # 87902833
Verical Diode Zener Single 3.9V 5% 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2433 Americas - 60000
  • 10,000 $0.0106
$0.0106 Buy Now
DISTI # 85970149
Verical Diode Zener Single 3.9V 5% 250mW 3-Pin SOT-23 T/R RoHS: Compliant Min Qty: 11195 Package Multiple: 1 Date Code: 2001 Americas - 20000
  • 11,195 $0.0335
$0.0335 Buy Now
Rochester Electronics BZX84-C3V9 - Zener Diode, 3.9V, 5%, 0.25W, Unidirectional, TO-236AB RoHS: Compliant Status: Active Min Qty: 1 20000
  • 100 $0.0268
  • 500 $0.0241
  • 1,000 $0.0222
  • 10,000 $0.0198
  • 100,000 $0.0166
$0.0166 / $0.0268 Buy Now
DISTI # BZX84-C3V9,235
Avnet Silica Diode Zener Single 39V 5 250mW 3Pin SOT23 TR (Alt: BZX84-C3V9,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BZX84-C3V9,235
EBV Elektronik Diode Zener Single 39V 5 250mW 3Pin SOT23 TR (Alt: BZX84-C3V9,235) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days EBV - 0
Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 10000 60000
  • 20,000 $0.0162
  • 60,000 $0.0149
$0.0149 / $0.0162 Buy Now

Part Details for BZX84-C3V9,235

BZX84-C3V9,235 Part Data Attributes

Parametric Data
BZX84-C3V9,235 Nexperia
Buy Now Datasheet
Compare Parts:
BZX84-C3V9,235 Nexperia BZX84 series - Voltage regulator diodes@en-us TO-236 3-Pin
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NEXPERIA
Part Package Code TO-236
Package Description SOT-23, 3 PIN
Pin Count 3
Manufacturer Package Code SOT23
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Factory Lead Time 8 Weeks
Date Of Intro 1991-04-01
Samacsys Manufacturer Nexperia
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 90 Ω
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Knee Impedance-Max 600 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.25 W
Reference Standard IEC-60134
Reference Voltage-Nom 3.9 V
Reverse Current-Max 3 µA
Reverse Test Voltage 1 V
Surface Mount YES
Technology ZENER
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Temp Coeff-Max
Voltage Tol-Max 5%
Working Test Current 5 mA

Alternate Parts for BZX84-C3V9,235

This table gives cross-reference parts and alternative options found for BZX84-C3V9,235. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX84-C3V9,235, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BZX84C3V9-7-F Diodes Incorporated $0.0121 Zener Diode, 3.9V V(Z), 5.13%, 0.35W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 BZX84-C3V9,235 vs BZX84C3V9-7-F
BZX84C3V9LT1G onsemi $0.0218 250 mW; Zener Diode Voltage Regulator 3.9 V, SOT-23 (TO-236) 3 LEAD, 3000-REEL BZX84-C3V9,235 vs BZX84C3V9LT1G
BZX84-C3V9,215 Nexperia $0.0325 BZX84 series - Voltage regulator diodes@en-us TO-236 3-Pin BZX84-C3V9,235 vs BZX84-C3V9,215
BZX84C3V9-E3-08 Vishay Intertechnologies $0.0680 Zener Diode, 3.9V V(Z), 5%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 BZX84-C3V9,235 vs BZX84C3V9-E3-08
BZX84C3V9-E3-18 Vishay Intertechnologies Check for Price Zener Diode, 3.9V V(Z), 5%, 0.3W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-3 BZX84-C3V9,235 vs BZX84C3V9-E3-18
BZX84C3V9-G3-18 Vishay Intertechnologies Check for Price Zener Diode, 3.9V V(Z), 5%, 0.3W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-3 BZX84-C3V9,235 vs BZX84C3V9-G3-18

BZX84-C3V9,235 Frequently Asked Questions (FAQ)

  • The recommended storage temperature for BZX84-C3V9,235 is -40°C to +125°C.

  • Yes, the BZX84-C3V9,235 is AEC-Q101 qualified, making it suitable for automotive applications.

  • The maximum power dissipation for BZX84-C3V9,235 is 500 mW.

  • Yes, the BZX84-C3V9,235 is designed for high-reliability applications and is suitable for use in aerospace, defense, and other critical systems.

  • Yes, the BZX84-C3V9,235 is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
