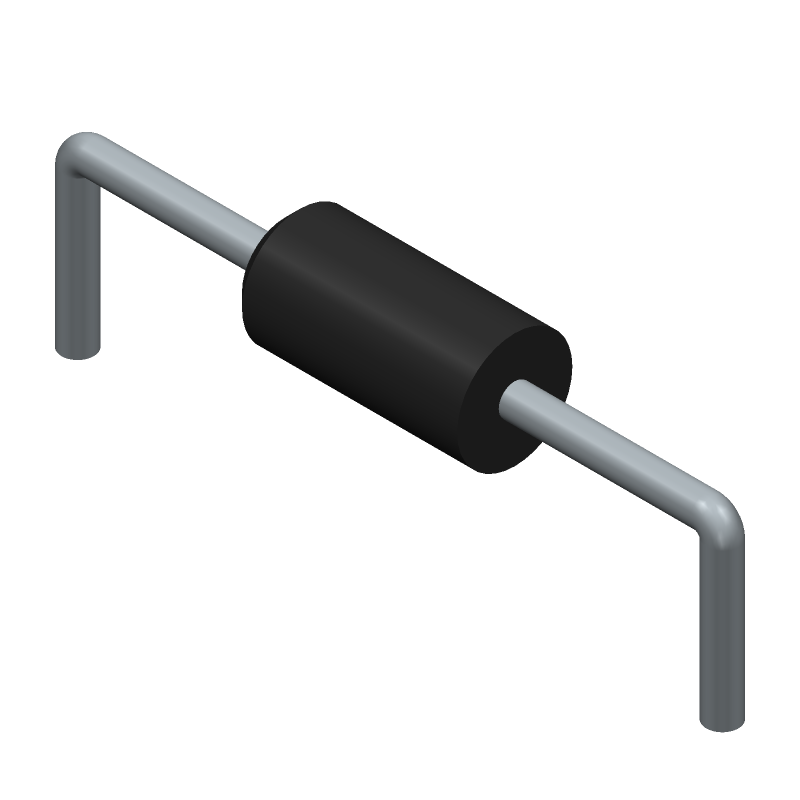

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX79C5V1 by onsemi
Results Overview of BZX79C5V1 by onsemi
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
BZX79C5V1 Information
BZX79C5V1 by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX79C5V1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58K8782
|
Newark | Zener Diode, 500Mw, 5.1V, Do-35, Zener Voltage Nom:5.1V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:Bzx79 Series, Qualification:- Rohs Compliant: Yes |Onsemi BZX79C5V1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 45 |
|
$0.0270 / $0.1520 | Buy Now |
|
DISTI #
BZX79C5V1-ND
|
DigiKey | DIODE ZENER 5.1V 500MW DO35 Min Qty: 1 Lead time: 8 Weeks Container: Bulk |
619 In Stock |
|
$0.0255 / $0.1500 | Buy Now |
|
DISTI #
58K8782
|
Avnet Americas | Diode Zener Single 5.1V 5% 500mW 2-Pin DO-35 Bulk - Bulk (Alt: 58K8782) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 6 Days Container: Bulk | 45 Partner Stock |
|
$0.0300 | Buy Now |
|
DISTI #
BZX79C5V1
|
Avnet Americas | Diode Zener Single 5.1V 5% 500mW 2-Pin DO-35 Bulk - Bulk (Alt: BZX79C5V1) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Bulk | 10000 Factory Stock |
|
$0.0190 / $0.0219 | Buy Now |
|
DISTI #
512-BZX79C5V1
|
Mouser Electronics | Zener Diodes 5.1V 0.5W Zener RoHS: Compliant | 10758 |
|
$0.0230 / $0.1500 | Buy Now |
|
DISTI #
E02:0323_00842710
|
Arrow Electronics | Zener Diode Single 5.1V 5% 60Ohm 500mW 2-Pin DO-35 Bag Min Qty: 5000 Package Multiple: 5000 Lead time: 8 Weeks | Europe - 25000 |
|
$0.0262 / $0.0273 | Buy Now |
|
DISTI #
V79:2366_17784588
|
Arrow Electronics | Zener Diode Single 5.1V 5% 60Ohm 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks Date Code: 1747 | Americas - 18055 |
|
$0.0105 / $0.0225 | Buy Now |
|
DISTI #
P40:2555_13152121
|
Arrow Electronics | Zener Diode Single 5.1V 5% 60Ohm 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2022 | Europe - 1244 |
|
$0.0218 / $0.1472 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant |
25000 In Stock |
|
$0.0219 / $0.0239 | Buy Now |
|
DISTI #
85974438
|
Verical | Zener Diode Single 5.1V 5% 60Ohm 500mW 2-Pin DO-35 Bag Min Qty: 9837 Package Multiple: 1 Date Code: 2101 | Americas - 140000 |
|
$0.0381 | Buy Now |
Part Details for BZX79C5V1
BZX79C5V1 CAD Models
BZX79C5V1 Part Data Attributes
|
|
BZX79C5V1
onsemi
Buy Now
Datasheet
|
Compare Parts:
BZX79C5V1
onsemi
Zener 0.5W 5% 5.1 V, Axial Lead, 5000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Package Description | GLASS PACKAGE-2 | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 3 Weeks, 6 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 60 Ω | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 5.1 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX79C5V1
This table gives cross-reference parts and alternative options found for BZX79C5V1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX79C5V1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX79C5V1RL | Motorola Mobility LLC | Check for Price | 5.1V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, DO-204AH, 2 PIN | BZX79C5V1 vs BZX79C5V1RL |
| BZX79C5V1 | Taiwan Semiconductor | Check for Price | Zener Diode | BZX79C5V1 vs BZX79C5V1 |
| BZX79C5V1RL | onsemi | Check for Price | 5.1V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AH | BZX79C5V1 vs BZX79C5V1RL |
| BZX79C5V1-75A0 | Taiwan Semiconductor | Check for Price | Zener Diode, 5.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | BZX79C5V1 vs BZX79C5V1-75A0 |
| BZX79-C5V1,143 | NXP Semiconductors | Check for Price | BZX79 series - Voltage regulator diodes AXIAL 2-Pin | BZX79C5V1 vs BZX79-C5V1,143 |
| BZX79C5V1-75R0 | Taiwan Semiconductor | Check for Price | Zener Diode, | BZX79C5V1 vs BZX79C5V1-75R0 |
| BZX79C5V1 | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Zener Diode, 5.1V V(Z), 5.88%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-204AH, 2 PIN | BZX79C5V1 vs BZX79C5V1 |
| BZX79-C5V1,143 | Nexperia | Check for Price | BZX79 series - Voltage regulator diodes@en-us AXIAL 2-Pin | BZX79C5V1 vs BZX79-C5V1,143 |
BZX79C5V1 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BZX79C5V1 is -65°C to 150°C.
-
To ensure proper biasing, the BZX79C5V1 should be connected in a circuit with a voltage source that provides a stable voltage within the recommended operating range, and the zener voltage should be measured under a test current of 5mA.
-
The maximum power dissipation for the BZX79C5V1 is 500mW.
-
Yes, the BZX79C5V1 can be used in switching power supply applications, but it's essential to ensure that the device is properly biased and that the voltage and current ratings are not exceeded.
-
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the BZX79C5V1 with an ESD wrist strap or mat, and to ensure that the device is stored in an ESD-protected environment.
