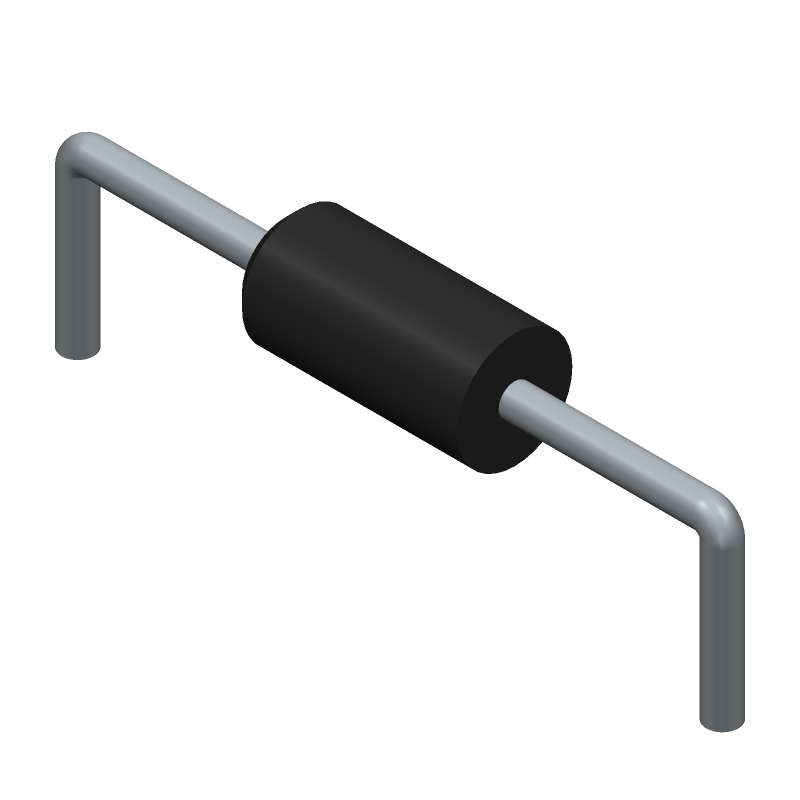

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX79C12 by onsemi
Results Overview of BZX79C12 by onsemi
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZX79C12 Information
BZX79C12 by onsemi is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX79C12
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58K8779
|
Newark | Zener Diode, 500Mw, 12V, Do-35, Zener Voltage Nom:12V, Power Dissipation:500Mw, Diode Case Style:Do-35, No. Of Pins:2Pins, Operating Temperature Max:200°C, Diode Mounting:Through Hole, Product Range:Bzx79 Series, Qualification:- Rohs Compliant: Yes |Onsemi BZX79C12 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 8753 |
|
$0.0180 | Buy Now |
|
DISTI #
BZX79C12-ND
|
DigiKey | DIODE ZENER 12V 500MW DO35 Min Qty: 1 Lead time: 6 Weeks Container: Bulk |
55741 In Stock |
|
$0.0250 / $0.1400 | Buy Now |
|
DISTI #
58K8779
|
Avnet Americas | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bulk - Bulk (Alt: 58K8779) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 4 Days Container: Bulk | 8653 Partner Stock |
|
$0.0300 / $0.1470 | Buy Now |
|
DISTI #
BZX79C12
|
Avnet Americas | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bulk - Bulk (Alt: BZX79C12) RoHS: Compliant Min Qty: 30000 Package Multiple: 5000 Lead time: 6 Weeks, 0 Days Container: Bulk | 25000 Factory Stock |
|
$0.0190 / $0.0219 | Buy Now |
|
DISTI #
512-BZX79C12
|
Mouser Electronics | Zener Diodes 12V 0.5W Zener RoHS: Compliant | 15458 |
|
$0.0240 / $0.1400 | Buy Now |
|
DISTI #
V79:2366_17775924
|
Arrow Electronics | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 36 Weeks Date Code: 1640 | Americas - 36070 |
|
Buy Now | |
|
DISTI #
E02:0323_00847737
|
Arrow Electronics | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2423 | Europe - 33800 |
|
$0.0219 / $0.1197 | Buy Now |
|
DISTI #
P40:2555_13152115
|
Arrow Electronics | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 2132 | Europe - 5675 |
|
$0.0169 / $0.0998 | Buy Now |
|
|
Onlinecomponents.com | BZX79C Series 500 mW 12 V 100 mA Through Hole Zener Diode - DO-35 RoHS: Compliant |
25000 In Stock |
|
$0.0228 / $0.0238 | Buy Now |
|
DISTI #
30697552
|
Verical | Diode Zener Single 12.05V 5% 500mW 2-Pin DO-35 Bag Min Qty: 1613 Package Multiple: 1 Date Code: 1640 | Americas - 36070 |
|
$0.0036 | Buy Now |
Part Details for BZX79C12
BZX79C12 CAD Models
BZX79C12 Part Data Attributes
|
|
BZX79C12
onsemi
Buy Now
Datasheet
|
Compare Parts:
BZX79C12
onsemi
Zener 0.5W 5% 12 V, Axial Lead, 5000-BLKBG
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | Axial Lead | |
| Package Description | GLASS PACKAGE-2 | |
| Manufacturer Package Code | 017AG | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 23 Weeks, 4 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 25 Ω | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 12 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX79C12
This table gives cross-reference parts and alternative options found for BZX79C12. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX79C12, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX79C12RL | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Zener Diode, 12V V(Z), 5.39%, 0.5W, Silicon, Unidirectional, DO-204AH, HERMETIC SEALED, GLASS, DO-35, 2 PIN | BZX79C12 vs BZX79C12RL |
| BZX79-C12,133 | NXP Semiconductors | Check for Price | BZX79 series - Voltage regulator diodes AXIAL 2-Pin | BZX79C12 vs BZX79-C12,133 |
| BZX79C12RL | onsemi | Check for Price | 12.05V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-204AH | BZX79C12 vs BZX79C12RL |
| BZX79C12 | Excel (Suzhou) Semiconductor Co Ltd | Check for Price | Zener Diode, 12V V(Z), 5%, 0.5W | BZX79C12 vs BZX79C12 |
| BZX79C12 | New Jersey Semiconductor Products Inc | Check for Price | Diode Zener Single 12.05V 5% 500mW 2-Pin ALF | BZX79C12 vs BZX79C12 |
| BZX79-C12T/R | NXP Semiconductors | Check for Price | DIODE 12 V, 0.5 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, SC-40, 2 PIN, Voltage Regulator Diode | BZX79C12 vs BZX79-C12T/R |
| 933117810133 | NXP Semiconductors | Check for Price | 12V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35, HERMETIC SEALED, GLASS, SC-40, 2 PIN | BZX79C12 vs 933117810133 |
| BZX79C12 | STMicroelectronics | Check for Price | 12V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-35 | BZX79C12 vs BZX79C12 |
BZX79C12 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the BZX79C12 is -65°C to 150°C.
-
To ensure proper biasing, the BZX79C12 should be operated within the recommended voltage range (12V) and current range (1.4A). Additionally, the device should be connected in a circuit with a suitable resistor and capacitor to ensure stable operation.
-
The maximum power dissipation of the BZX79C12 is 500mW.
-
Yes, the BZX79C12 can be used in switching regulator applications, but it's essential to ensure that the device is properly biased and that the circuit is designed to handle the high-frequency switching.
-
To prevent electrostatic discharge (ESD) damage, it's essential to handle the BZX79C12 with proper ESD protection measures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging.
