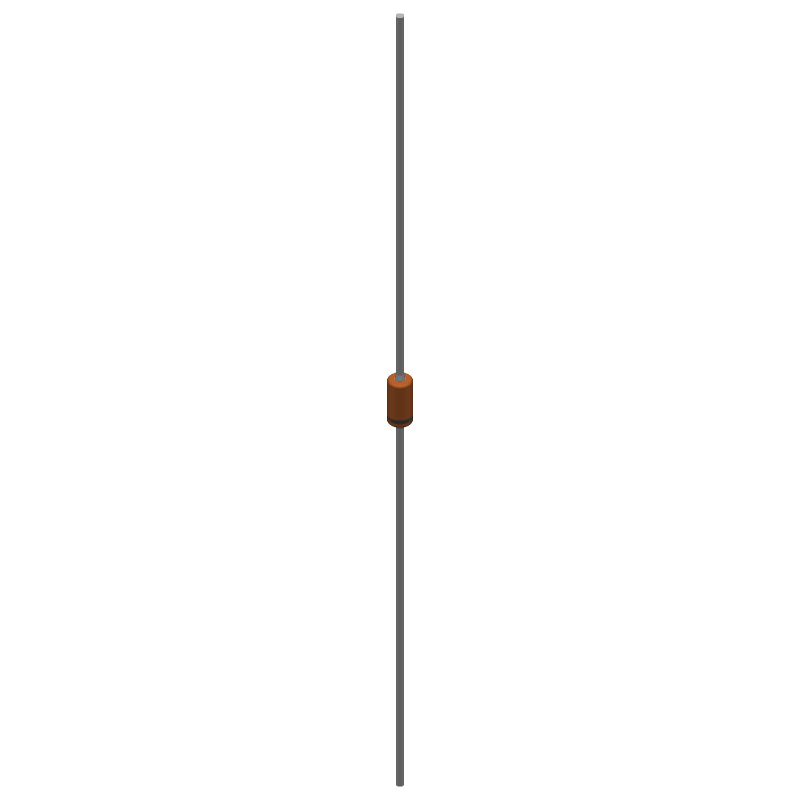

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX79-B62,113 by Nexperia
Results Overview of BZX79-B62,113 by Nexperia
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
BZX79-B62,113 Information
BZX79-B62,113 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX79-B62,113
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-BZX79-B62,113-ND
|
DigiKey | DIODE ZENER 62V 400MW ALF2 Min Qty: 10764 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT |
19366 In Stock |
|
$0.0300 | Buy Now |
|
DISTI #
BZX79-B62,113-ND
|
DigiKey | DIODE ZENER 62V 400MW ALF2 Min Qty: 10000 Lead time: 8 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0173 / $0.0283 | Buy Now |
|
DISTI #
BZX79-B62,113
|
Avnet Americas | Diode Zener Single 62V 2% 500mW 2-Pin ALF T/R - Tape and Reel (Alt: BZX79-B62,113) RoHS: Compliant Min Qty: 40000 Package Multiple: 10000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0190 / $0.0194 | Buy Now |
|
DISTI #
771-BZX79-B62113
|
Mouser Electronics | Zener Diodes Voltage regulator diodes RoHS: Compliant | 0 |
|
$0.0180 / $0.2000 | Order Now |
|
DISTI #
BZX79-B62,113
|
Avnet Silica | Diode Zener Single 62V 2 500mW 2Pin ALF TR (Alt: BZX79-B62,113) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
BZX79-B62,113
|
EBV Elektronik | Diode Zener Single 62V 2 500mW 2Pin ALF TR (Alt: BZX79-B62,113) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BZX79-B62,113
BZX79-B62,113 CAD Models
BZX79-B62,113 Part Data Attributes
|
|
BZX79-B62,113
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BZX79-B62,113
Nexperia
BZX79 series - Voltage regulator diodes@en-us AXIAL 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | AXIAL | |
| Package Description | SC-40, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD27 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1996-04-26 | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 62 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 2 mA |
