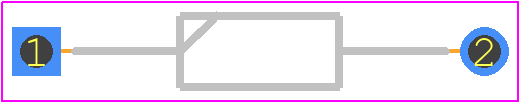

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZX55C5V1 by Taiwan Semiconductor
Results Overview of BZX55C5V1 by Taiwan Semiconductor
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZX55C5V1 Information
BZX55C5V1 by Taiwan Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZX55C5V1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1801-BZX55C5V1TR-ND
|
DigiKey | DIODE ZENER 5.1V 500MW DO35 Min Qty: 10000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0187 / $0.0302 | Buy Now |
Part Details for BZX55C5V1

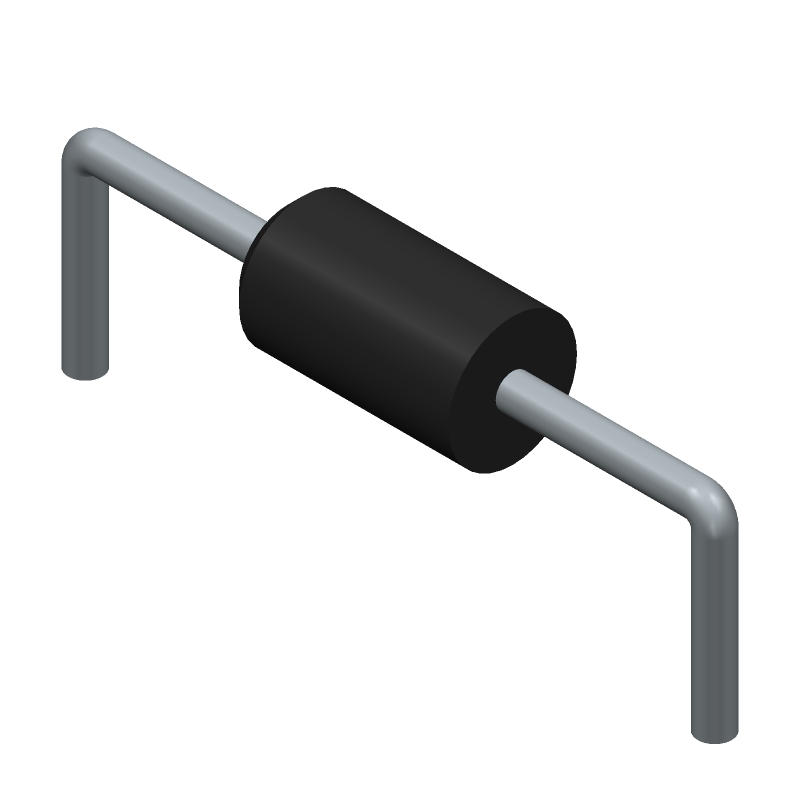

BZX55C5V1 CAD Models
BZX55C5V1 Part Data Attributes
|
|
BZX55C5V1
Taiwan Semiconductor
Buy Now
Datasheet
|
Compare Parts:
BZX55C5V1
Taiwan Semiconductor
Zener Diode, 5.1V V(Z), 5.88%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TAIWAN SEMICONDUCTOR CO LTD | |
| Package Description | ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | Taiwan Semiconductor | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JEDEC-95 Code | DO-35 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Voltage-Nom | 5.1 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Voltage Tol-Max | 5.88% | |
| Working Test Current | 5 mA |
Alternate Parts for BZX55C5V1
This table gives cross-reference parts and alternative options found for BZX55C5V1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZX55C5V1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZX55C5V1 | Continental Device India Ltd | $0.0172 | Zener Diode, 5.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35, | BZX55C5V1 vs BZX55C5V1 |
| BZX55C5V1 | Fagor Electrónica | Check for Price | Zener Diode, 5.1V V(Z), 5%, 0.5W, | BZX55C5V1 vs BZX55C5V1 |
| BZX55C5V1 | Microsemi Corporation | Check for Price | Zener Diode, 5.1V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-35 | BZX55C5V1 vs BZX55C5V1 |
| BZX55C5V1 | Excel (Suzhou) Semiconductor Co Ltd | Check for Price | Zener Diode, 5.1V V(Z), 5%, 0.5W | BZX55C5V1 vs BZX55C5V1 |
| BZX55C5V1 | Rectron Semiconductor | Check for Price | Zener Diode, 5.1V V(Z), 5.8%, 0.5W, Silicon, Unidirectional, DO-35, ROHS COMPLIANT, HERMETIC SEALED, GLASS PACKAGE-2 | BZX55C5V1 vs BZX55C5V1 |
| BZX55C5V1 | EIC Semiconductor Inc | Check for Price | Zener Diode, 5.1V V(Z), 5.9%, 0.5W, | BZX55C5V1 vs BZX55C5V1 |
| BZX55-C5V1 | TDK Micronas GmbH | Check for Price | Zener Diode, 5.1V V(Z), 5%, 0.5W, Silicon, Unidirectional | BZX55C5V1 vs BZX55-C5V1 |
