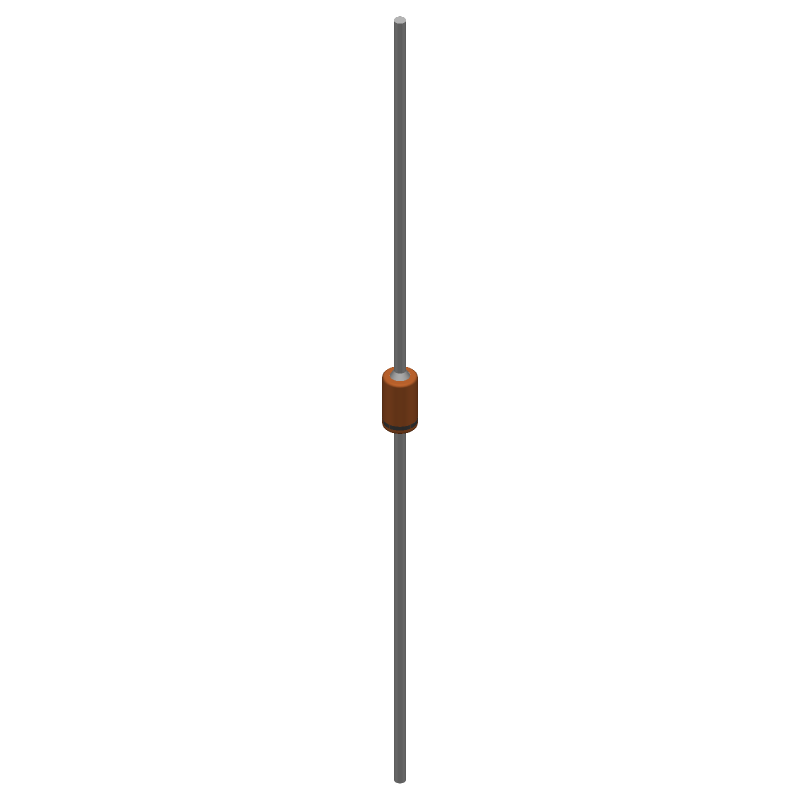

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZV85-C9V1,113 by Nexperia
Results Overview of BZV85-C9V1,113 by Nexperia
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZV85-C9V1,113 Information
BZV85-C9V1,113 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZV85-C9V1,113
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96K7301
|
Newark | Zener Single Diode, 9.1 V, 1 W, Do-41, 5 %, 2, 200 C Rohs Compliant: Yes |Nexperia BZV85-C9V1,113 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 306 |
|
$0.0590 / $0.2000 | Buy Now |
|
DISTI #
93X4038
|
Newark | Zener Single Diode, 9.1 V, 1 W, Do-41, 5 %, 2, 200 C Rohs Compliant: Yes |Nexperia BZV85-C9V1,113 RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0490 / $0.0560 | Buy Now |
|
DISTI #
1727-1529-1-ND
|
DigiKey | DIODE ZENER 9.1V 1.3W DO41 Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
4710 In Stock |
|
$0.0319 / $0.2300 | Buy Now |
|
DISTI #
BZV85-C9V1,113
|
Avnet Americas | Diode Zener Single 9.05V 5% 1.3W 2-Pin DO-41 T/R - Tape and Reel (Alt: BZV85-C9V1,113) RoHS: Compliant Min Qty: 25000 Package Multiple: 5000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0265 / $0.0311 | Buy Now |
|
DISTI #
771-BZV85-C9V1113
|
Mouser Electronics | Zener Diodes Voltage regulator diodes RoHS: Compliant | 2208 |
|
$0.0330 / $0.2300 | Buy Now |
|
DISTI #
85971254
|
Verical | Zener Diode Single 9.05V 5% 5Ohm 1300mW 2-Pin DO-41 T/R RoHS: Compliant Min Qty: 9346 Package Multiple: 1 Date Code: 1601 | Americas - 53420 |
|
$0.0300 / $0.0401 | Buy Now |
|
DISTI #
87601057
|
Verical | Zener Diode Single 9.05V 5% 5Ohm 1300mW 2-Pin DO-41 T/R RoHS: Compliant Min Qty: 25000 Package Multiple: 25000 Date Code: 2401 | Americas - 25000 |
|
$0.0423 | Buy Now |
|
DISTI #
88041465
|
Verical | Zener Diode Single 9.05V 5% 5Ohm 1300mW 2-Pin DO-41 T/R RoHS: Compliant Min Qty: 9346 Package Multiple: 1 Date Code: 1901 | Americas - 10000 |
|
$0.0300 / $0.0401 | Buy Now |
|
|
Rochester Electronics | BZV85-C9V1 - Zener Diode, 9.1V, 5%, 1W, Unidirectional, DO-41 RoHS: Compliant Status: Active Min Qty: 1 | 25000 |
|
$0.0240 / $0.0387 | Buy Now |
|
DISTI #
BZV85-C9V1.113
|
TME | Diode: Zener, 1/1.3W, 9.1V, reel,tape, DO41, single diode, 500mA Min Qty: 10 | 4126 |
|
$0.0323 / $0.0793 | Buy Now |
Part Details for BZV85-C9V1,113
BZV85-C9V1,113 CAD Models
BZV85-C9V1,113 Part Data Attributes
|
|
BZV85-C9V1,113
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BZV85-C9V1,113
Nexperia
BZV85 series - Voltage regulator diodes@en-us DO-4 2-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | DO-4 | |
| Pin Count | 2 | |
| Manufacturer Package Code | SOD66 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-LALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 1 W | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 9.1 V | |
| Surface Mount | NO | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 25 mA |
BZV85-C9V1,113 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for BZV85-C9V1,113 is -55°C to 150°C.
-
To ensure reliability, follow proper storage and handling procedures, use a clean and dry environment, and avoid mechanical stress, electrical overstress, and electrostatic discharge.
-
Yes, BZV85-C9V1,113 is suitable for high-frequency applications up to 1 GHz due to its low capacitance and high impedance.
-
Choose a voltage rating that is at least 1.5 to 2 times the maximum voltage expected in your application to ensure safe operation and prevent breakdown.
-
The recommended soldering temperature is 260°C (peak temperature) with a soldering time of 10 seconds (max).
