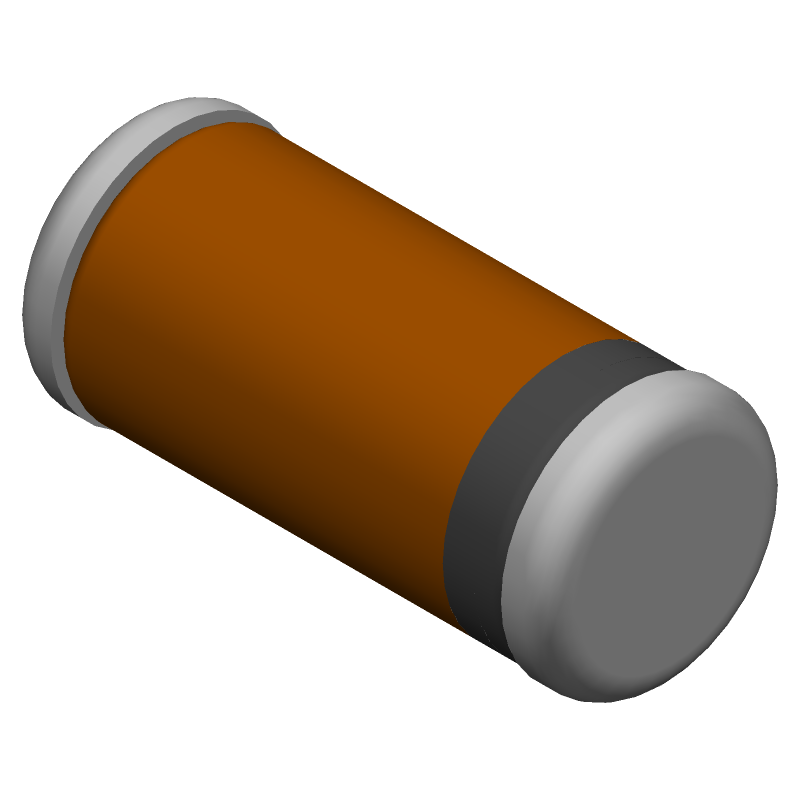

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZV55-C3V6,115 by Nexperia
Results Overview of BZV55-C3V6,115 by Nexperia
- Distributor Offerings: (22 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BZV55-C3V6,115 Information
BZV55-C3V6,115 by Nexperia is a Zener Diode.
