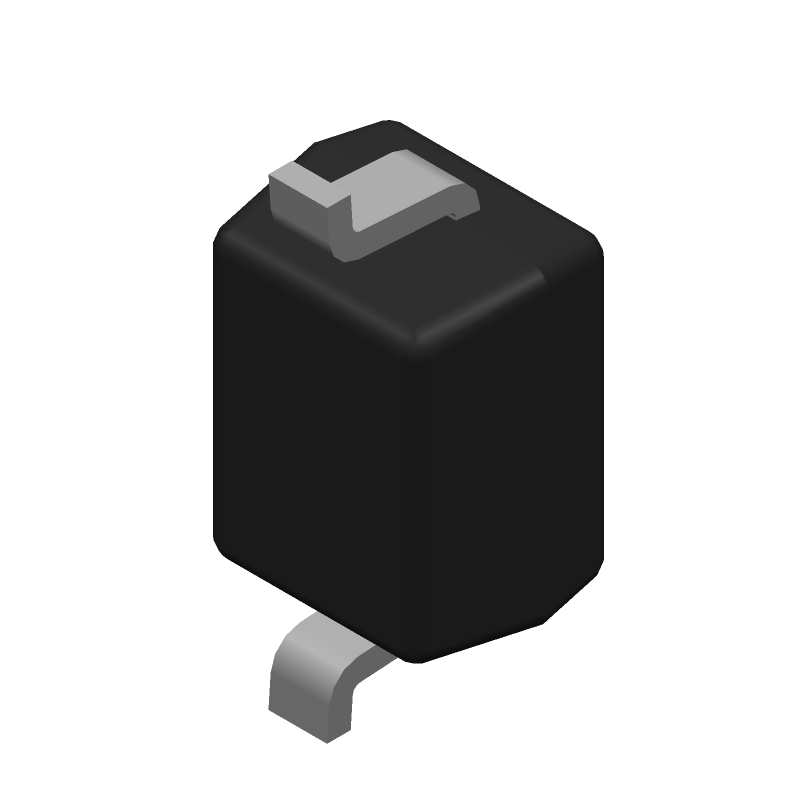

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZT52C5V6S-7-F by Diodes Incorporated
Results Overview of BZT52C5V6S-7-F by Diodes Incorporated
- Distributor Offerings: (29 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZT52C5V6S-7-F Information
BZT52C5V6S-7-F by Diodes Incorporated is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZT52C5V6S-7-F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82T8826
|
Newark | Diode, Zener, 5.6V, 200Mw, Sod323, Zener Voltage Nom:5.6V, Power Dissipation:200Mw, Diode Case Style:Sod-323, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Bzt52C Series Rohs Compliant: Yes |Diodes Inc. BZT52C5V6S-7-F RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 1764 |
|
$0.0520 / $0.1290 | Buy Now |
|
DISTI #
BZT52C5V6S-FDICT-ND
|
DigiKey | DIODE ZENER 5.6V 200MW SOD323 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
285442 In Stock |
|
$0.0262 / $0.1100 | Buy Now |
|
DISTI #
BZT52C5V6S-7-F
|
Avnet Americas | Zener Single Diode, 5.6 V, 200 mW, SOD-323, 2 Pins, 150 ?C, Surface Mount - Tape and Reel (Alt: BZT52C5V6S-7-F) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0182 / $0.0189 | Buy Now |
|
DISTI #
621-BZT52C5V6S-F
|
Mouser Electronics | Zener Diodes 200mW 5.6V Zener AEC-Q101 Qualified RoHS: Compliant | 42728 |
|
$0.0270 / $0.1200 | Buy Now |
|
DISTI #
E02:0323_01115880
|
Arrow Electronics | Zener Diode Single 5.6V 7.14% 40Ohm 200mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 8 Weeks Date Code: 2449 | Europe - 348000 |
|
$0.0183 / $0.0339 | Buy Now |
|
DISTI #
V36:1790_06692176
|
Arrow Electronics | Zener Diode Single 5.6V 7.14% 40Ohm 200mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2350 | Americas - 3000 |
|
$0.0191 / $0.0356 | Buy Now |
|
DISTI #
V72:2272_06692176
|
Arrow Electronics | Zener Diode Single 5.6V 7.14% 40Ohm 200mW 2-Pin SOD-323 T/R RoHS: Compliant Min Qty: 236 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2218 Container: Cut Strips | Americas - 236 |
|
$0.0360 | Buy Now |
|
DISTI #
70437803
|
RS | Diode Zener 5.6V 7% 200mW 2Pin SOD323 Min Qty: 100 Package Multiple: 1 Container: Bulk | 0 |
|
$0.0610 / $0.0720 | RFQ |
|
|
Future Electronics | BZT52C5V6 Series 200 mW 5.6 V 10 mA Surface Mount Zener Diode - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 39000Reel |
|
$0.0205 / $0.0222 | Buy Now |
|
|
Future Electronics | BZT52C5V6 Series 200 mW 5.6 V 10 mA Surface Mount Zener Diode - SOD-323 RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0205 / $0.0222 | Buy Now |
Part Details for BZT52C5V6S-7-F
BZT52C5V6S-7-F CAD Models
BZT52C5V6S-7-F Part Data Attributes
|
|
BZT52C5V6S-7-F
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
BZT52C5V6S-7-F
Diodes Incorporated
Zener Diode, 5.6V V(Z), 7.14%, 0.2W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Package Description | GREEN, PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 40 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 5.6 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 7.14% | |
| Working Test Current | 5 mA |
Alternate Parts for BZT52C5V6S-7-F
This table gives cross-reference parts and alternative options found for BZT52C5V6S-7-F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZT52C5V6S-7-F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BZT52C5V6SQ-7-F | Diodes Incorporated | $0.0323 | Zener Diode, 5.6V V(Z), 7.14%, 0.2W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 | BZT52C5V6S-7-F vs BZT52C5V6SQ-7-F |
| MM3Z5V6T1G | onsemi | $0.0456 | 200mW 5% Zener, SOD323 5.6 V, SOD-323 2 LEAD, 3000-REEL | BZT52C5V6S-7-F vs MM3Z5V6T1G |
| BZX384C5V6-E3-08 | Vishay Intertechnologies | $0.0783 | Zener Diode, 5.6V V(Z), 5%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC PACKAGE-2 | BZT52C5V6S-7-F vs BZX384C5V6-E3-08 |
| PZU5.6B,115 | Nexperia | Check for Price | PZUxB series - Zener diodes in a SOD323F package@en-us SOD 2-Pin | BZT52C5V6S-7-F vs PZU5.6B,115 |
| MM3Z5V6T1 | onsemi | Check for Price | 5.6V, 0.2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, 0.067 X 0.049 INCH, 0.035 INCH HEIGHT, PLASTIC, CASE 477-02, 2 PIN | BZT52C5V6S-7-F vs MM3Z5V6T1 |
BZT52C5V6S-7-F Frequently Asked Questions (FAQ)
-
The recommended storage temperature for BZT52C5V6S-7-F is -40°C to 125°C.
-
Yes, BZT52C5V6S-7-F is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The maximum power dissipation for BZT52C5V6S-7-F is 500 mW.
-
Yes, BZT52C5V6S-7-F is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The typical junction-to-ambient thermal resistance for BZT52C5V6S-7-F is 350°C/W.
