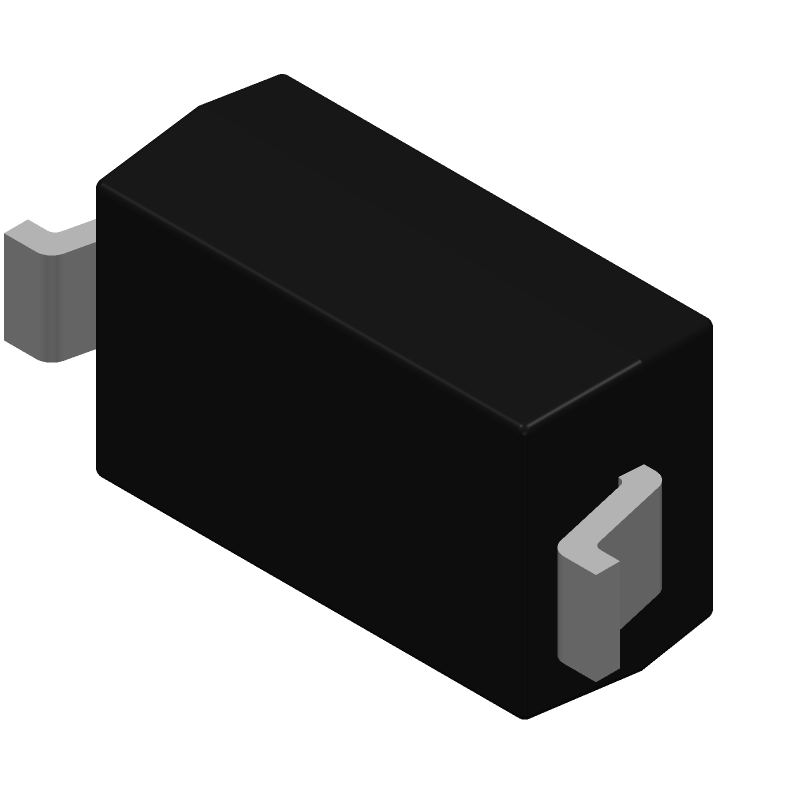

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZT52C5V6HE3-TP by Micro Commercial Components
Results Overview of BZT52C5V6HE3-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Environmental Monitoring
Audio and Video Systems
Aerospace and Defense
Energy and Power Systems
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Renewable Energy
BZT52C5V6HE3-TP Information
BZT52C5V6HE3-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZT52C5V6HE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BZT52C5V6HE3-TPCT-ND
|
DigiKey | DIODE ZENER 5.6V 500MW SOD123 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2639 In Stock |
|
$0.0423 / $0.2100 | Buy Now |
|
DISTI #
833-BZT52C5V6HE3-TP
|
Mouser Electronics | Zener Diodes 500mW ZENER RoHS: Compliant | 0 |
|
$0.0370 / $0.2100 | Order Now |
|
DISTI #
BZT52C5V6HE3-TP
|
IBS Electronics | BZT52C5V6HE3-TP by MCC is a Zener diode with a 5.6V nominal voltage, 500mW power dissipation, and SOD-123 package, ideal for voltage regulation and protection applications. Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.0276 / $0.0303 | Buy Now |
Part Details for BZT52C5V6HE3-TP
BZT52C5V6HE3-TP CAD Models
BZT52C5V6HE3-TP Part Data Attributes
|
|
BZT52C5V6HE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BZT52C5V6HE3-TP
Micro Commercial Components
Zener Diode, 5.6V V(Z), 0.5W,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOD-123, 2 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MCC | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 40 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 400 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.5 W | |
| Reference Voltage-Nom | 5.6 V | |
| Reverse Current-Max | 0.001 µA | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Working Test Current | 5 mA |
