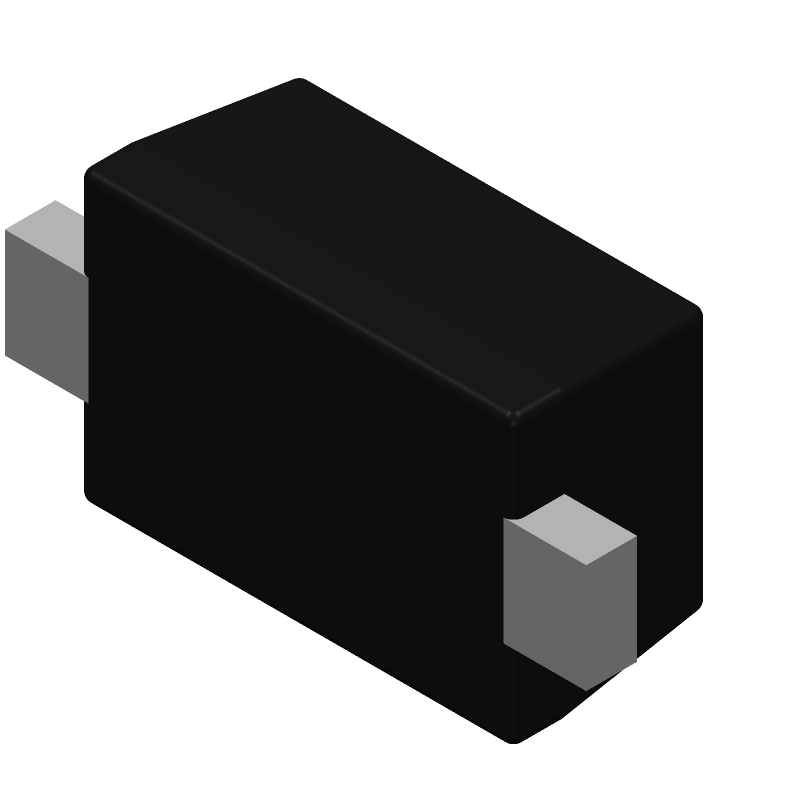

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZT52C30T by Micro Commercial Components
Results Overview of BZT52C30T by Micro Commercial Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZT52C30T Information
BZT52C30T by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Part Details for BZT52C30T
BZT52C30T CAD Models
BZT52C30T Part Data Attributes
|
|
BZT52C30T
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BZT52C30T
Micro Commercial Components
Zener Diode, 30V V(Z), 6.67%, 0.1W, Silicon, Unidirectional, PLASTIC PACKAGE-2
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | PLASTIC PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 80 Ω | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 300 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.2 W | |
| Qualification Status | Not Qualified | |
| Reference Voltage-Nom | 30 V | |
| Reverse Current-Max | 0.0001 µA | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 3 | |
| Voltage Tol-Max | 6.67% | |
| Working Test Current | 2 mA |
Alternate Parts for BZT52C30T
This table gives cross-reference parts and alternative options found for BZT52C30T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZT52C30T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 1N6336BD2A.XRAY | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | 33V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6336BD2A.XRAY |
| 1N6332BD2B-JQRS.SS | TT Electronics Resistors | Check for Price | Zener Diode, 22V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT B, 2 PIN | BZT52C30T vs 1N6332BD2B-JQRS.SS |
| 1N6331BD2A-JQRS.XRAY | TT Electronics Resistors | Check for Price | Zener Diode, 20V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6331BD2A-JQRS.XRAY |
| 1N6333BD2B | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | 24V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT B, 2 PIN | BZT52C30T vs 1N6333BD2B |
| 1N6333BD2B.GBDM | TT Electronics Resistors | Check for Price | Zener Diode, 24V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT B, 2 PIN | BZT52C30T vs 1N6333BD2B.GBDM |
| 1N6336BD2A.SS | TT Electronics Resistors | Check for Price | Zener Diode, 33V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6336BD2A.SS |
| 1N6328BD2A.CVB | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | 15V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6328BD2A.CVB |
| 1N6325BD2B-JQRS.GCDE | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | 11V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT B, 2 PIN | BZT52C30T vs 1N6325BD2B-JQRS.GCDE |
| 1N6335BD2A-JQRS.GCDM | TT Electronics Resistors | Check for Price | Zener Diode, 30V V(Z), 5%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6335BD2A-JQRS.GCDM |
| 1N6336BD2A-JQRS | TT Electronics Power and Hybrid / Semelab Limited | Check for Price | 33V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, HERMETIC SEALED, CERAMIC, DLCC2 VARIANT A, 2 PIN | BZT52C30T vs 1N6336BD2A-JQRS |
