Diodes / Zener Diodes / BZT52C13S
Datasheets
BZT52C13S by:

Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, PLASTIC PACKAGE-2

Part Details for BZT52C13S by Micro Commercial Components

Results Overview of BZT52C13S by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

BZT52C13S Information

BZT52C13S by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Part Details for BZT52C13S

BZT52C13S Part Data Attributes

Parametric Data
BZT52C13S Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BZT52C13S Micro Commercial Components Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, PLASTIC PACKAGE-2
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP

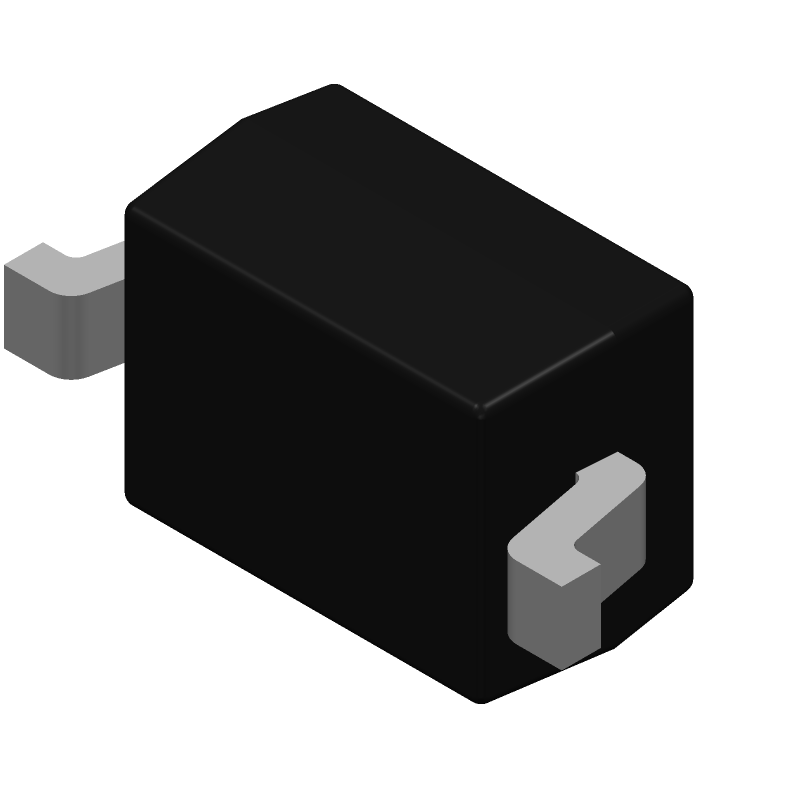

Package Description SOD-323, 2 PIN
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 30 Ω
JESD-30 Code R-PDSO-F2
JESD-609 Code e3
Knee Impedance-Max 170 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.2 W
Qualification Status Not Qualified
Reference Voltage-Nom 13 V
Reverse Current-Max 0.0001 µA
Surface Mount YES
Technology ZENER
Terminal Finish Tin (Sn)
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 3
Voltage Tol-Max 6.42%
Working Test Current 5 mA

Alternate Parts for BZT52C13S

This table gives cross-reference parts and alternative options found for BZT52C13S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZT52C13S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BZT52C13S-TP Micro Commercial Components $0.0214 Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, PLASTIC PACKAGE-2 BZT52C13S vs BZT52C13S-TP
BZT52C13S-7-F Diodes Incorporated $0.0714 Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, GREEN, PLASTIC PACKAGE-2 BZT52C13S vs BZT52C13S-7-F
RD13SB-T1 Renesas Electronics Corporation Check for Price 13V, 0.2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, SUPERMINI-2 BZT52C13S vs RD13SB-T1
RD13SB Renesas Electronics Corporation Check for Price 13.215V, 0.2W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, SUPERMINI-2 BZT52C13S vs RD13SB
BZT52C13S Formosa Microsemi Co Ltd Check for Price Zener Diode BZT52C13S vs BZT52C13S
BZT52C13S Hitano Enterprise Corp Check for Price Zener Diode, BZT52C13S vs BZT52C13S
BZX384-C13 Philips Semiconductors Check for Price Zener Diode, 13V V(Z), 5%, 0.3W, BZT52C13S vs BZX384-C13
BZT52C13S Rectron Semiconductor Check for Price Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, ULTRA SMALL PACKAGE-2 BZT52C13S vs BZT52C13S
Part Number Manufacturer Composite Price Description Compare
CMDZ13TR13 Central Semiconductor Corp Check for Price Zener Diode, 13V V(Z), 5%, 0.25W, Silicon, Unidirectional, SUPERMINI-2 BZT52C13S vs CMDZ13TR13
BZX384-C13-Q Nexperia Check for Price Zener Diode, 13.25V V(Z), 5%, 0.3W, Silicon, Unidirectional BZT52C13S vs BZX384-C13-Q
BZM55C13 Rectron Semiconductor Check for Price Zener Diode, 13.25V V(Z), 6.42%, 0.5W, Silicon, Unidirectional, GLASS, LS-31, MICROMELF-2 BZT52C13S vs BZM55C13
BZM55C13-7 Diodes Incorporated Check for Price Zener Diode, 13V V(Z), 6.42%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, MICROMELF-2 BZT52C13S vs BZM55C13-7
TCMM3Z13VC Tak Cheong Electronics (Holdings) Co Ltd Check for Price Zener Diode, 13V V(Z), 5%, 0.2W, Silicon, Unidirectional, ROHS COMPLIANT, PLASTIC, SIMILAR TO SC-90, 2 PIN BZT52C13S vs TCMM3Z13VC
BZX384-C13 Nexperia Check for Price Zener Diode, 13V V(Z), 5%, 0.3W, Silicon, Unidirectional BZT52C13S vs BZX384-C13
BZM55C13 Micro Commercial Components Check for Price Zener Diode, 13V V(Z), 6.42%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, MICROMELF-2 BZT52C13S vs BZM55C13
CMDZ13TR Central Semiconductor Corp Check for Price Zener Diode, 13V V(Z), 5%, 0.25W, Silicon, Unidirectional, SUPERMINI-2 BZT52C13S vs CMDZ13TR
BZT52C13S-13 Diodes Incorporated Check for Price Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, ULTRA SMALL, PLASTIC PACKAGE-2 BZT52C13S vs BZT52C13S-13
BZX384C13 Micro Commercial Components Check for Price Zener Diode, 13V V(Z), 6.42%, 0.2W, Silicon, Unidirectional, PLASTIC PACKAGE-2 BZT52C13S vs BZX384C13
