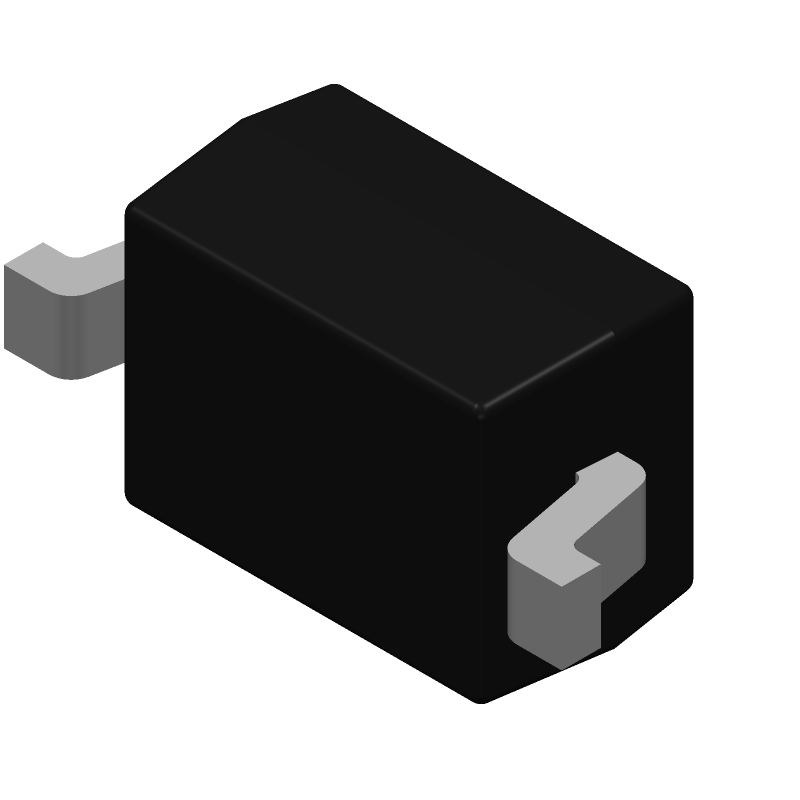

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZT52B3V6JS-TP by Micro Commercial Components
Results Overview of BZT52B3V6JS-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZT52B3V6JS-TP Information
BZT52B3V6JS-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZT52B3V6JS-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
BZT52B3V6JS-TP-ND
|
DigiKey | DIODE ZENER 3.6V 200MW SOD323 Min Qty: 3000 Lead time: 20 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.0313 / $0.0546 | Buy Now |
|
DISTI #
833-BZT52B3V6JS-TP
|
Mouser Electronics | Zener Diodes 200mW 0.9Vf 3.53Vz 1.0Vr 4.5uA RoHS: Compliant | 0 |
|
$0.0310 / $0.3300 | Order Now |
|
DISTI #
BZT52B3V6JS-TP
|
TME | Diode: Zener, 200mW, 3.6V, SMD, reel,tape, SOD323, single diode Min Qty: 10 | 0 |
|
$0.0345 / $0.0800 | RFQ |
Part Details for BZT52B3V6JS-TP
BZT52B3V6JS-TP CAD Models
BZT52B3V6JS-TP Part Data Attributes
|
|
BZT52B3V6JS-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BZT52B3V6JS-TP
Micro Commercial Components
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | R-PDSO-G2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | MCC | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 84 Ω | |
| JESD-30 Code | R-PDSO-G2 | |
| JESD-609 Code | e3 | |
| Knee Impedance-Max | 564 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.2 W | |
| Reference Voltage-Nom | 3.6 V | |
| Reverse Current-Max | 0.0045 µA | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 2% | |
| Working Test Current | 5 mA |
