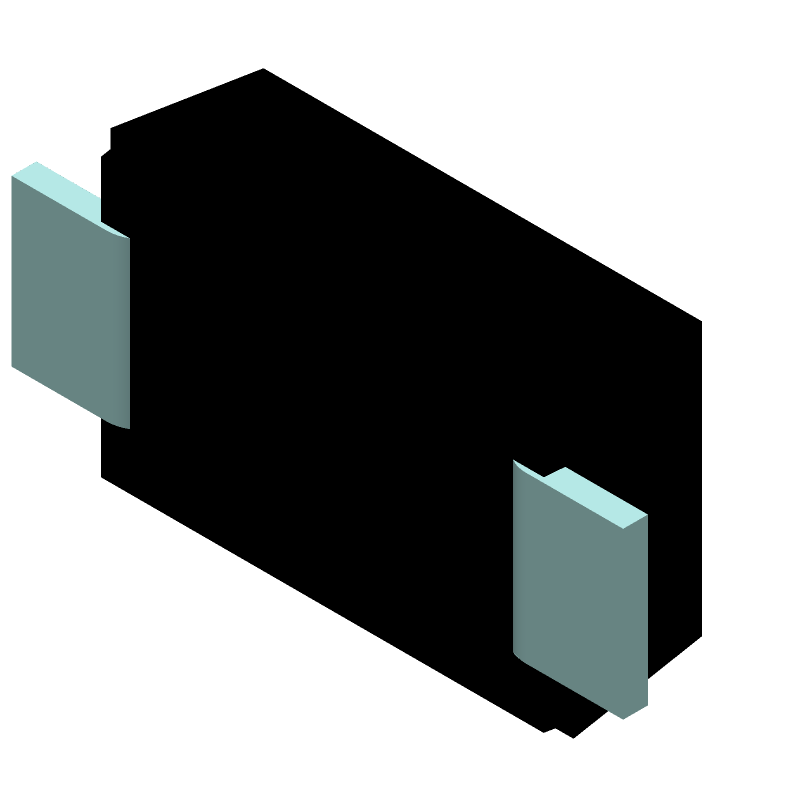

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZD27C7V5P-HE3-08 by Vishay Intertechnologies
Results Overview of BZD27C7V5P-HE3-08 by Vishay Intertechnologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
BZD27C7V5P-HE3-08 Information
BZD27C7V5P-HE3-08 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZD27C7V5P-HE3-08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78-BZD27C7V5P-HE3-08
|
Mouser Electronics | Zener Diodes ZENER DIODE SMF DO219-HE3 RoHS: Compliant | 29224 |
|
$0.1160 / $0.4100 | Buy Now |
|
DISTI #
BZD27C7V5P-HE3-08
|
EBV Elektronik | Diode Zener Single 75V 800mW 2Pin DO219AB TR (Alt: BZD27C7V5P-HE3-08) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | EBV - 27000 |
|
Buy Now | |
|
|
Vyrian | Diodes | 27908 |
|
RFQ |
Part Details for BZD27C7V5P-HE3-08
BZD27C7V5P-HE3-08 CAD Models
BZD27C7V5P-HE3-08 Part Data Attributes
|
|
BZD27C7V5P-HE3-08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
BZD27C7V5P-HE3-08
Vishay Intertechnologies
Zener Diode, 7.5V V(Z), 6.04%, 0.8W, Silicon, Unidirectional, DO-219AB, SMF, 2 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Part Package Code | DO-219AB | |
| Package Description | SMF, 2 PIN | |
| Pin Count | 2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 65 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JEDEC-95 Code | DO-219AB | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.8 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 7.5 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 6.04% | |
| Working Test Current | 100 mA |
BZD27C7V5P-HE3-08 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for the BZD27C7V5P-HE3-08 is -40°C to 125°C.
-
Yes, the BZD27C7V5P-HE3-08 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
-
The maximum power dissipation for the BZD27C7V5P-HE3-08 is 1.5 W.
-
Yes, the BZD27C7V5P-HE3-08 is AEC-Q101 qualified, making it suitable for use in automotive applications.
-
The typical junction-to-ambient thermal resistance for the BZD27C7V5P-HE3-08 is 125°C/W.
