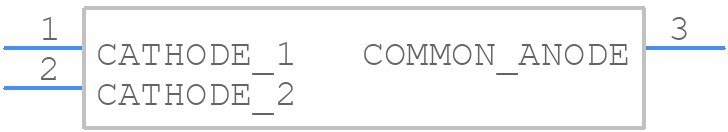

Part Symbol
-
Footprint
-

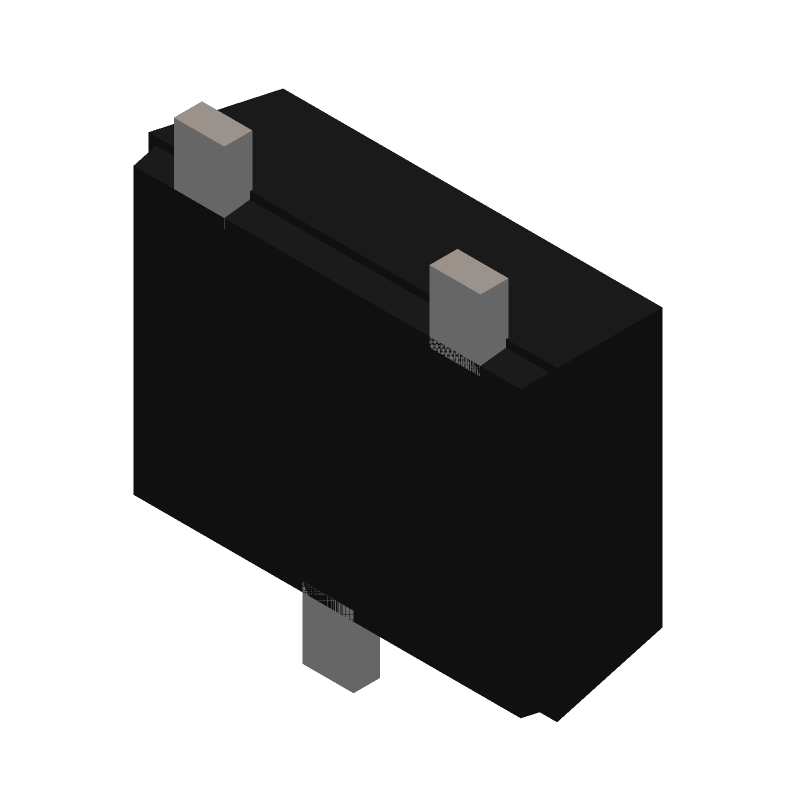

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BZB984-C3V3,115 by Nexperia
Results Overview of BZB984-C3V3,115 by Nexperia
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
BZB984-C3V3,115 Information
BZB984-C3V3,115 by Nexperia is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BZB984-C3V3,115
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
37K9826
|
Newark | Zener Array Diode, 3.3 V, Dual Common Anode, 425 Mw, -65 C, 150 C, Sot-663 Rohs Compliant: Yes |Nexperia BZB984-C3V3,115 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 655 |
|
$0.1310 / $0.2550 | Buy Now |
|
DISTI #
93X3964
|
Newark | Zener Array Diode, 3.3 V, Dual Common Anode, 425 Mw, -65 C, 150 C, Sot-663 Rohs Compliant: Yes |Nexperia BZB984-C3V3,115 RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.0740 / $0.0890 | Buy Now |
|
DISTI #
1727-1589-1-ND
|
DigiKey | DIODE ZENER ARRAY 3.3V SOT-663 Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
838 In Stock |
|
$0.0425 / $0.3600 | Buy Now |
|
DISTI #
BZB984-C3V3,115
|
Avnet Americas | Diode Zener Dual Common Anode 3.3V 5% 425mW 3-Pin SOT-663 T/R - Tape and Reel (Alt: BZB984-C3V3,115) RoHS: Compliant Min Qty: 16000 Package Multiple: 4000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.0396 / $0.0433 | Buy Now |
|
DISTI #
771-BZB984-C3V3115
|
Mouser Electronics | Zener Diodes Voltage regulator double diodes RoHS: Compliant | 9153 |
|
$0.0460 / $0.3700 | Buy Now |
|
|
Bristol Electronics | Min Qty: 23 | 500 |
|
$0.0675 / $0.2250 | Buy Now |
|
|
Rochester Electronics | BZB984-C3V3 - Zener Diode, 3.3V, 5%, 0.425W, Unidirectional RoHS: Compliant Status: Active Min Qty: 1 | 3298 |
|
$0.0321 / $0.0518 | Buy Now |
|
DISTI #
BZB984-C3V3.115
|
TME | Diode: Zener, 0.425W, 3.3V, SMD, reel,tape, SOT663, Ifmax: 200mA Min Qty: 5 | 0 |
|
$0.0575 / $0.1498 | RFQ |
|
DISTI #
BZB984-C3V3,115
|
Avnet Silica | Diode Zener Dual Common Anode 33V 5 425mW 3Pin SOT663 TR (Alt: BZB984-C3V3,115) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | Silica - 4000 |
|
Buy Now | |
|
DISTI #
BZB984-C3V3,115
|
EBV Elektronik | Diode Zener Dual Common Anode 33V 5 425mW 3Pin SOT663 TR (Alt: BZB984-C3V3,115) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for BZB984-C3V3,115
BZB984-C3V3,115 CAD Models
BZB984-C3V3,115 Part Data Attributes
|
|
BZB984-C3V3,115
Nexperia
Buy Now
Datasheet
|
Compare Parts:
BZB984-C3V3,115
Nexperia
BZB984 series - Voltage regulator double diodes@en-us SOT 3-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOT | |
| Package Description | ULTRA SMALL, PLASTIC, SMD, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | SOT663 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Nexperia | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.425 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | IEC-60134 | |
| Reference Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
